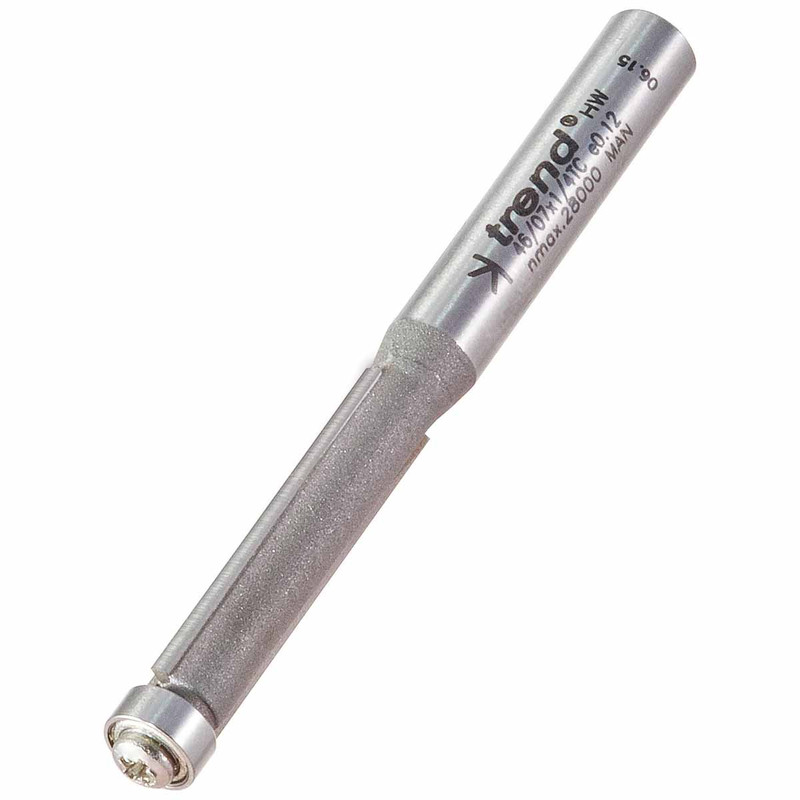

Trend 46/07X1/4TC 90 Template Profiler 6.3 x 25.4mm

Description

Trend 46/07X1/4TC 90 Template Profiler 6.3 x 25.4mm

The Trend 46/07X1/4TC 90 Template Profiler is a precision trimming router bit designed for template profiling and acrylic trimming. With a 6.3mm diameter and 25.4mm cutting length, it allows for maximum 2.0mm trimming, making it ideal for fine, detailed work. The bearing guide, which is slightly larger than the cutter diameter, ensures accurate and smooth cuts. Featuring a 1/4-inch shank, it is compatible with smaller routers, providing excellent control for flush trimming and template-guided applications.

46/07X1/4TC Features:

• Max. 2.0mm trimming.
• Ideal for acrylic trimming.

46/07X1/4TC Specification:

• D: 1/4 inch
• D: 6.3 mm
• C: 25.4 mm
• OL: 75 mm
• B: Fractionally larger than cutter dia mm
• A: 90 degrees
• Shank Diameter: 1/4 inch

What is included:

• 1x Trend 46/07X1/4TC 90 Template Profiler 6.3 x 25.4mm
