Trend H/JIG/C 2 Part Skeleton Hinge Jig

Description

Trend H/JIG/C 2 Part Skeleton Hinge Jig

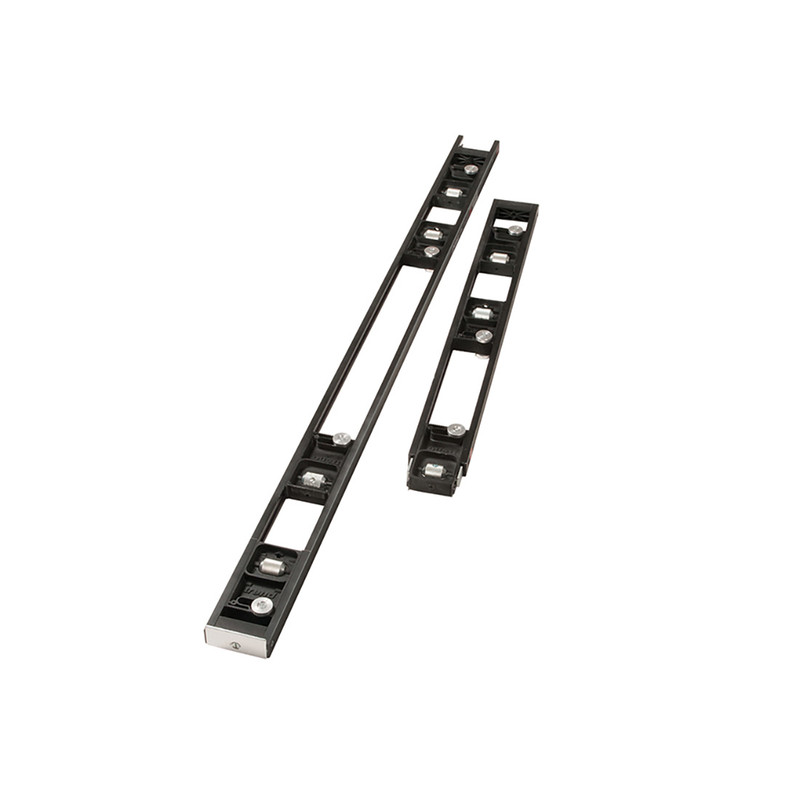

The Trend H/JIG/C 2 Part Skeleton Hinge Jig is designed for quick and accurate hinge fitting, ideal for both new and renovation door installations. It is easy to set up, requires minimal marking, and provides clean and precise recesses every time. The jig is fully adjustable, making it suitable for fire door requirements, rebated frames, and doors up to 51mm thick. It can be used with a light-duty plunge router and includes accessories like a guide bush, bradawls, and a carry case for convenience.

H/JIG/C Features:

• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Fully adjustable apertures for fire door requirements and renovation work.
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
• Ideal for fitting a new door in an old frame.
• No need for marking out in the conventional way.
• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
• Unibase may be needed.
• Patent No. GB2490139
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

H/JIG/C Specification:

Hinge sizes possible:

• Minimum length: 67mm (2.5/8in).
• Maximum length: 127mm (5in).
• Minimum width: 12.7mm (1/2in).
• Maximum width: 35mm (1.3/8in).

Door sizes possible:

• Minimum height: 1,956mm (6ft5in).
• Maximum height: 2,100mm (6ft10in).
• Minimum thickness: 16mm (5/8in).
• Maximum thickness: 51mm (2in).

What is included:

• 1x Trend H/JIG/C 2 Part Skeleton Hinge Jig
• 1x Bradalws
• 1x Guide Bush
• 1x Carry Case
