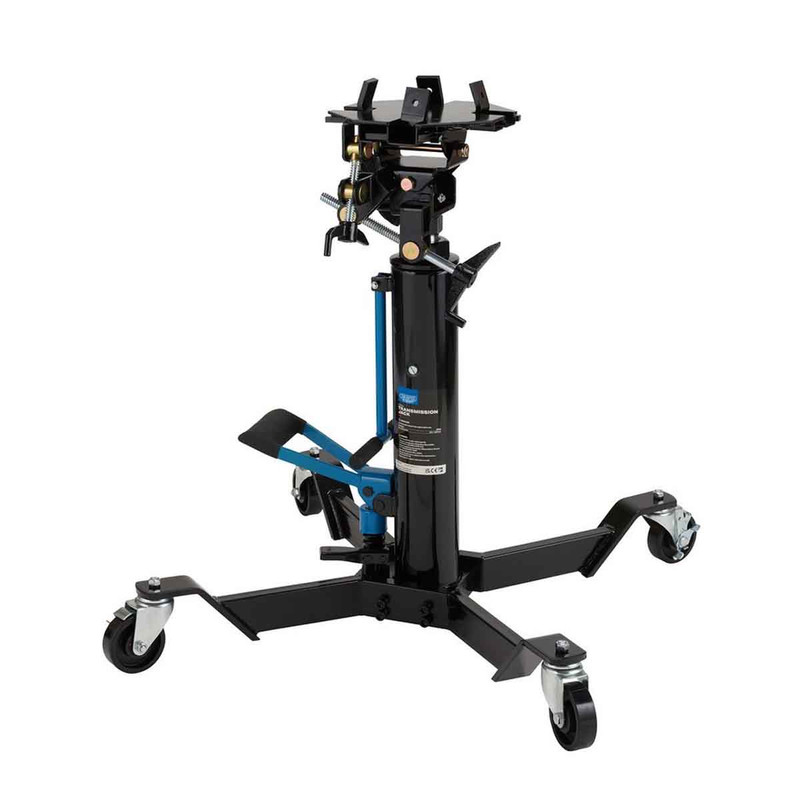

Draper Expert 08557 Evolution Vertical Transmission Jack 500kg

Description

Draper Expert 08557 Evolution Vertical Transmission Jack 500kg

This vertical gearbox jack is a component of the eye-catching Evolution collection. Reduced clearances thanks to a low entry height of the telescopic two stage ram. simple hands-free operation with a foot pedal. Saddle has full adjustment capacity to accommodate various components. tilts in all directions to help the user even more: forward, backward, and side to side. When clamping the load, ratchet saddle claws increase the working speed. For extra support, there are two non-marking ratchet straps. equipped with four huge 100mm nylon castors that are silent and smooth to operate while protecting floors. Positioning and manoeuvrability are further aided by the side-mounted T-handle. equipped with a safety valve for overload.

08557 Features:

• Part of the stylish and distinctive Evolution range
• Capacity 500kg
• Telescopic twin stage ram with a low entry height for reduced clearances
• Foot pedal for easy hands-free operation
• Fast adjusting ratchet saddle
• Forward, backward and side-to-side tilting action
• Non-marking ratchet straps for added support
• Extra-large 100mm castors prevent damage to floors and provide a quieter and smoother operation
• Side mounted T-handle aids positioning and manoeuvrability
• Fitted with overload safety valve

08557 Specification:

• Capacity: 500kg
• Minimum height: 902mm
• Maximum height stage 1: 1,387mm
• Maximum height stage 2: 1,891mm
• Saddle type: Adjustable
• Base dimensions: 290 x 290mm
• Castor diameter: 100mm
• Weight: 66kg
