Description

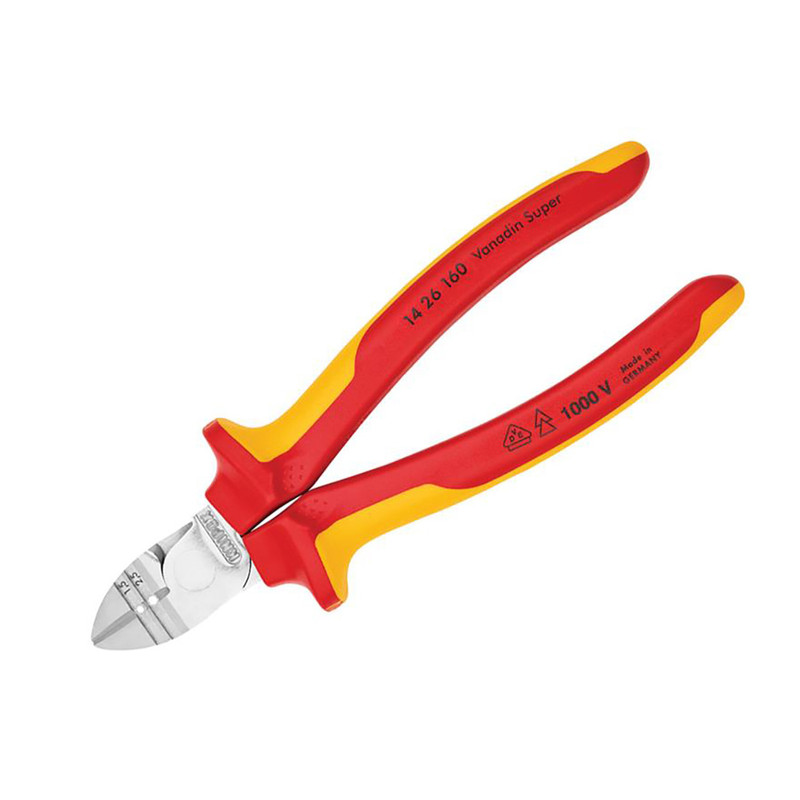

Knipex 14 26 160 VDE Diagonal Insulation Stripper & Side Cutter 160mm
The Knipex 14 26 Series VDE Side Cutters/Wire Strippers are fitted with multi-component grips, VDE tested up to 10,000V and safe for work up to 1,000V. They conform to DIN EN / IEC 60900. Made from top quality Vanadium electric special tool steel and have been forged and oil hardened. Chrome plated finish. They have flat round jaws for gripping surfaces and, with the serrated edge, will give a better grip on the workpiece. The cutting edges will give the user a good clean cut.
These Knipex pliers have precision stripping holes for single (solid) conductors of 1.5 and 2.5 mm2 and are suitable for gripping and cutting work in precision mechanics. The heavy-duty induction hardened precision blades are ideal for soft wire up to 4.0mm diameter and are hardened to approximately 60 HRC. The cutting edges are suitable for cutting medium hard wire with a diameter of up to 4.0mm and single (solid) conductors of 1.5 and 2.5 mm2 with ease.
14 26 160 Features:
- With long cutter
- High cutting capacity due to high leverage joint
- Precision stripping holes for single conductors of 1.5 and 2.5 mm²
- Convenient cutting of NYM cables up to 5 x 2.5 mm²
- Long tips for ultra fine cutting work also in confined areas
- Induction-hardened precision blades, cutting edge hardness approx. 60 HRC
- Vanadium electric steel, forged, multi stage oil-hardened
14 26 160 Specification:
- Pliers: chrome-plated
- Head: chrome-plated
- Handles: insulated with multi-component grips, VDE-tested
- Weight: 216 g
- Dimensions: 160 x 60 x 30 mm
- Standard: DIN EN 60900 IEC 60900
- REACH compliant: does not contain SVHC
- RoHS compliant: not applicable
- Cutting capacities soft wire (diameter)Cutting capacities soft wire (diameter): Ø 2.5 mm
- Cutting capacities medium hard wire (diameter)Cutting capacities medium hard wire (diameter): Ø 1.5 mm
- Stripping capacities in square millimetres: 1.5 / 2.5 mm²
- AWG: 16 / 14
- VDE tested: yes
What is included:
- 1x 14 26 160 VDE Diagonal Insulation Stripper & Side Cutter 160mm
