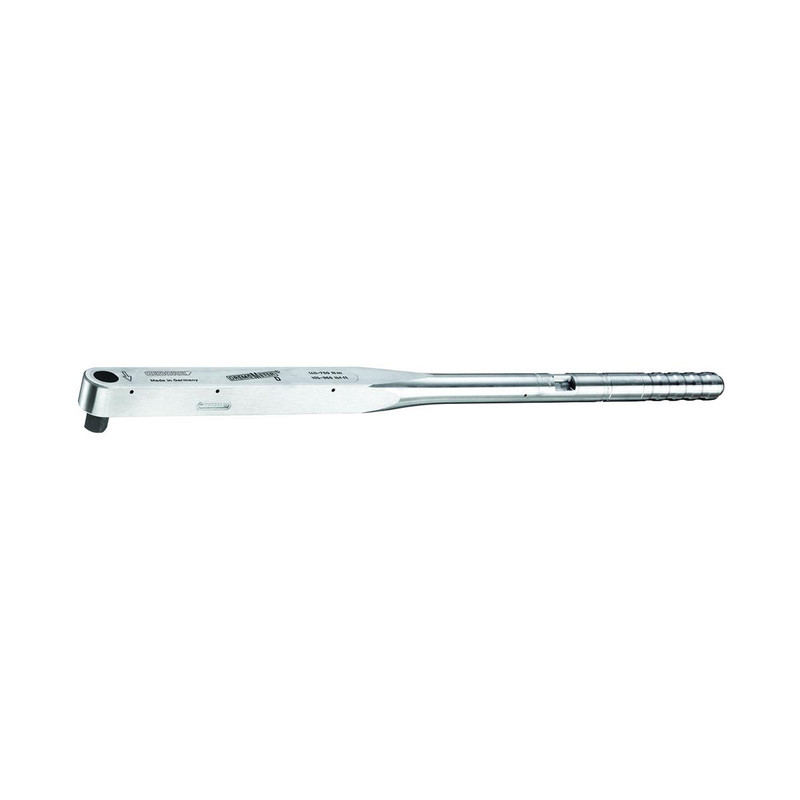

Gedore 7691500 8563-10 Torque wrench DREMOMETER 3/4" 155-760Nm

Description

Gedore 7691500 8563-10 Torque wrench DREMOMETER 3/4" 155-760Nm

Use:, Controlled screw tightening in the most common range of 155 - 760 N·m / 115 - 560 lbf·ft, For use in almost all industrial manufacturing areas, Features:, Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, 3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174, Automatic short-path actuation with tactile impulse and audible signal, Dual scale with a scale graduation of 10 N·m and 10 lbf·ft, Technical advantage/Function:, Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening, Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle, Single- and double-square drive for controlled bi-directional tightening

7691500 Specification:

• Net weight [kg] : 3,45 kg
• Total length [mm] : 812 mm
• Material : Aluminum alloy
• Total width [mm] : 45 mm
• Total height [mm] : 60 mm
• Width of head 1 [mm] : 45,0 mm
• Head height 1 [mm] : 35 mm
• Drive connector square (male) : 3/4"
• Drive connector square (male) : 20 mm
• Drive type/drive : Single square
• Torque (min.) [N·m] : 155 N·m

What is Included:

• 1x 8563-10 Torque wrench DREMOMETER 3/4" 155-760Nm
