Sealey SSC750 Static Mounted Crane 750kg

Description

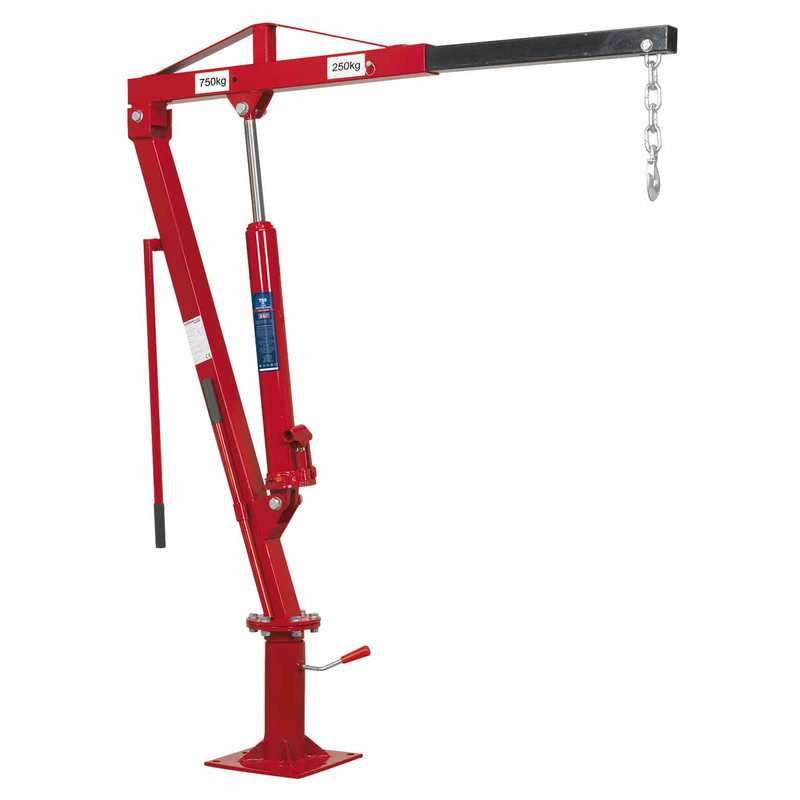

Sealey SSC750 Static Mounted Crane 750kg

Unique 360° locking swivel base for easy rotation. Mounts easily onto any strong and stable surface including loading bays, 4x4s, flatbed trucks and trailers. Heavy-duty chain and hook with safety clip. Dead man’s control release valve allows fine adjustment for safe, controlled lowering of load.

SSC750 Features:

• Heavy-duty steel.
• Powder coated finish.
• Unique 360° swivel base.
• Threaded locking arm.
• Mounts easily onto any strong and stable surface.
• Robust lifting ram.
• Max. Capacity (lifting boom retracted): 750kg
• Max. Capacity (lifting boom extended): 250kg.
• Heavy-duty chain and hook.
• Hook features safety clip.
• Model No. SSC750

SSC750 Specification:

• Model No:SSC750
• Brand:Sealey
• Height Jib Down:1530mm
• Height Legs Folded:n/a
• Height of Frame:n/a
• Length Legs Extended:n/a
• Length of Jib Position 1:825mm
• Length of Jib Position 2:1180mm
• Length of Jib Position 3:n/a
• Length of Jib Position 4:n/a
• Length of Jib Position 5:n/a
• Length:n/a
• Lifting Capacity in Position 1:750kg
• Lifting Capacity in Position 2:250kg
• Lifting Capacity in Position 3:n/a
• Lifting Capacity in Position 4:n/a
• Lifting Capacity in Position 5:n/a
• Max. Lift Ht at Jib Position 1:2060mm
• Max. Lift Ht at Jib Position 2:2350mm
• Max. Lift Ht at Jib Position 3:n/a
• Max. Lift Ht at Jib Position 4:n/a
• Max. Lift Ht at Jib Position 5:n/a
• Nett Weight:49kg
• Rear Width:n/a
• Width Front Frame:n/a
• Width Inside Front Frame:n/a

What is included:

• 1x Sealey SSC750 Static Mounted Crane 750kg
