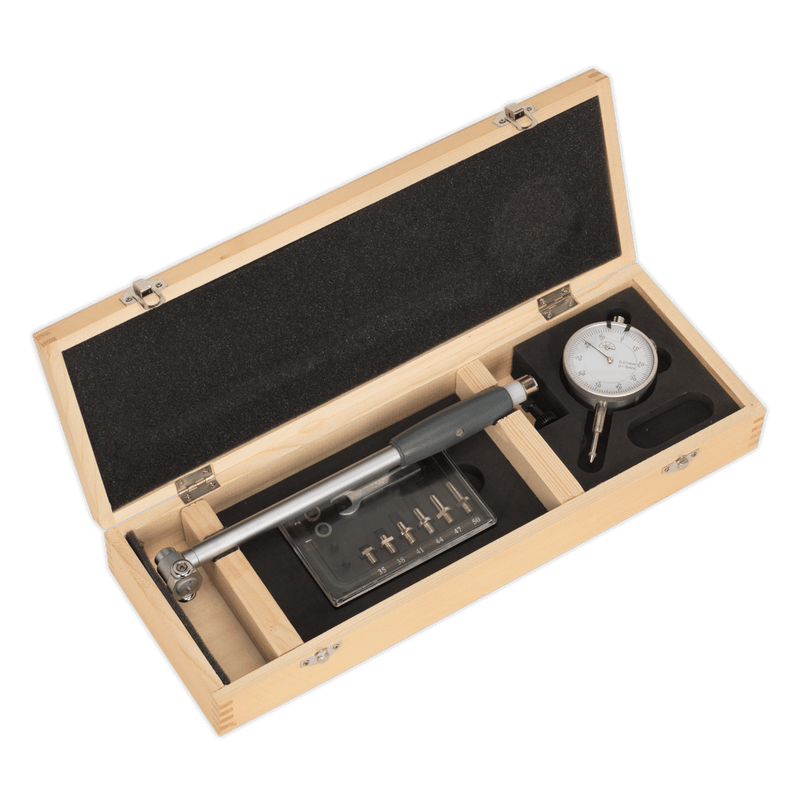

Sealey DBG509 Dial Bore Gauge 35-50mm

Description

Sealey DBG509 Dial Bore Gauge 35-50mm

Precision mechanism with Ø50mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality. Will indicate the deviation from set size by up to 5mm with an accuracy of 0.01mm. Probe body, dial indicator, anvils and spacer rings are also included. Supplied in wooden storage case.

DBG509 Features

• Precision mechanism with Ø50mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality
• Will indicate the deviation from set size by up to 5mm with an accuracy of 0
01mm
• Probe body, dial indicator, anvil and spacer rings are also included
• Supplied in wooden storage case

DBG509 Specification

• Model No DBG509
• Brand: Sealey
• Dial Diameter: Ø50mm
• Maximum Deviation Measurement with Stem: 1mm
• Maximum Deviation Measurement, Gauge: 5mm
• Nett Weight: 0.91kg
• Range: 35-50mm
• Resolution: 0.01mm

What is included:

• 1 x Sealey DBG509 Dial Bore Gauge 35-50mm
