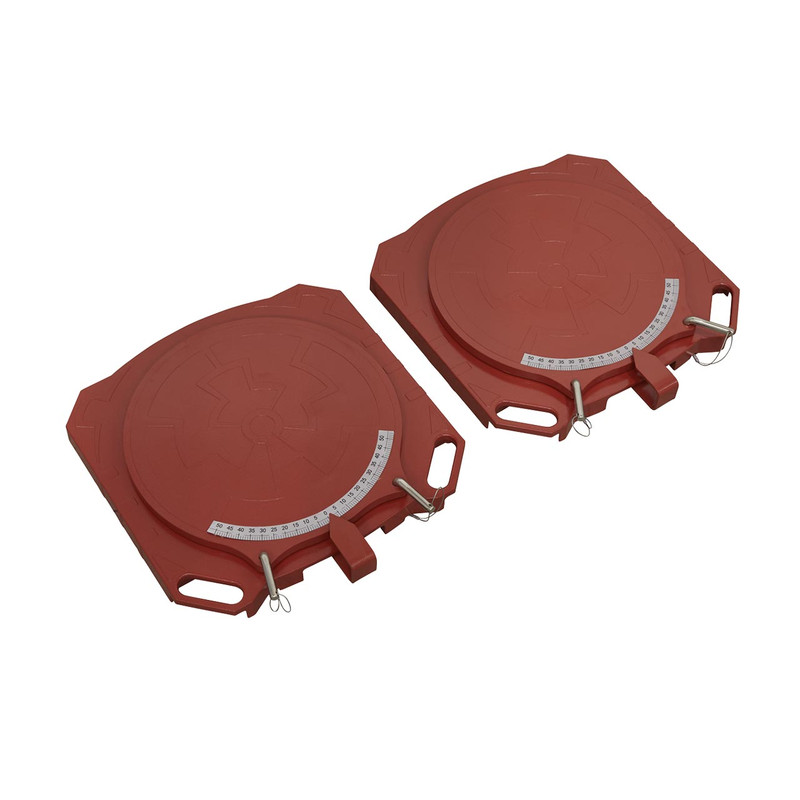

Sealey GA44 Steering Turntables - Pair

Description

Sealey GA44 Steering Turntables - Pair

Use in conjunction with Model No. GA42 Gauge Set for accurate castor and kingpin alignment. Also measures toe-in/out and full lock angles. Locking pins prevent rotation of table whilst driving vehicle on and ensure accurate angular measurements. Measures up to 55º rotation in either direction. Maximum loading 4000kg per pair.

GA44 Features

• Use in conjunction with Model No
GA42 Gauge Set for accurate castor and kingpin alignment
• Also measures steering angles
• Locking pins prevent rotation of table whilst driving vehicle on and ensure accurate angular measurements
• Measures up to 55º rotation in either direction
• Maximum loading 4000kg per pair

GA44 Specification

• Model No GA44
• Brand: Sealey
• Capacity: 4tonne pair, 2tonne each
• Nett Weight: 11kg
• Range: ±55°
• Table Diameter: 400mm
• Table Height: 50mm
• Table Movement: 62mm Front-to-back, 55mm Side-to-side

What is included:

• 1 x Sealey GA44 Steering Turntables - Pair
