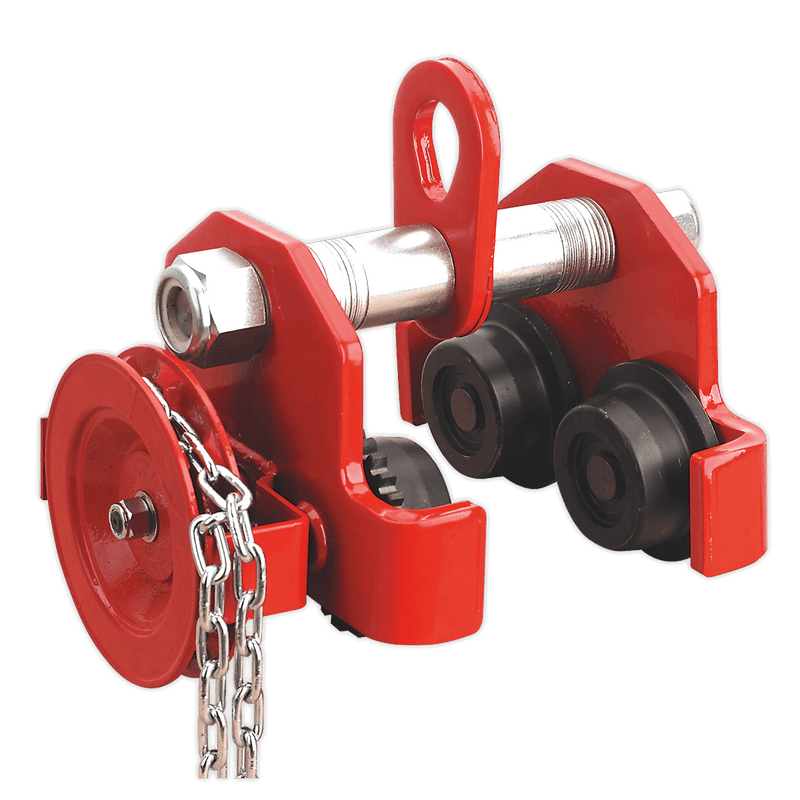

Sealey PT3000G Trolley Geared 3tonne

Description

Sealey PT3000G Trolley Geared 3tonne

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

PT3000G Features

• Suitable for use with our lever hoists or chain blocks
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer

PT3000G Specification

• Model No PT3000G
• Brand: Sealey
• Nett Weight: 41kg
• Capacity: 3000kg
• Test Load: 4500kg
• Track Width Adjustable Range: 76-203mm
• Minimum Curve Radius: 1500mm
• A: 344mm
• B: 250mm
• C: 180mm
• D: 150mm
• E: 200mm
• Weight: 41kg
• Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7mm
• Maximum Distance Between Spans: 2700mm
• Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9mm
• Maximum Distance Between Spans: 4500mm
• Refer to catalogue for diagram:

What is included:

• 1 x Sealey PT3000G Trolley Geared 3tonne
