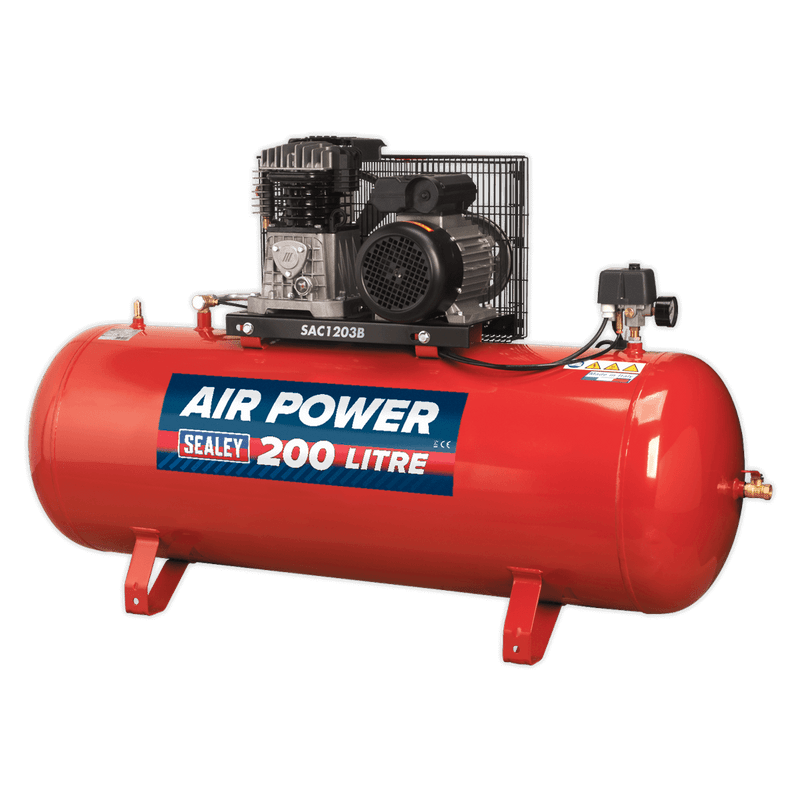

Sealey SAC1203B Compressor 200L Belt Drive 3hp with Cast Cylinders

Description

Sealey SAC1203B Compressor 200L Belt Drive 3hp with Cast Cylinders

Suitable for the professional workshop, these units are fitted with a genuine 3hp motor. Twin capacitors and a centrifugal switch aid trouble free start up on a 13Amp supply. Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.

SAC1203B Features

• Suitable for the professional workshop, these units are fitted with a genuine 3hp motor
• Twin capacitors and a centrifugal switch aid trouble free start up on a 13Amp supply
• Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling
• Supplied with full CE certification, test certificates and operating/maintenance manual

SAC1203B Specification

• Model No SAC1203B
• Air Displacement cfm(L/min): 13.4(380)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 8.8(249)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 13A
• Motor Output: 3hp
• Nett Weight: 90kg
• Outlet: 1/2"BSP Female Tap
• Phase: 1ph
• Receiver Capacity: 200L
• Size (W x D x H): 1440 x 440 x 865mm
• Speed: 1630rpm
• Supply: 230V

What is included:

• 1 x Sealey SAC1203B Compressor 200L Belt Drive 3hp with Cast Cylinders
