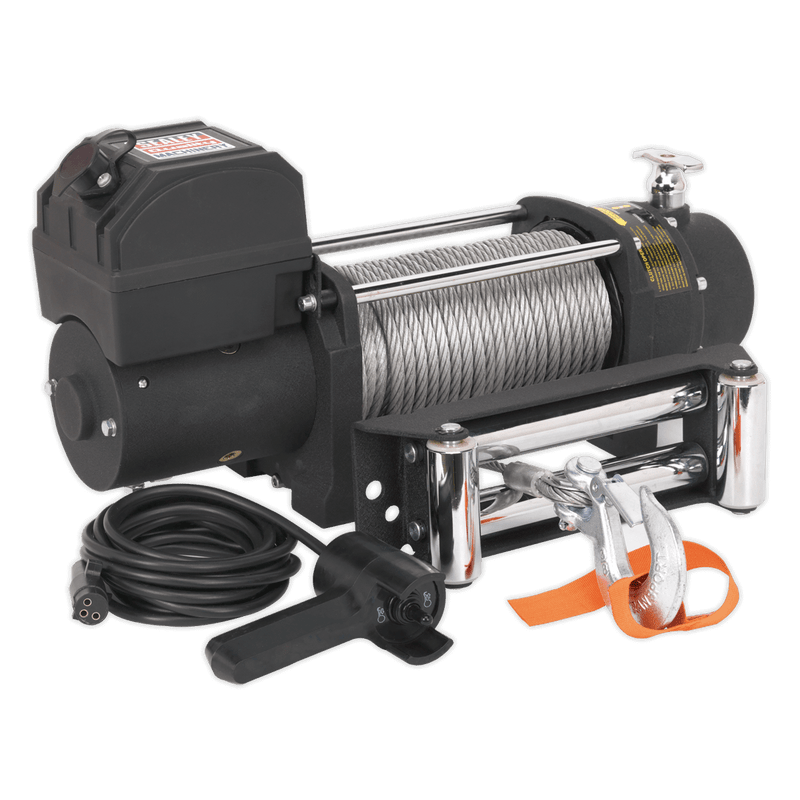

Sealey SRW4300 Self Recovery Winch 4300kg (9500lb) Line Pull 12V

Description

Sealey SRW4300 Self Recovery Winch 4300kg (9500lb) Line Pull 12V

Suitable for self recovery and off road use. Heavy-duty all-weather housing and solenoids. 3-Stage planetary gears using oversized components for greater torque, plus mechanical braking. Remote control allows power in and power out of cable from a safe distance. Ergonomic 'lift & turn' free spool clutches. High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum. IP67 rated.

SRW4300 Features

• Suitable for self recovery and off road use
• Designed and built with the toughest jobs in mind
• Check out the features: - Heavy-duty all-weather housing
- High power 196kW 12V DC series wound motor gives first class pulling power - 3-Stage planetary gears using oversized components for greater torque plus mechanical braking - Remote control allows power in and power out of cable from a safe distance - Ergonomic 'lift & turn' free spool clutches - High quality wire rope with a four-way roller fairlead for smooth and even distribution of cable onto drum
• IP67 rated

SRW4300 Specification

• Model No SRW4300
• Brand: Sealey
• Consumable Parts: SRW5450.WR, SRW5450.DR
• Current Draw: No Load - 90A, Maximum Load - 420A
• Gear Ratio: 196.6:1
• Line Pull*: 4300kg(9500lb)
• Line Speed*: No Load - 4.3m/min, Maximum Load - 1.6m/min
• Motor Power: 1.9kW
• Nett Weight: 40kg
• Note: *Performance quoted at first layer of cable on drum
• Supply: 12V
• Wire Rope Diameter: 9.2mm
• Wire Rope Length: 26m

What is included:

• 1 x Sealey SRW4300 Self Recovery Winch 4300kg (9500lb) Line Pull 12V
