Sealey TIG160 TIG/MMA Inverter Welder 160A 230V

Description

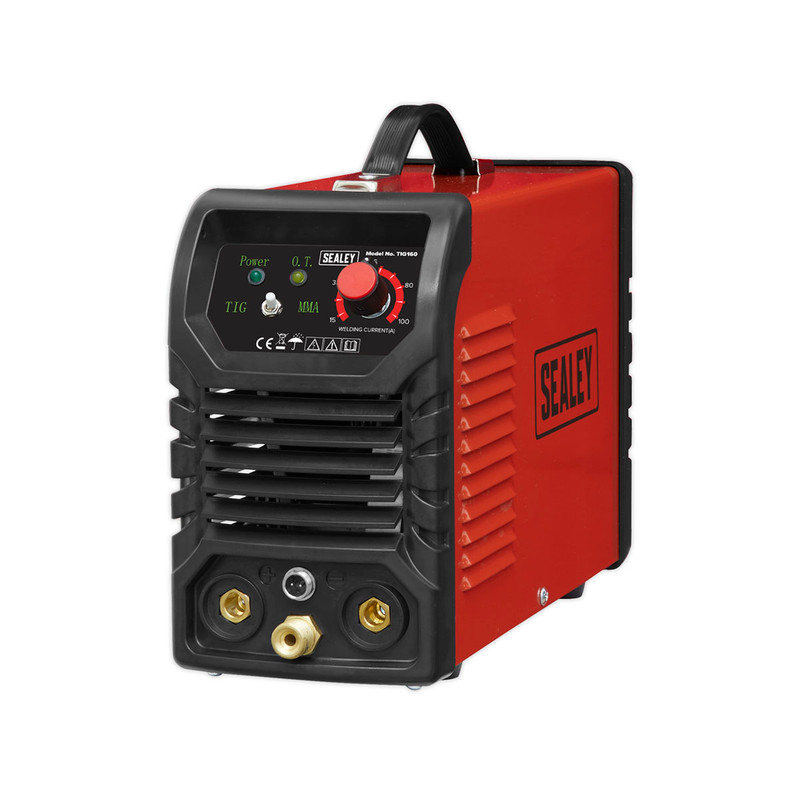

Sealey TIG160 TIG/MMA Inverter Welder 160A 230V

Fan-cooled DC power supply for TIG and arc welding applications. Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance. Portability allows the welder to be taken to the job at hand making it ideal for the mobile technician. Features quick release switch on the torch for control of gas, saving on consumption. Features hot start, anti-stick, forced air cooling, thermal cut-out protection. Suitable for arc welding using the lift start method. Supplied with MMA/TIG Accessories. Optional MMA Electrode Holder: Model No. MMA01.

TIG160 Features

• Fan-cooled DC power supply for TIG and arc welding applications
• Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance
• Portability allows the welder to be taken to the job at hand making it ideal for the mobile technician
• Features quick release switch on the torch for control of gas, saving on consumption
• Features hot start, anti-stick, forced air cooling, thermal cut-out protection
• Suitable for arc welding using the lift start method
• Supplied with MMA/TIG Accessories

TIG160 Specification

• Model No TIG160
• Brand: Sealey
• Nett Weight: 8.4kg
• Power Output: 20-160A
• Duty Cycle: 20% @ 160A 60% @ 90A 100% @ 70A
• Electrode Capacity: 1.6-4.0mm
• Absorbed Power: 5.1kW
• Supply: 230V*
• Protection: IP21S
• Weight: 7.65kg
• Accessories: Yes
• Electrode Holder (Included): Yes
• TIG Welding Torch (Included): Yes
• Note: *To achieve maximum power a 16A supply may be required.

What is included:

• 1 x Sealey TIG160 TIG/MMA Inverter Welder 160A 230V
