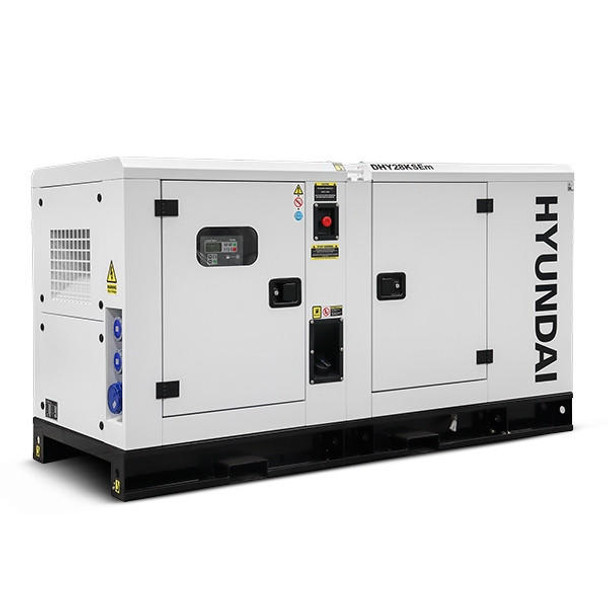

Hyundai DHY28KSEM 28kW/35kVA Single Phase Diesel Generator

Description

Hyundai DHY28KSEM 28kW/35kVA Single Phase Diesel Generator

The Hyundai DHY28KSEM is a powerful single-phase diesel generator with a maximum output of 34KVA, making it suitable for powering a large home, office, or construction site cabins. Powered by a 33hp HY4102 water-cooled diesel engine and equipped with an AVR alternator to produce clean energy, this generator can safely power sensitive electronic equipment. It can be started manually or connected to an ATS system for automatic operation during power outages. With a 93L fuel tank, it can run for 18 hours at 50% load before refuelling. Housed in a weather-proof, silenced canopy with anti-corrosion painting, this generator produces only 69dB at 7 meters. The digital control panel provides instant visibility for maintenance and the generator is compatible with budget-friendly red diesel. It comes with a 2-year Hyundai warranty for added peace of mind.

Please note that a forklift will be required for unloading.

DHY28KSEM Features:

• Single-phase diesel generator: Produces up to 35kVA of backup power and 31.25KVA of prime power
• Powered by a 1500rpm engine: Extends the lifespan of the generator
• Fitted with an AVR alternator: Able to produce a clean energy output
• Silenced generator: Housed in a weather-proof canopy, producing only 69dB at 7m
• ATS compatible: Automatically transfers power to the generator in the event of a power cut
• Large fuel tank: For extended running times
• Peace of mind: 2 year Hyundai warranty

DHY28KSEM Specifications:

• Model: DHY28KSEm
• Rated/Prime kVA*: 31.25
• Rated/Prime kW: 25
• Max/Standby kVA*: 35
• Max/Standby kW: 28
• Phase: Single
• Voltage: 230
• Connection Method(s): 2 x 230V/32A 1 x 230vV/63A Busbar
• Rated Speed (RPM): 1500
• Frequency (Hz): 50
• Max/Continuous Current: (Amps) 121.7 / 108.7
• Power Factor (Cosφ): 1
• Fuel/Power Source: Diesel
• Fuel Tank (Litres): 93
• Runtime (Hours): @ 100% Load 10
• Noise Level @ 1m: 75% load (dB) 72
• Noise Level @ 7m: 75% load (dB) 67
• Hyundai Diesel Engine Model: HY4102
• Power Output (kw): 33
• Displacement (CC): 3800
• No. of Cylinders: 4
• Displacement (Litres): 3.8
• Recommended Oil Type: SAE 15W40
• Oil Capacity (Litres): 7.5
• Oil Filter Part No.: JX0814
• Aspiration: Natural
• Fuel Regulation/Governor System: Mechanical
• Fuel Consumption (100% Load) [Litres]: 9.3
• Fuel Filter Part No.: CX0708
• Cooling: Water
• Alternator Model: 184H
• Breakers: 2P D100A 100mA
• Alternator Type: Brushless
• Voltage Regulation AVR
• Air Filter Part No. K1317
• Net Weight (kg): 1020
• Gross Weight (kg): 1020
• Dimensions L x W x H (mm): 2200 x 950 x 1250
• Battery System / Starting (V - Ah): 1x12V-60Ah
• ATS / MTS Compatible: Yes
• Control Panel: ComAp AMF9
• Accessories -
• Model EAN: 600231973588
• Warranty: 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
• Product Type: Diesel Generator
• Assembly Required?: Yes - some assembly may be required

What is Included:

• Hyundai DHY28KSEM 28kW/35kVA Single Phase Diesel Generator
