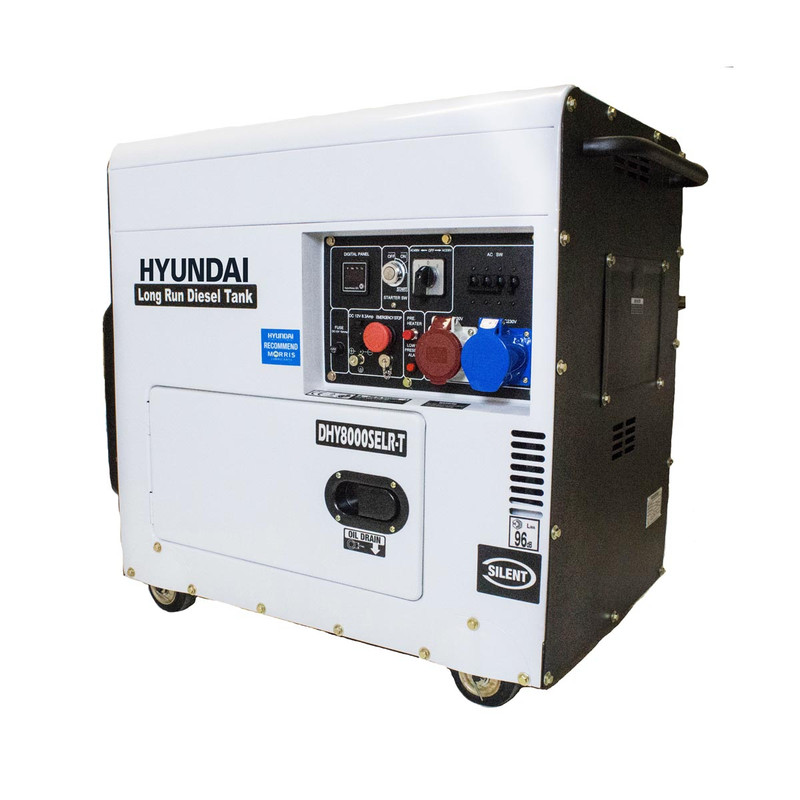

Hyundai DHY8000SELR-T 6kW/7.5kVA Multi-phase Silenced Long Run Standby Diesel Generator

Description

Hyundai DHY8000SELR-T 6kW/7.5kVA Multi-phase Silenced Long Run Standby Diesel Generator

The DHY8000SELR-T is a compact yet powerful long run standby generator from Hyundai offers either switchable 230v single phase or 400v 3-phase voltages.

The DHY8000SELR-T is ideal for workshops, garages and home use. The large 30L fuel tank increases running time to a maximum of 30 hours, powered by a 4-stroke, air-cooled 456cc single cylinder Hyundai diesel engine, the DHY8000SELR-T has a maximum output of 6kW / 7.5kVA. The control panel features 1 x 32A 230v single phase socket and 1 x 16A 400v three phase socket plus a 12v DC battery charging outlet.

An ATS (Automatic Transfer Switch) can be connected to an ATS system for maximum convenience. When the ATS module - sold separately - detects a loss of power from the mains supply it starts your generator up automatically and switches the supply from mains to generator. When the mains power resumes, it switches back to mains supply and switches the generator off. This electric start diesel generator, can be started with a two wire start function or a simple turn of the key being all that’s required to start or stop the machine when controlled manually.

Housed in silenced casing, the DHY8000SELR-T is an extremely quiet machine and will keep disturbance to a minimum for you, your family or your employees when powering your building. With a sound rating of 70dB @ 7 metres. The DHY8000SELR-T is economical to run, using roughly 1L of diesel every hour. Since the DHY8000SELR-T can run on red diesel, which is significantly cheaper than the white diesel you put into your car, running costs can be kept to a minimum.

Covered by a Hyundai 1 year standard warranty. Designed for standby use. For Continuous power supply, we recommend a 1500rpm diesel generator.

*All non inverter or converter generators except HY3400 Hirepro: Fitted with an AVR (Automatic Voltage Regulator) controlled alternator to maintain voltage as near to 230v as possible. Non AVR alternators have a large fluctuation in voltage and can damage sensitive electronic equipment. If you require a portable generator to replicate the mains supply, it is recommended that a pure sine wave inverter generator is used.

DHY8000SELR-T Features:

• Equipped with a 30L fuel tank for an increased running time of up to 30 hours.
• Multi-phase - Single & Three Phase capabilities, ideal for garages and workshops.
• Powered by a 4-stroke, air-cooled Hyundai diesel engine.
• Produces a maximum output of 6kW / 7.5kVA.
• Uses ATS capabilities to automatically start and shutdown during a power cut. ATS sold separately.
• Housed in a silenced case with a sound rating of just 70dB @ 7 metres.
• Covered by a Hyundai 1 year standard warranty.
• Full UK service and parts operation to maintain your generator for years to come.

DHY8000SELR-T Specification:

• Box Dimensions L x W x H (mm): 920 x 520 x 740
• Cooling Method: Air
• Displacement (cc): 456
• Engine Type: Single Cylinder - Forced Air Cooled
• Frequency (Hz): 50
• Fuel Type Diesel: (Red or white)
• Number of Cylinders: 1
• Oil Capacity (L): 1.75
• Power Output (hp): 12
• Rated kVA: 6.9
• Rated kW: 5.5
• Speed (RPM): 3000
• Starting System Method(s): Electric Key start
• Voltage(s) - VAC: 230v single phase /400v 3-phase

What is Included:

• 1 x Hyundai DHY8000SELR-T 6kW/7.5kVA Multi-phase Silenced Long Run Standby Diesel Generator
• 1 x 12v DC Charging Cable
• 2 x Manual Start Keys
• Fuel Filter
• 1 x 16A 3-phase plug
• 1 x 32A 230v plug
