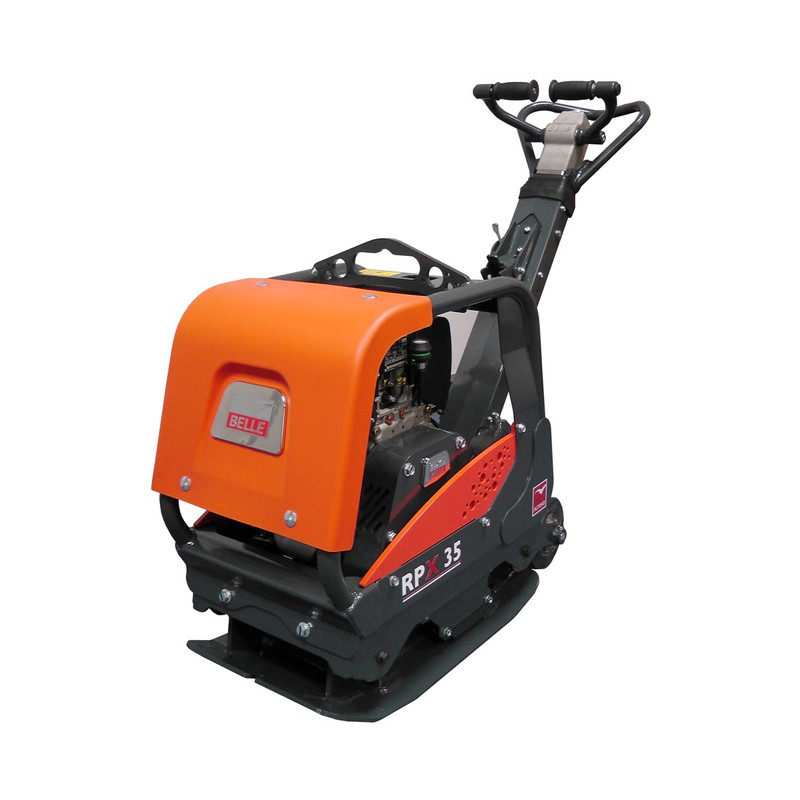

Belle RPX 35/40D Hatz Diesel Reversible Plate Compactor

Description

Belle RPX 35/40D Hatz Diesel Reversible Plate Compactor

Heavy duty range of reversible plate compactors built to withstand the harshest site conditions. With improved base plate design for excellent gradability & increased travel speeds and a higher compaction force for shorter usage times and deeper compaction. Complete with integrated Wheel Kit for easy transportation these are the perfect solution for the rental market.

161.9.200 Features:

• Engine/Motor Power : 4.2 - 3.1 (Hp) - (kW)
• Plate Size (W x L) : 400 x 700 (mm)
• Static Pressure : 1436 (Kg/m2)
• Max Gradient : 20 (°)
• Centrifugal Force : 35 (kN)
• Frequency : 81 (Hz)
• Travel Speed : 27 (m/min)
• Vibration Level : 2.4 (m/sec2)

161.9.200 Specification:

• Engine/Motor Power : 4.2 - 3.1 (Hp) - (kW)
• Plate Size (W x L) : 400 x 700 (mm)
• Static Pressure : 1436 (Kg/m2)
• Max Gradient : 20 (°)
• Centrifugal Force : 35 (kN)
• Frequency : 81 (Hz)
• Travel Speed : 27 (m/min)
• Vibration Level : 2.4 (m/sec2)

What is Included:

• 1x Belle 161.9.200 RPX 35/40D 1B20 Hatz Diesel Reversible Plate Compactor
