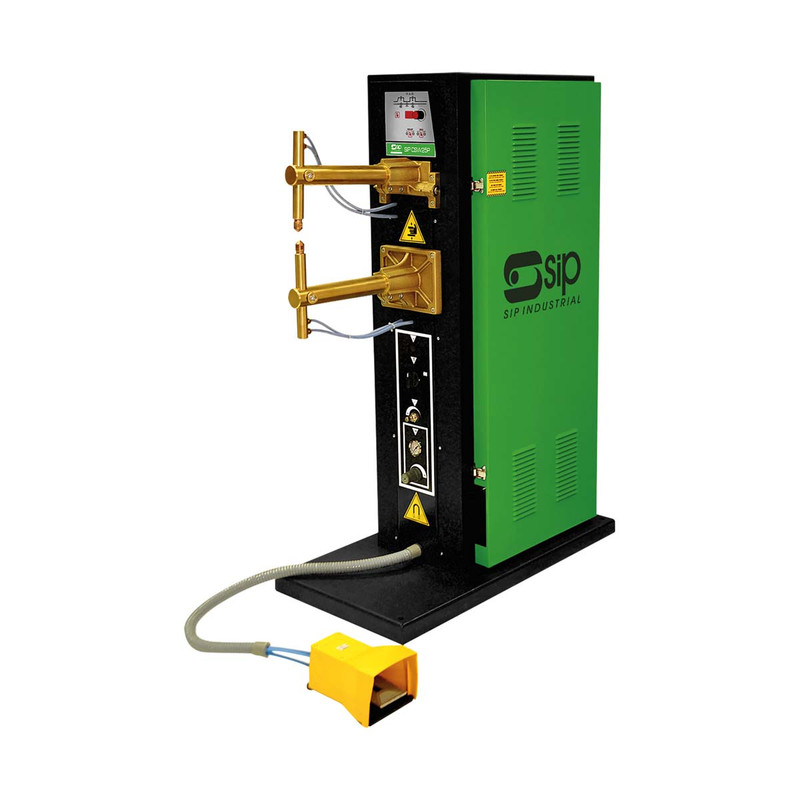

SIP 25113 CSW25P Pneumatic Column Spot Welder

Description

SIP 25113 CSW25P Pneumatic Column Spot Welder

The SIP CSW25P Pneumatic Column Spot Welder offers easy spot welding in a variety of demanding applications, utilising single or double spot welding modes for use on oxidised or coated steels, and a 2-stage pneumatic foot pedal for precise positioning. Perfect for a variety of trade and professional applications.

25113 Features:

• 340mm to 480mm standard welding arm length
• Digital display for welding current and welding time
• Adjustable air regulator with dampener for easy control
• 2-stage pneumatic foot pedal; precise work positioning
• Fitted with high-quality watercooling hoses

25113 Specifications:

• ITEM NO. 25113
• Input Supply: 400v (50A) 1-PHASE
• Max. Welding Power: 50kVA
• Duty Cycle: 25kVA @ 50%
• Mild Steel Capacity: 5+5mm (flat) / 20+20mm (bar)
• Stainless Steel Capacity: 3+3mm (flat) / 12+12mm (bar)
• No-Load Voltage: 1.4v
• Short Circuit Current: 13.8KA
• Max. Air Pressure: 70psi (4.8bar)
• Water Flow Rate: 4ltr/min
• Max. Electrode Force: 204kgF @ 340mm / 140kgF @ 450mm
• Distance Between Arms: 200mm (standard) / 320mm (optional)
• Arm Length: 340mm to 480mm (standard)
• 200mm to 1000mm (optional)
• Electrode Throat Size: 100mm
• Electrode Holder Diameter: Ø 25mm
• Electrode Diameter: Ø 20mm
• Arm Diameter: Ø 45mm
• Noise Level: 70dB(A)

What is Included:

• 1x SIP 25113 CSW25P Pneumatic Column Spot Welder
