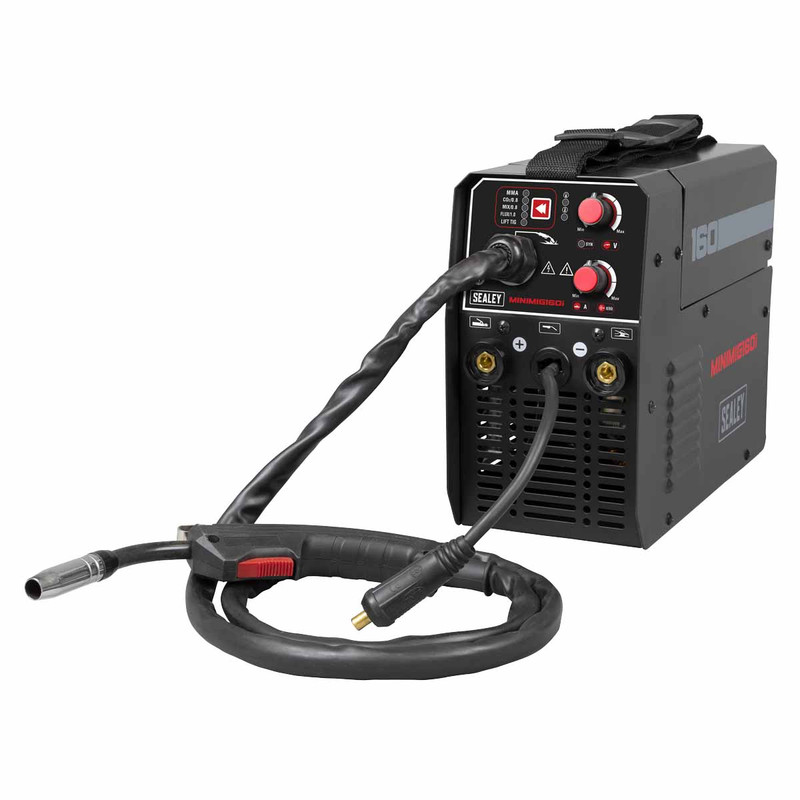

Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V

Description

Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A. Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians. Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.

MINIMIG160i Features:

• Igbt inverter technology - igbt inverter fan-cooled dc power supply for mig/tig and mma/arc welding applications up to 160a.
• 3-in-1 function - multi-functional welder bringing together mig/tig and mma application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
• highly portable - ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand.
• featuring - hot start, anti-stick, forced air cooling and thermal cut out protection.
• welding capability - unit can mig weld using 1kg ø0.8/0.9/1mm solid wire and ø0.8/0.9mm flux cored mig wire, mma/arc weld ø1.6 up to ø4mm electrode.
• supplied with - supplied with fixed non-live mig torch, 1.4m earth cable/clamp, 1.6m electrode holder.
• duty cycle – mig - 60% @ 160a, tig - 60% @ 160a, mma/arc - 60% @ 160a.

MINIMIG160i Specification:

• Model No MINIMIG160i
• Brand: Sealey
• Nett Weight: 6.9kg
• Welding Current: 10-160A
• Duty Cycle MIG: 60% @ 160A, 100% @ 124A
• Duty Cycle MMA/ARC: 60% @ 160A, 100% @ 124A
• Duty Cycle TIG: 60% @ 160A, 100% @ 124A
• Wire Capacity: 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire
• Electrode Capacity: 1.6-4mm
• Absorbed Power: 4.4kW
• Supply: 230V 16A*
• Insulation Class: H
• IP Rating: IP21S
• Note * To achieve maximum power a 16A supply may be required.

What is included:

• 1x Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
