SIP 05689 WELDMATE® PRO Inverter Plasma Cutter 80A

Description

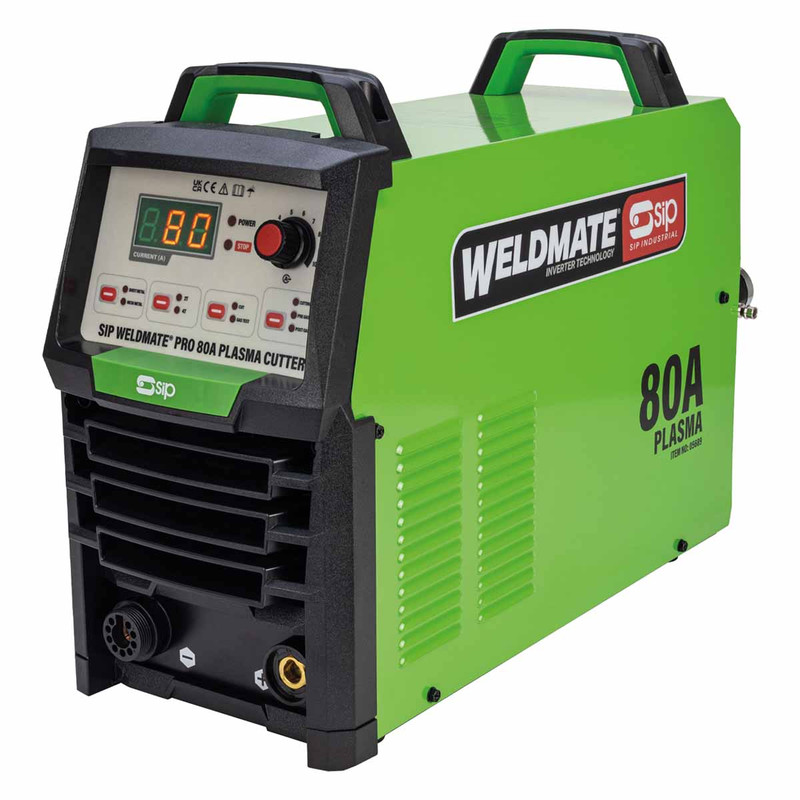

SIP 05689 WELDMATE® PRO Inverter Plasma Cutter 80A

The SIP WELDMATE® PRO 80A Inverter Plasma Cutter is a powerful and versatile inverter plasma cutter designed for use in professional fabrication, engineering workshops and agricultural settings. Easy to operate and safer than cutting with a naked flame, this powerful and compact inverter plasma cutter has a cutting capacity up to 30mm thickness. It also features a sheet and mesh metal material type selector for added versatility and an adjustable timer for pre and post air for cleaner cutting performance. Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this plasma cutter features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

05689 Features:

• Cutting capacity of 20mm quality and 30mm severance from 400v/16A supply
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Adjustable air regulator to enable consistent supply of compressed air
• Includes separate 3mtr plasma torch with Euro connector and strike-up guard
• Material type selector for added versatility when cutting sheet or mesh metals
• Adjustable timer for pre/post air to prevent overheating of torch consumables

05689 Specifications:

• Input Supply: 400v (16A)
• Output Current: 30A - 80A
• Output Voltage: 92v - 112v: 320v DC Open Circuit Volts
• Duty Cycle @ 20°C: 80A @ 100%
• Cutting Thickness: 20mm (quality) / 30mm (severance)
• Air Pressure: 87psi (6bar)
• Protection / Insulation: IP21 / H

What is included:

• 1x SIP WELDMATE® PRO 80A Inverter Plasma Cutter (400v/16A)
• 1x 3mtr plasma torch (supplied with additional electrodes, nozzles, ceramic shields and torch spanner)
• 1x plasma torch straight cutting guide
• 1x adjustable air regulator
• 1x 3mtr earth lead.
