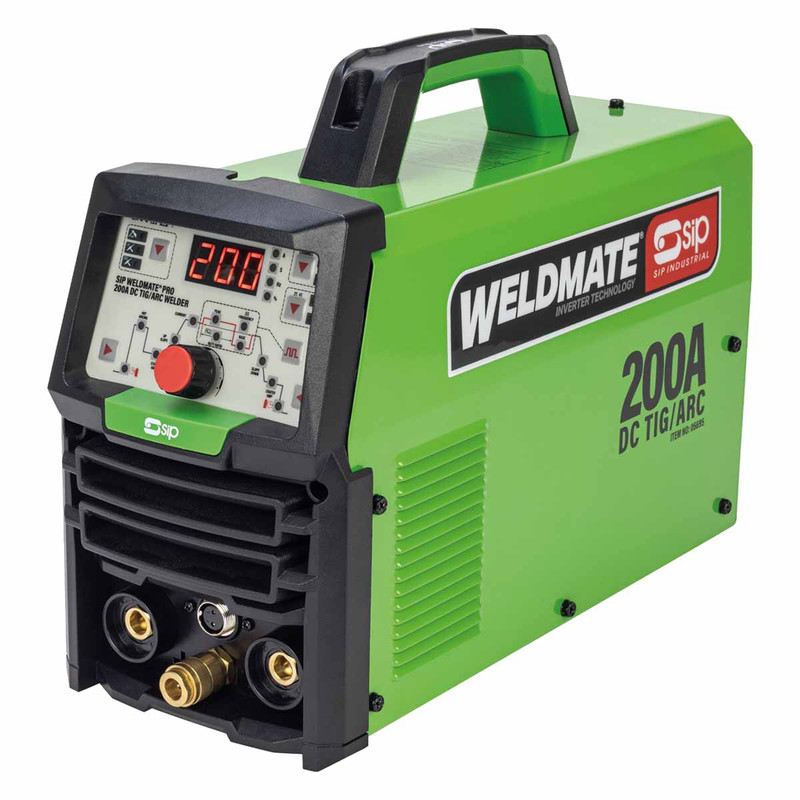

SIP 05695 WELDMATE® PRO DC TIG/ARC Inverter Welder 200A

Description

SIP 05695 WELDMATE® PRO DC TIG/ARC Inverter Welder 200A

The SIP WELDMATE® PRO 200A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops and sheet metal applications. Powerful, compact and lightweight, this inverter welder also features and 8-stage TIG welding sequence with parameters for 'Pre' and 'Post Gas' to ensure a clean and high-quality weld, while Pulse TIG parameters offer even greater welding power and arc control for skilled professional applications. Fully compliant wth Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

05695 Features:

• Dual process TIG/ARC DC welder for greater versatility at high duty cycles
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Features an adjustable 8-stage TIG welding sequence with Pulse TIG parameters
• Pre/post gas setting to prevent oxidation for a clean and higher quality weld
• Infinitely variable dial with LED display offer smoother output adjustment
• Compact and lightweight design for easy work area movement

05695 Specifications:

• Input Supply: 230v (16A)
• Output Current: 10A - 200A (TIG) / 10A - 160A (MMA)
• Output Voltage: 10.4v - 18v: 70v DC Open Circuit Volts (TIG) / 20.4v - 26.4v: 70v DC Open Circuit Volts (MMA)
• Duty Cycle @ 20°C: 200A @ 30% (TIG) / 200A @ 30% (MMA)
• Welding Material Thickness: 0.5mm - 7mm (mild steel) (TIG) / 1.5mm - 8mm (mild steel) (MMA)
• Protection / Insulation F

What is included:

• 1x SIP WELDMATE® PRO DC 200A TIG/ARC Inverter Welder (230v/16A)
• 1x 3mtr TIG torch with consumables (2x tungsten electrodes, collets, collet bodies, ceramic nozzles and back caps)
• 1x 3mtr electrode lead
• 1x 3mtr earth lead
• 1x welding hammer/brush.
