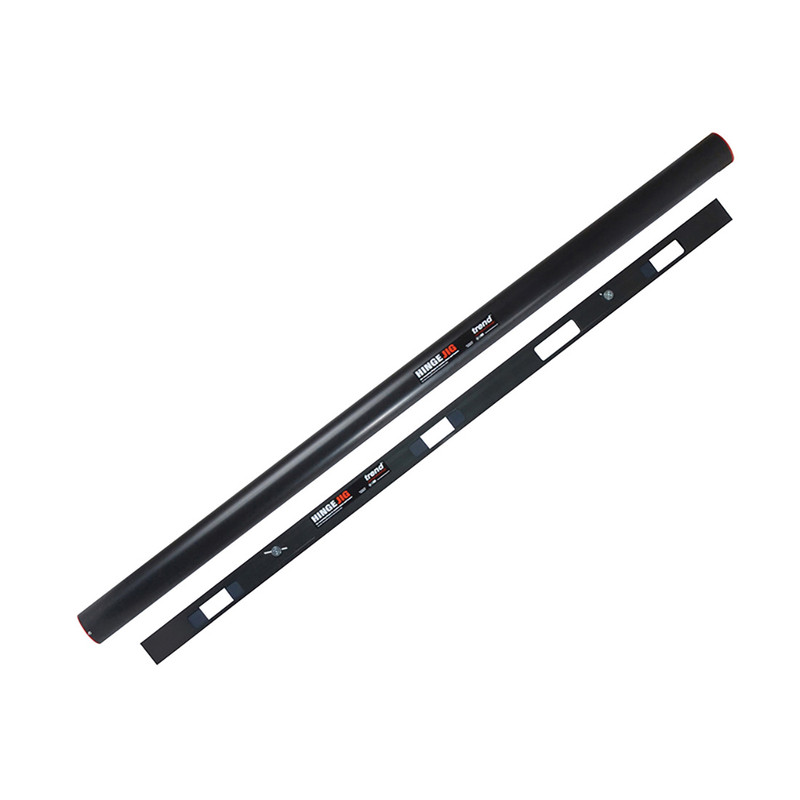

Trend HINGE/JIG Hinge Recessing Jig
The Trend HINGE/JIG Hinge Recessing Jig is a time-saving, precision tool designed for accurately cutting hinge recesses in timber-based doors. With minimal setup time, it increases productivity in both on-site work and joinery shops. The jig features four apertures to meet fire door requirements and eliminates the need for conventional marking out, as the hinge itself is used as the pattern. It ensures clean, accurate recesses every time and is suitable for inside and outside doors, rebated frames, and fixed stops up to 25mm thick. Designed for use with a light-duty plunge router (1/4-inch collet), it requires a long-reach 12mm cutter for best results. The angled position slots prevent movement, ensuring precise cuts. Additional accessories like the Unibase may be required for compatibility with certain routers.
HINGE/JIG Features:
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
- Used on-site & in joinery shops to increase productivity with excellent results.
- Four apertures for fire door requirements.
- No need for marking out in the conventional way.
- Quick & simple to set-up as the hinge is used as the pattern.
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
- Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
- Use with a light duty plunge router with 1/4 inch collet.
- Long reach router cutter required, 12mm diameter with 70mm overall length.
- Angled position slots to prevent creep.
- Unibase may be needed.
- T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
HINGE/JIG Specification:
Hinge sizes
- Length min.: 2 5/8" (67 mm)
- Length max.: 5" (127 mm)
- Width min.: 3/8" (9.5 mm)
- Width max.: 1 3/8" (35 mm)
- Width max. in 35mm rebate: 20 mm
- Width max. in 44mm rebate: 30 mm
Door sizes possible
- Height min.: 6' 5" (1955 mm)
- Height max.: 2100 mm*
- Thickness min.: 5/8" (16 mm)
- Weight: 2.9 kg
- Jig overall length: 1957 mm
- Plate thickness: 2 mm
- Fixed stop max. thickness: 25 mm**
What is included:
- 1x Trend HINGE/JIG Hinge Recessing Jig
