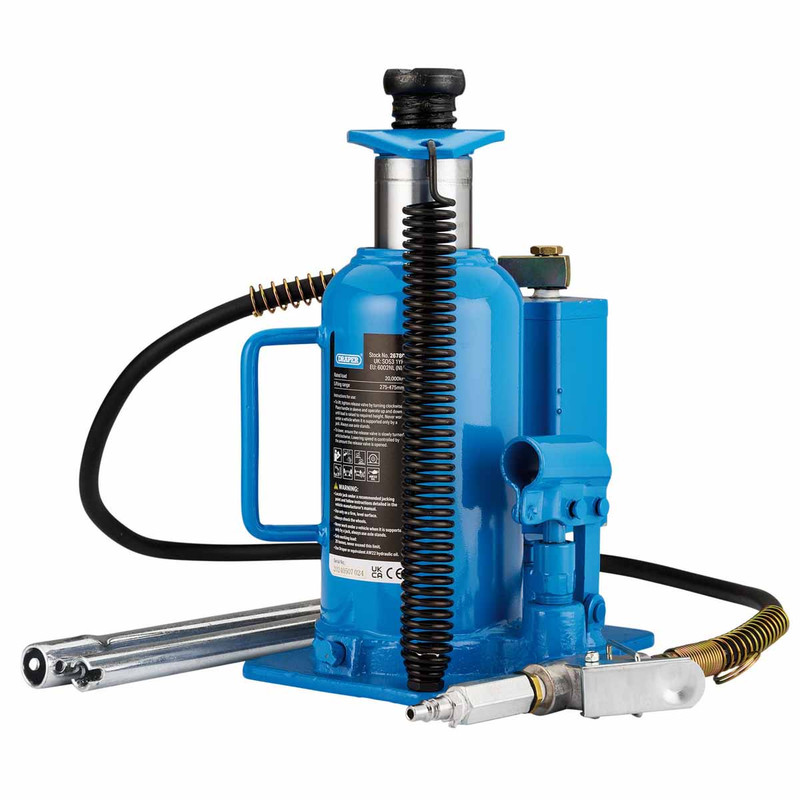

Draper 26780 Air Bottle Jack, 20 Tonne

Description

Draper 26780 Air Bottle Jack, 20 Tonne

This air bottle jack can effortlessly handle heavy loads up to 20 tonnes. It has a minimum height of 245mm and a maximum height of 474mm, making it versatile and suitable for various lifting needs. The extendable screw reaches up to 80mm, allowing for precise adjustments. You can connect the air compressor for pneumatic lifting and control it by using the air valve, which makes heavy lifting effortless and improves work efficiency. The bottle jack can also be operated hydraulically by hand using the two-piece handle for extra versatility. It is built with a robust welded base and reservoir to improve strength and minimise leaks. Additionally, there is a built-in safety valve to prevent overloading. The jack also features an integrated carry handle for easy transportation and storage.

26780 Features:

• 245-474mm lifting range for versatile applications.
• Powerful air compressor for efficient pneumatic lifting.
• Secure manual pump operation using a two-piece handle.
• Robust welded base and reservoir to improve strength and minimize leaks.
• Internal safety overload valve for added protection.
• Integrated carry handle for ease of transportation and storage.
• Manufactured to EN 1494 Specification.

26780 Specification:

• Capacity: 20 Tonne
• Lifting range: 245-475mm
• Screw extension: 80mm
• Operating air pressure: 0.7-1mpa
• Saddle diameter: 45mm
• Air coupler: 1/4" BSP
• Hydraulic lift: 150mm
• Ram diameter: 72mm
• Jack handle length: 650mm
• Base size: 220 x 175mm
• Weight: 16kg

What is included:

• 1 x Air Bottle Jack, 20 Tonne
