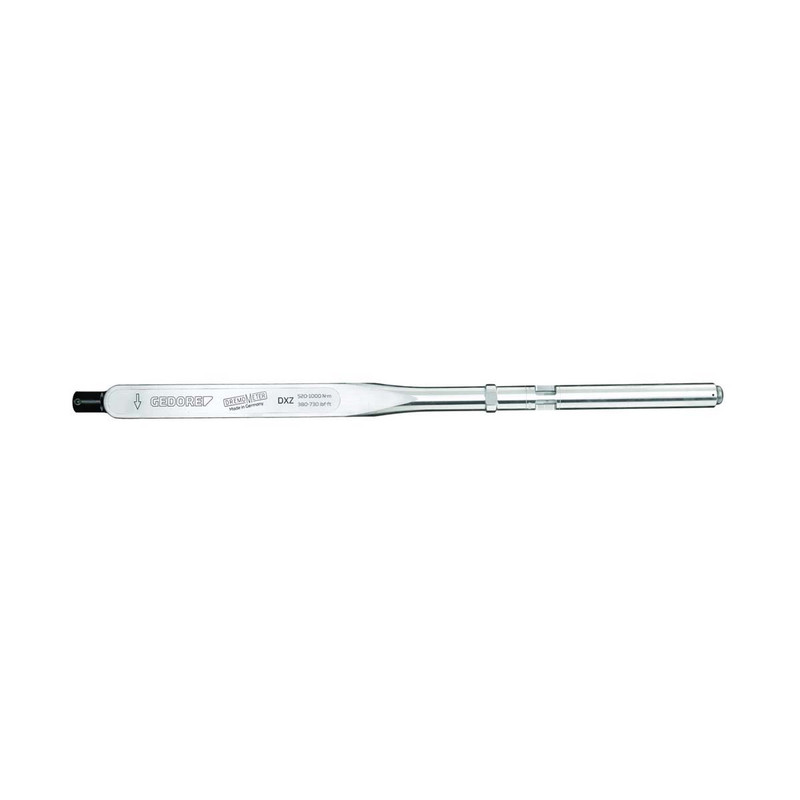

Gedore 1251341 8471-01 Torque wrench DREMOMETER DXZ 28Z 520-1000Nm

Description

Gedore 1251341 8471-01 Torque wrench DREMOMETER DXZ 28Z 520-1000Nm

• Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
• Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
• Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
• Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube)
• Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
• Large drive cross-section transfers maximum torques
• Extremely low wear attributable to reduced forces in a lever mechanism
• Forged lever chain from our group own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• With certificate acc. to DIN EN ISO 6789-2:2017, traceable via in-house DAkkS laboratory to national standards

1251341 Specification:

• Net weight [g]: 5500 g
• Contents (Qty of pieces): 1 tlg.
• Total length [mm]: 1.319 mm
• Torque (min.) [N·m]: 520 N·m
• Torque (max.) [N·m]: 1000 N·m
• Torque (min.) [lbf·ft]: 380 lbf·ft
• Torque (max.) [lbf·ft]: 730 lbf·ft
• Total width [mm]: 45 mm
• Total height [mm]: 35 mm
• Material: Aluminum alloy

What is included:

• 1 x Gedore 1251341 8471-01 Torque wrench DREMOMETER DXZ 28Z 520-1000Nm
