Product Description

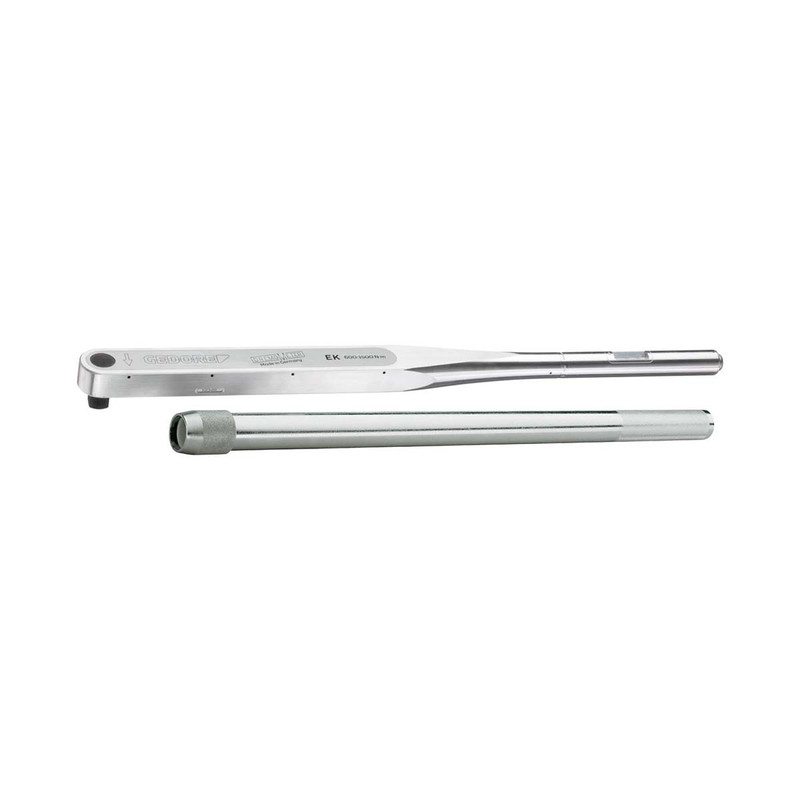

Gedore 2311267 8581-01 Torque Wrench DREMOMETER EK 1" 600-1500Nm

• Controlled screw tightening in the range from 600 - 1500 N·m
• For use in almost all industrial manufacturing areas
• Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
• 1" square drive with pin-locking mechanism DIN 3120 - B 25, ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Single scale with a scale graduation of 25 N·m
• Technical advantage/Function:
• Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
• Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Double-lever mechanism for maximum cutting performance
• Forged lever chain from our group own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening

2311267 Specification:

• Net weight [g]: 10800 g
• Drive connector square male: 1"
• Contents (Qty of pieces): 1 tlg.
• Total length [mm]: 932 mm
• Torque (min.) [N·m]: 600 N·m
• Torque (max.) [N·m]: 1500 N·m
• Total width [mm]: 60 mm
• Total height [mm]: 71 mm
• Material: Aluminum alloy
• Drive connector square male: 25 mm

What is included:

• 1 x Gedore 2311267 8581-01 Torque wrench DREMOMETER EK 1" 600-1500Nm
