Product Description

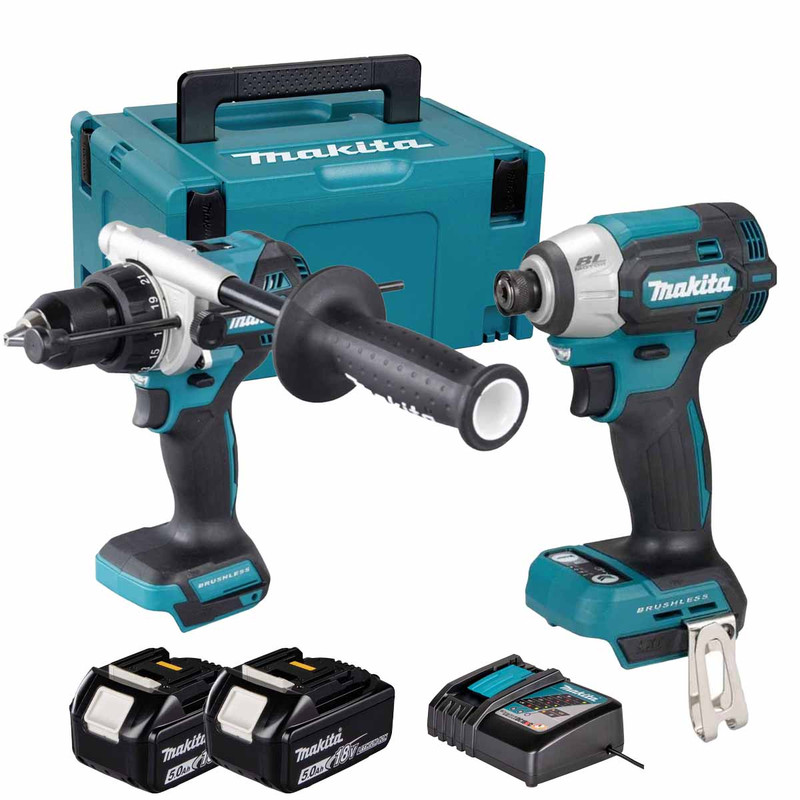

Makita DLX2566TJ 18V LXT Combo Kit with 2x 5.0Ah Batteries and Charger

The Makita DLX2566TJ 18V LXT Brushless Twin Kit combines two high-performance cordless tools for drilling, driving and fastening applications, making it an ideal solution for professional tradespeople. The kit includes the compact DTD201Z Impact Driver, which delivers up to 210Nm of fastening torque with four-speed control settings, alongside the powerful DHP492Z Brushless Combi Drill, capable of producing up to 141Nm of torque and drilling into wood, steel and masonry with ease. Both tools feature brushless motor technology for increased efficiency, longer runtime and reduced maintenance.

Supplied with two 5.0Ah LXT lithium-ion batteries, a fast charger and a Makpac Type 3 stacking case, this kit provides excellent portability and all-day productivity on site. Features such as LED work lights, electronic brakes, battery protection systems and ergonomic rubberised grips enhance user comfort, safety and precision. Whether tackling heavy-duty drilling, impact fastening or general construction work, the DLX2566TJ offers a versatile and reliable cordless solution within Makita's extensive 18V LXT platform.

DTD201Z 18V LXT Impact Driver:

• Low power consumption thanks to brushless motor
• Quick mount for 1/4 "screwdriver
• LED light illuminates the work site
• Variable speed control dial enables user to match the speed to the application for greater versatility
• Electric brake for maximum productivity and increased operator safety
• The rubber coating on the handle ensures a firm working grip
• Battery protection system automatically shuts off power when the battery level is low
• Nominal Battery Voltage: 18 V
• Voltage LXT: Yes
• Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
• No load speed: 0 - 1100 / 2100 / 3200 / 3700 min⁻¹
• Max Fastening Torque Impact Drill: 20 / 150 / 190 / 210 Nm
• Impacts per Minute (IPM): 0 - 2000 / 3600 / 4200 / 4400 min⁻¹
• Tightening Capacity Standard Bolt: M5 - M16
• Capacity machine screw: M4 - M8
• Tightening Capacity High Tensile Bolt: M5 - M14
• Driving Shank: 1/4 "
• Sound Power Level (LWA): 105 dB(A)
• Sound Pressure Level (LpA): 97 dB(A)
• Noise Uncertainty (K Factor): 3 dB(A)
• Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool: 9,9 m/s²
• Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool: 1,5 m/s²
• Product Dimensions (L x W x H): 121 x 81 x 246 mm
• Tool weight with battery: 1,3 - 2,3 kg
• Product net weight: 0,98 kg

DHP492Z 18V LXT Brushless Combi Drill:

• Brushless motor technology maximises efficiency and extends tool life for demanding trade use
• 18V LXT cordless platform delivers powerful performance with full compatibility across Makita LXT batteries
• Two-speed mechanical gearbox (0-550 / 0-2,100 min¹) optimises control for both high-torque driving and high-speed drilling
• Impressive 141 Nm maximum torque tackles heavy-duty fastening and drilling applications in tough materials
• Hammer, drill and screwdriving modes with up to 31,500 impacts per minute for versatile combi drill capability
• 21-stage torque adjustment plus drill setting allows precise screwdriving to protect fixings and work surfaces
• All-metal gear construction enhances durability for regular site work and professional power tool use
• Twin LED work lights illuminate the drilling area, improving accuracy in dark or confined spaces
• Battery protection and electronic overload protection help safeguard the battery, motor and user during intensive tasks
• Compact 180 mm body with ergonomic rubber-moulded grip and side handle improves balance and comfort over extended periods
• Battery platform: 18V LXT
• Battery chemistry: Li-ion
• Motor type: Brushless
• Nominal battery voltage: 18 V
• No load speed (low): 0-550 min¹
• No load speed (high): 0-2,100 min¹
• Impacts per minute (low): 0-8,250 min¹
• Impacts per minute (high): 0-31,500 min¹
• Max fastening torque (hard): 130 Nm
• Max fastening torque (soft): 65 Nm
• Max torque: 141 Nm
• Torque settings: 21
• Max drilling diameter in masonry: 16 mm
• Max drilling diameter in steel: 13 mm
• Drilling capacity in wood (auger bit): 50 mm
• Drilling capacity in wood (self-feed bit): 76 mm
• Drilling capacity with flat bit: 40 mm
• Drilling capacity with hole saw: 152 mm
• Drill chuck capacity: 1.5-13 mm
• Driving shank: 1/2"-20UNF
• Electronic brake: Yes
• Vibration level, drilling into metal: ? 2.5 m/s²
• Vibration uncertainty K, drilling into metal: 1.5 m/s²
• Vibration level, impact drilling into concrete: 8.6 m/s²
• Vibration uncertainty K, impact drilling into concrete: 1.5 m/s²
• Sound power level (LWA): 95 dB(A)
• Sound pressure level (LpA): 87 dB(A)
• Noise uncertainty K: 3 dB(A)
• Product dimensions (L x W x H): 180 x 81 x 265 mm
• Product net weight: 1.7 kg
• Tool weight with battery: 2.3-2.7 kg
• Number of gears: 2
• LED work light: Yes
• Battery protection system: Yes
• Electronic overload protection: Yes

What is included:

• 1x Makita DTD201Z 18V LXT Impact Driver
• 1x Makita DHP492Z 18V LXT Brushless Combi Drill
• 2x BL1850 18V 5.0Ah LXT Lithium-Ion Batteries
• 1x DC18RC LXT 14.4-18V Fast Charger
• 1x 821551-8 Makpac Stacking Connector Case Type 3
• 1x Side handle
• 1x 122576-8 Stopper Pole (depth rod)
• 2x 251314-2 Truss Head Screw M4 x 12
• 2x 784637-8 Double ended screw bit PH2 S6 45 mm
• 1x 452947-8 Bit holder
• 2x Belt Hooks
