Product Description

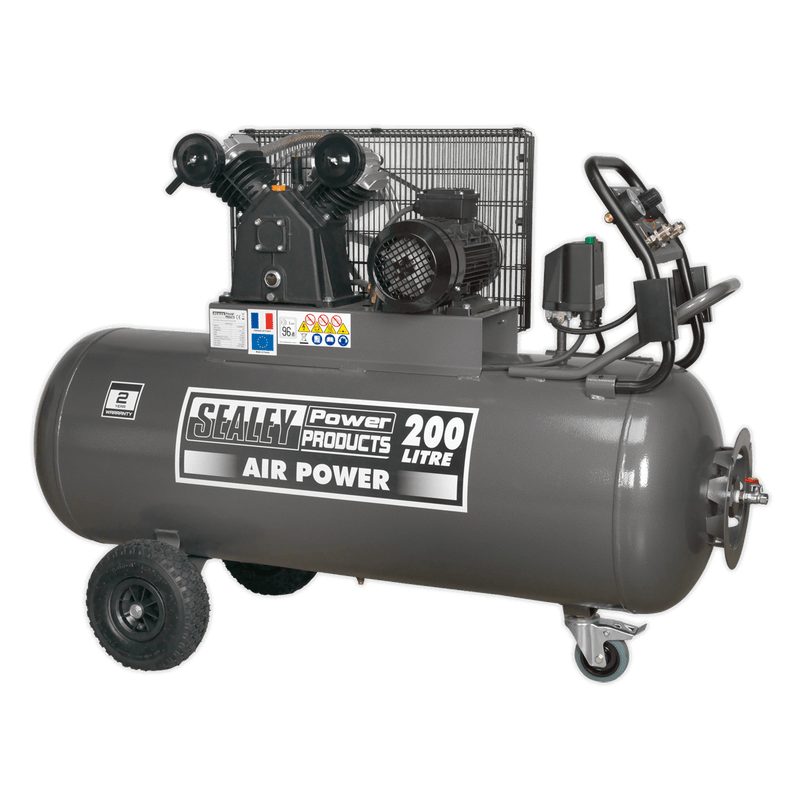

Sealey SAC3203B3PH Compressor 200L Belt Drive 3hp with Front Control Panel 415V 3ph

Heavy-duty 3-phase compressor suitable for the professional workshop. Triple cylinder pump system coupled with a 3hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by an alloy heads for improved heat dissipation and long life. Features an easy to use bespoke control panel with two outlets, one regulated and one direct. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Heavy-duty pneumatic wheels with single front lockable castor for easy manoeuvrability. Supplied with hose reel to keep your workspace tidy. Full CE certification, test certificates and operating/maintenance manual. Includes a drain valve for easy release of condensed water build up in the tank.

SAC3203B3PH Features

• Heavy-duty 3-phase compressor suitable for the professional workshop
• Triple cylinder pump system coupled with a 3hp motor maximizes performance to keep running costs low compared to single stage, single phase models
• Pump features heavy-duty full cast cylinders, capped by an alloy heads for improved heat dissipation and long life
• Features an easy to use bespoke control panel with two outlets, one regulated and one direct
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling
• Heavy-duty pneumatic wheels with single front lockable castor for easy manoeuvrability
• Supplied with hose reel to keep your workspace tidy
• Full CE certification, test certificates and operating/maintenance manual
• Includes a drain valve for easy release of condensed water build up in the tank
• 2 Year guarantee*

SAC3203B3PH Specification

• Model No SAC3203B3PH
• Air Displacement cfm(L/min): 13.4(380)
• Brand: Premier
• Maximum Free Air Delivery cfm(L/min): 10.9(310)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 3hp
• Nett Weight: 103kg
• Outlet: Hi-Flow Quick Release Coupling
• Phase: 3ph
• Receiver Capacity: 200L
• Size (W x D x H): 1410 x 600 x 1020mm
• Speed: 1243rpm
• Supply: 415V

What is included:

• 1 x Sealey SAC3203B3PH Compressor 200L Belt Drive 3hp with Front Control Panel 415V 3ph
