Product Description

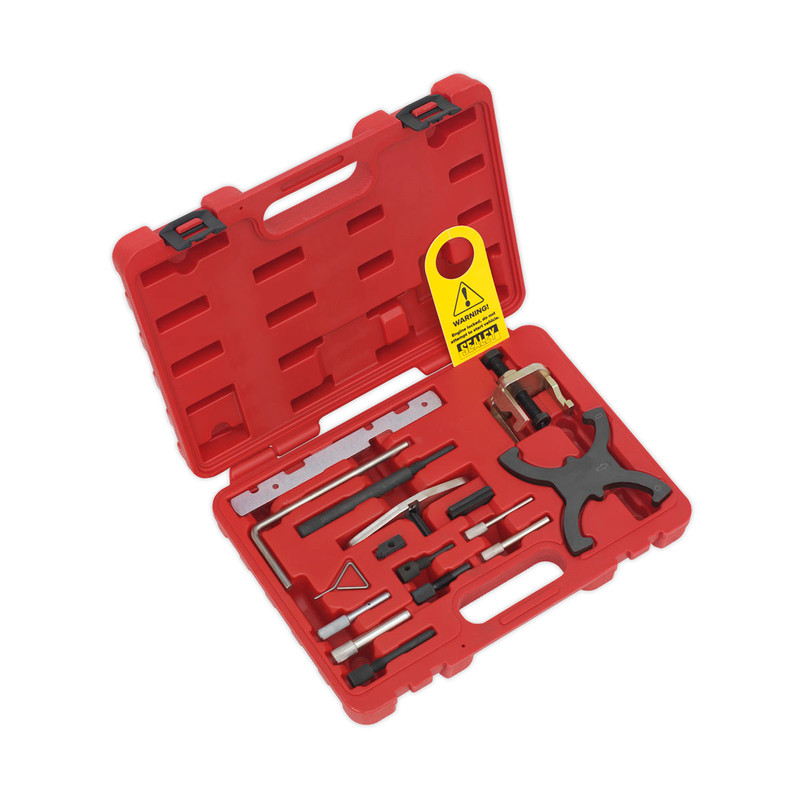

Sealey VSE5042A Diesel/Petrol Engine Timing Tool Combination Kit - Ford, PSA - Belt/Chain Drive

Timing tool combination kit suitable for a wide range of belt or chain driven petrol and diesel engines. Contains a camshaft sprocket puller and flywheel locking tools.
Supplied in a storage case with instructions and a warning tag.

VSE5042A Features:

• Timing tool combination kit suitable for a wide range of belt or chain driven petrol and diesel engines
• Contains a camshaft sprocket puller and flywheel locking tools
• Supplied in a storage case with instructions and a warning tag

VSE5042A Specification:

Citroen:

Berlingo (05-11), Berlingo II (05-11), Berlingo III (08-18), Berlingo IV (18-19), C1 (05-10), C2 (03-10),
C3 (02-10), C3 II (02-10), C3 III (10-17), CIII IV (16-18), C3 Pluriel (04-10), C3 Picasso (09-17), C4 (04-11),
C4 II (11-18), C4 Picasso (06-18), C4 Grand Picasso (06-18), C4 Cactus (14-18), C5 II (04-08), C5 III (04-15),
C-Elysee (14-18), DS3 (10-12), DS4 (11-12), DS5 (12-15), Dispatch (07-12), Jumpy III (07-12) Nemo (08-10), Xsara II (02-04), Xsara Picasso (04-10)

Fiat:

Scudo (07-12)

Ford:

B-Max (12-18), C-MAX (07-20), Cougar (98-01), Courier (00-02), EcoSport (03-15), Escort (94-98), Fiesta (95-17),
Focus (98-20), Focus C-MAX (03-11), Fusion (02-12), Grand C-MAX (10-20), Galaxy (06-15), Kuga (08-18)Maverick (01-07),
Mondeo (93-15), Orion (94-94), Puma (97-02), S-MAX (06-15), Tourneo Connect (02-13), Transit Connect (02-16), Transit (06-11),
Transit Courier (12-20), Grand Tourneo Connect (13-15) Tourneo Courier (14-15)

Jaguar:

XF (12-16), XJ (13-17), XE (15-17)

Land Rover:

Freelander 2 (12-15), Discovery Sport (15-17)

Mazda:

2 (02-12), 3 (09-15)

Peugeot:

107 (05-10), 1007 (05-10), 206 (01-11), 206+ (09-13), 206 CC (05-07), 207 (06-13), 207 CC (07-15), 208 (11-18),
307 (01-08), 308 (07-18), 308 CC (09-15), 407 (05-11), 508 (04-17), 2008 (13-17), 3008 (09-18), 4008 (12-15),
5008 (09-17), Bipper (08-10), Expert III (07-12), Partner (05-11), Partner II (05-11), Partner III (08-17)

Range Rover:

Evoque (11-17)

Suzuki:

Liana (04-08), SX4 (07-11)

Toyota:

Aygo (05-10)

Volvo:

C30 (06-13), S40 (04-12), V40 (12-15), V40 Cross Country (13-15), V50 (04-12), V60 (11-15), V70 (11-15), S60 (11-15), S80 (09-15)

Engine Codes:

1.25 16v:

DHA,DHB,DHC,DHD,DHE,DHF,DHG,F8JA,F8JB,FUJA,FUJB,M7JA,M7JB,SNJA,SNJB,SNJC,SNJD,STJA,STJB,STJC,STJD

1.4 16v:

ASDA,ASDB,FHA,FHB,FHD,FHE,FHF,FXDA,FXDB,FXDC,FXDD,FXJA,FXJB,FXJC,RTJA,RTJB,SPJA,SPJC,SPJD,SPJE,SP5D,SP5E,UTJA

1.4 D-4D, 1.4DDiS, 1.4TDCi, 1.4HDi:

DV4TD(8HT),DV4TD(8HX),DV4TD(8HZ),DV4TD(8HW),DV4TED4(8HX),DVTED4(8HV),DV4TED4(8HY),DV4C(8HP),DV4C(8HR),
DV4TE(8HS),F6JA,F6JB,F6JC,F6JD,KVJA,DV4(8HY),ZWZ-TV

1.5 EcoBoost:

M8DA,M8DB,M8DF,M8MA,M9DA,M9DB,M9MA,UNCE,UNCF,UNCI,UNCJ,UNCK

1.5TDCi:

ENUG,UGCA,UGJC,XUJA,XUJB,XUJF,XUJG,XUJH,XUJK,XUJN,XWDA,XWDB,XWDC,XWDD,XWDE,XWJB,XWJC,XXDA,XXDB,XXDC,XXDD,XXDE

1.6 16v:

FYDA,FYDB,FYDC,FYDD,FYDH,FYJA,FYJB,FYJC,HWDA,HWDB,IQBD,IQJA,IQJC,L1F,L1J,L1N,L1Q,L1L,L1T,L1V,L1W,SHDA,SHDB,SHDC

1.6 EcoBoost:

JQMA,JQMB,JTMA,JTBA,JTDB,JQDA,JQDB,JTJA,JTJB,JQGA,MUDA,MUDD,JTDA,JTBB,JTWA,JTWB

1.6D/eDrive/Multijet/DDiS/HDi/Blue-HDi/TDCi:

DV6ATED(9HY),DV6ATED4(9HX),DV6CATED(9HX),DV6BTED4(9HW),DV6DTED(9HP),DV6DTED(9HJ),DV6ETED(9HN),DV6(9HX),DV6AT(9HX),
DV6ATED(9HX),DV6CTED(9HC),DV6DTED(9HC),DV6AUTED4(9HX),DV6D(9HP),DV6TED4B,DV6DTED(9HF),DV6C(9HD),DV6C(BHX),DV6C(BHZ),
DV6(9HR),DV6C(9HL),DV6C(9HR),DV6FE(BHW),DV6FD(BHY),DV6FE(BHY),DV6FE(BXZ),DV6TED4(9HY),DV6TED4(9HZ),DV6TED(9HD),DV6TED(9HP),
DVTED4(9HV),DV6TED4(9HX),DV6TED4BU(9HS),DV6BTED4(9HT),DV6BUTED4(9HT),DV6TED4B(9HV),DV6UTED4(9HX),DV6UTED4(9HU),DV6TED4(9HV),
DV6TED4(9HW),DV6FC(BHW),DV6FC(BHX),DV6FC(BHY),DV6FC(BHZ),DV6C(9HD),D4164T,D4162T,G8DD,GPDA,G8DA,G8DB,G8DE,G8DF,GPDC,HHDA,
HHDB,HHJA,HHJB,HHJC,HHJD,HHJE,HHJF, MTDA,MZ-CD,MZ-CD (Y6),T1DA,T1DB,T3DA,T3DB,TZJA,TZJB,UBJA,Y6

1.6Ti-VCT, 1.6Ti-VCT FFV, 1.6Ti-VCT S:

HXDA,HXJA,HXJB,IQDA,IQDB,IQDC,IQJE,MUDA,MUDD,PNBA,PNDA,PNDD,RHBA,SIDA,U5JA,XTDA,XTDB

1.8 16v:

CDBB,CGBA,CGBB,CHBA,CHBB,CSDA,CSDB,EYDB,EYDC,EYDD,EYDE,EYDF,EYDG,EYDI,EYDJ,EYDL,EYPA,EYPC,QQDA,
QQDB,QQDC,QQDD,Q7DA,RKA,RKB,RKC,RKF,RKH,RKJ,RKK

1.8TDCi, 1.8TDCi ECOnetic, 1.8TDdi, 1.8D Turbo:

BHDA,BHDB,BHPA,C9DA,C9DB,C9DC,FFBA,FFDA,FFWA,F9DA,F9DB,HCPA,HCPB,KHBA,KKDA,KKDB,P7PA,P9PA,P9PB,QYBA,
QYWA,R2PA,R3PA,RFN,RTN,RTQ,RTP,RWPA,RWPC

2.0 16v:

AOBA,AOBC,AODA,AODB,AODE,AOWA,AOWB,CJBA,CJBB,EDBA,EDBC,EDBB,EDBD,EDDB,EDDC,EDDD,EDDF,NGA,NGB,NGC,NGD,SYDA,TBBA,TBBB,TBWA,TBWB,YF,204PT

2.0 ST150, 2.0 16v.RS, 2.0 ST, 2.0 ST170:

ALDA,HMDA,N4JB,T8DA

2.0D HDi, 2.0 TDCi:

AZBA,AZBC,AZWA,AZWC,G6DA,G6DB,G6DC,G6DD,G6DE,G6DF,G6DG,IXDA,KLBA,KLWA,LPBA,TXBA,TXDA,TXDB,TXMA, TXWA,TYBA,TYWA,TYDA,T7DB,T8DF,UFBA,UFDA,UFDB,UFMA,UFWA,UKBA,UKBB,UKDB,UKDA,UKMA,UKWA,QXBA,QXBB,QXWA,QXWB,RHE(DW10CTED4)

2.2 TDCi:

KNBA,KNWA,Q4BA,Q4WA

2.3 16v:

GZFA,GZFB,GZFC,GZ,SEBA,SEWA

OEM Tools:

Ford:

303-732, 303-620, 303-507, 303-193, 303-393A, 303-393-02, 303-393-01, 303-651, 303-376, 303-734, 303-1054,
303-748, 303-1097, 303-1059, 303-735

Peugeot/Citroen:

21-229, 0194-C, 0194-B

Mazda:

49JE01054, 49JE01061, 49JE02021

Suzuki:

09910-05410, 09910-05410

Volvo:

999-7151, 999-7169, 999-7406, 999-7429, 999-7121, 999-7122

JLR:

303-1272, 303-1272, 303-748, 303-1270

What is included:

• 1 x Sealey VSE5042A Diesel/Petrol Engine Timing Tool Combination Kit - Ford, PSA - Belt/Chain Drive
