Product Description

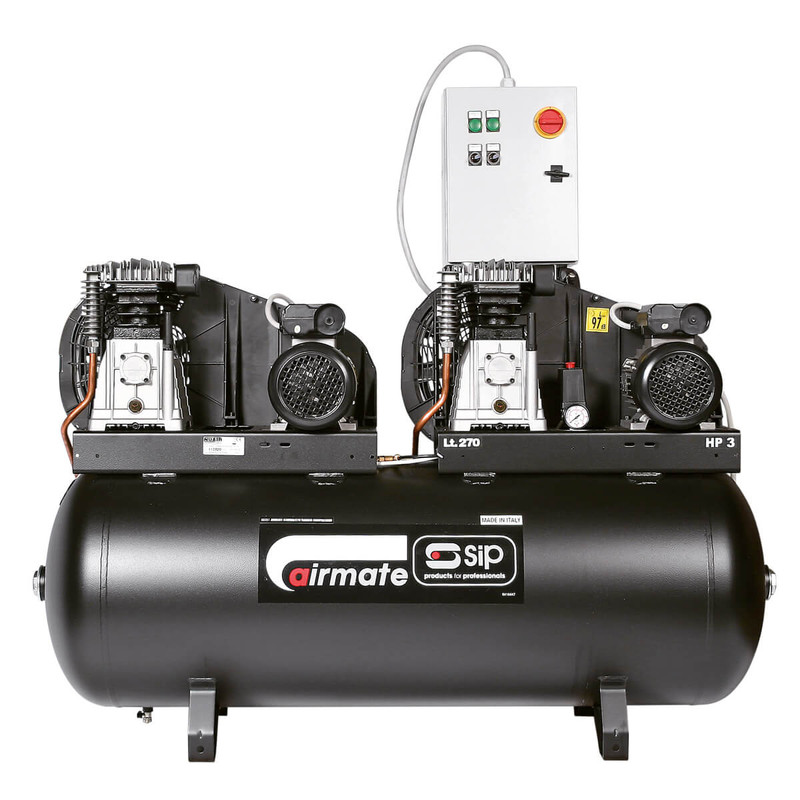

SIP 05251 B3800/270 Tandem Compressor

The SIP B3800/270 Tandem is a belt-driven compressor with 2x 3hp motors, meaning that it will continue to operate should a single pump or motor suffer a failure, plus staggered pump start.

Features

• 230v (32amp) input supply
• 2x 3.0hp (2.2kW) tandem motors
• Heavy-duty 270 litre air receiver size
• 32CFM maximum piston displacement
• 22CFM maximum free air delivery (FAD)
• 145psi (10 bar) max. working pressure
• Twin pump units for continued operation should a pump or motor suffer a failure
• Single or dual running modes available
• Strong aluminium die-cast valve plate
• Staggered pump start to reduce draw

05251 Specification

• ITEM NO. 05251
• Input Supply: 230v (32A)
• Motor Power: 2x 3hp (2.2kW)
• Receiver Size: 270 litres
• Piston Displacement: 32CFM (906 litres/min)
• Max. Free Air Delivery: 22CFM (623 litres/min)
• Maximum Pressure: 145psi (10 bar)

What is included:

• 1 x SIP 05251 B3800/270 Tandem Compressor
