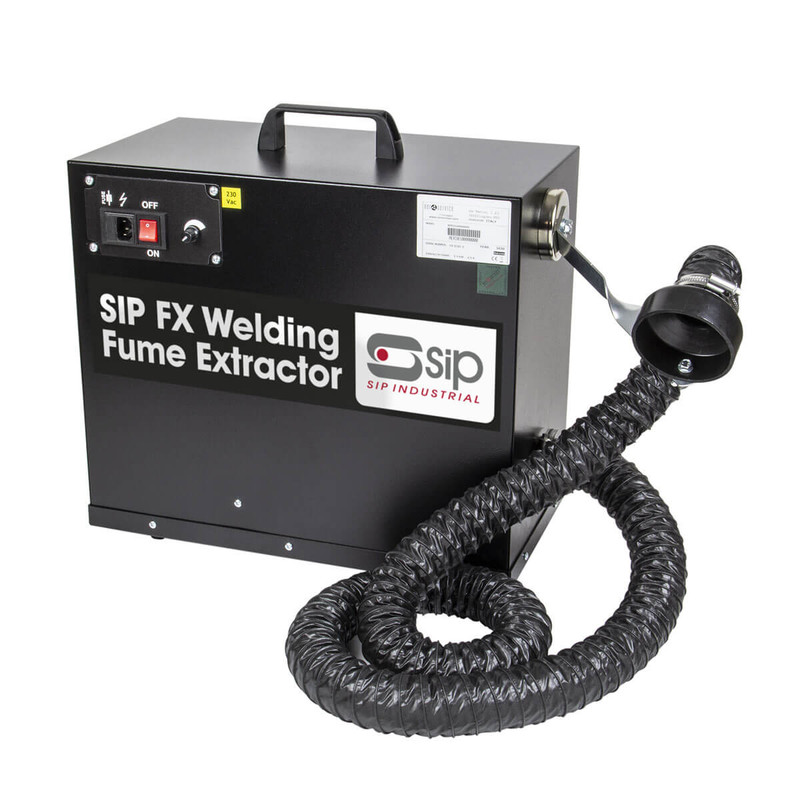

SIP 05800 FX Portable Welding Fume Extractor

Description

SIP 05800 FX Portable Welding Fume Extractor

The SIP FX Portable Welding Fume Extractor is a local exhaust ventilator (LEV) that ensures welding fumes released are properly controlled, providing protection against harmful toxic fumes.

Features

• 230v input supply, 1.1kW input power
• For medium and low pollutant contaminants
• Intermittent operation adjustable motor speed
• 2500m³/hr max. flow, 1100m³/hr max. suction
• Powerful 3-stage effective filtration up to 85%:
• Stage 1: Metallic spark arrestors G25%
• Stage 2: Cartridge filter F5 85%
• Stage 3: Active carbon panel
• Durable steel with powder-coated finish
• Lightweight and compact for movement
• Complies with current regulations
• Made in Italy

05800 Specification

• ITEM NO. 05800
• Input Supply: 230v
• Input Power: 1.1kW
• Power Consumption: 4.85A
• Max. Flow Rate: 2500m³/hr
• Max. Suction Rate: 1100m³/hr
• Filtration: 85%
• Filter Stage 1: Metallic spark arrestors G25%
• Filter Stage 2: Cartridge filter F5 85%
• Filter Stage 3: Active carbon panel
• Adjustable Extraction: Extraction hose
• Max. Temperature: 60°C
• Noise Level: 65dB(A)

What is included:

• 1 x SIP 05800 FX Portable Welding Fume Extractor
