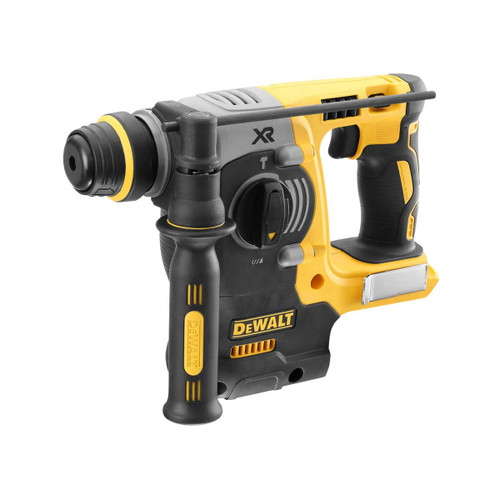

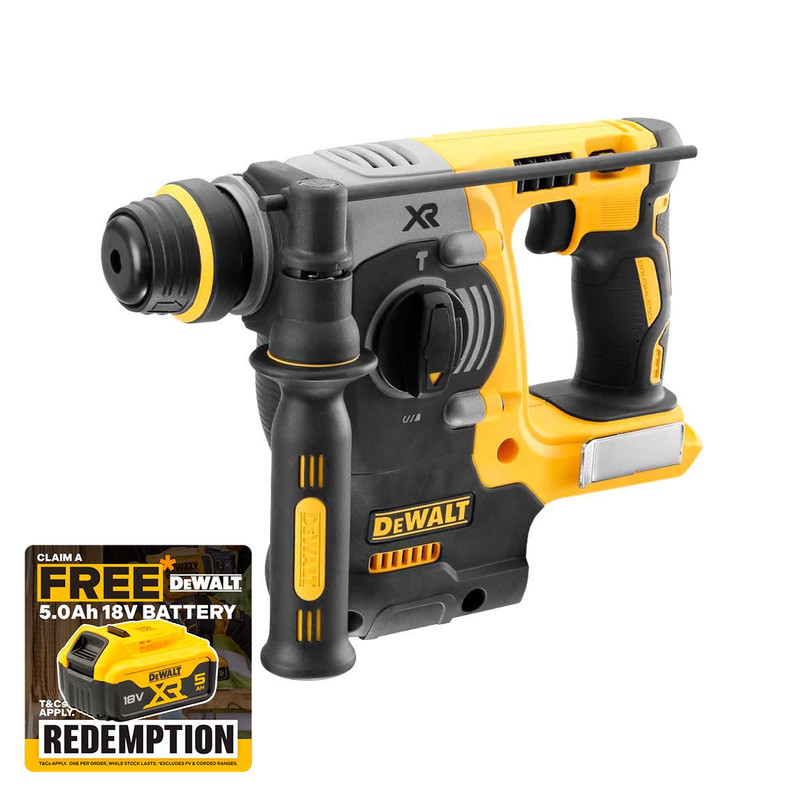

DeWalt DCH273N-XJ 18V XR Brushless 24mm SDS-Plus Hammer Drill (Body Only)

Description

DeWalt DCH273N-XJ 18V XR Brushless 24mm SDS-Plus Hammer Drill (Body Only)

The DeWalt DCH273N-XJ 18V XR Brushless 24mm SDS-Plus Hammer Drill (Body Only) is a compact, cordless rotary hammer engineered for fast anchor drilling and fixing work in concrete, brick, and masonry. Delivering 2.1J of impact energy, up to 0–1,100rpm, and 0–4,600bpm, it offers category-leading drilling performance with more than 90 holes (10mm x 80mm) per charge when used with compatible XR Li-Ion batteries. Perform & Protect vibration control keeps hand/arm vibration as low as 6.6m/s², while the electronic clutch and SDS-Plus tool holder provide secure bit retention and consistent torque in tough materials. Three operating modes—hammer drilling, rotation only, and chiselling—make it ideal for construction, electrical, plumbing, and renovation trades needing one versatile tool for anchors, fixings, and light demolition. Supplied as a bare unit with belt hook and multi-position side handle, the DCH273N-XJ integrates seamlessly into the DeWalt 18V XR platform.

DCH273N-XJ Features:

• Deliver 2.1J of impact energy for fast drilling in concrete, brick, and masonry up to 24mm
• Drive an efficient 18V XR brushless motor to maximize runtime and reduce maintenance on demanding jobs
• Achieve category-leading productivity with more than 90 holes (10mm x 80mm) per charge when paired with compatible XR batteries
• Switch between 3 modes (hammer drilling, rotation only, and chiselling) to tackle fixing, anchor drilling, and light demolition with one tool
• Control vibration with Perform & Protect technology and a low 6.6m/s² rating to help minimize user fatigue during extended use
• Rely on the electronic clutch to deliver consistently high torque and protect both user and tool in tough materials
• Work comfortably in tight spaces thanks to the compact 301mm length, 2.5kg body, and ergonomic rubber overmold grips
• Illuminate dark work areas with the bright white LED work light with delay feature for improved visibility and accuracy
• Benefit from SDS-Plus tool holder compatibility for quick bit changes and secure bit retention across common rotary hammer applications
• Integrate seamlessly into the DeWalt 18V XR cordless platform so you can share batteries across your professional tool kit

DCH273N-XJ Specification:

• Brand: DeWalt
• Model: DCH273N-XJ
• Product type: 18V XR Brushless SDS-Plus Hammer Drill
• Power source: Cordless
• Battery voltage: 18V
• Battery chemistry: XR Li-Ion
• Motor type: Brushless
• Tool holder: SDS-Plus
• Impact energy (EPTA 05/2009): 2.1J
• No load speed: 0–1100rpm
• Blows per minute: 0–4600bpm
• Max drilling capacity in concrete: 24mm
• Max drilling capacity in metal: 13mm
• Max drilling capacity in wood: 26mm
• Hand/arm vibration – hammer drilling into concrete: 6.6m/s²
• Hand/arm vibration – chiselling: 5.4m/s²
• Hand/arm vibration – drilling into metal: <2.5m/s²
• Sound pressure: 86dB(A)
• Sound power: 97dB(A)
• Weight: 2.5kg
• Length: 301mm
• Height: 202mm
• Width: 85mm
• Modes: Hammer drilling, chipping, rotation only
• Clutch: Electronic
• Vibration control: Yes
• Perform & Protect: Yes
• Body only: Yes

What is included:

• 1x DeWalt DCH273N-XJ 18V XR Brushless 24mm SDS-Plus Hammer Drill (Body Only)
• 1x Multi-position side handle
• 1x Belt hook
