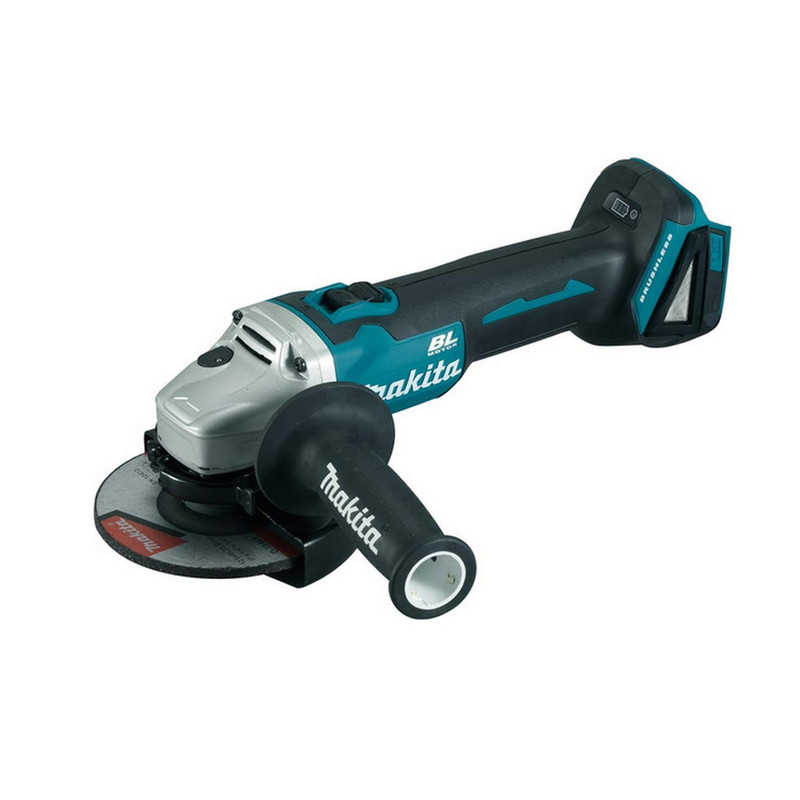

Makita DGA504Z 18V LXT Brushless 125mm Angle Grinder (Body Only)

Description

Makita DGA504Z 18V LXT Brushless 125mm Angle Grinder (Body Only)

The Makita DGA504Z 18V LXT Brushless 125mm Angle Grinder (Body Only) is a compact cordless power tool designed for fast, controlled cutting and grinding in metalwork, masonry and general construction tasks. Powered by Makita’s 18V LXT Li-ion battery platform and a high-efficiency brushless motor, it delivers up to 8,500rpm no-load speed, making it well suited to heavy-duty grinding and site use where mains power is not convenient. Automatic speed control optimises performance by adjusting torque and speed to match the load, while soft start and an electronic current limiter support smooth, protected operation. The anti-restart function and convenient slide switch with lock-on enhance user safety and control, and the rubberised soft grip and compact 125mm wheel size help reduce fatigue during prolonged use. This cordless angle grinder accepts 125mm discs with a 22.23mm bore and a maximum wheel thickness of 6mm, making it compatible with a wide range of professional accessories. The Makita DGA504Z is supplied as a bare unit, with selected models including a side handle, protective guard, grinding wheel and lock nut wrench as stated.

DGA504Z Features:

• Makita DGA504Z 18V LXT Brushless 125mm Angle Grinder (Body Only) delivers cordless freedom for cutting and grinding across demanding power tool applications
• High-efficiency brushless motor maximises runtime and reduces maintenance for regular professional site use
• Automatic speed control (ADT) adjusts wheel speed to match load, helping to maintain consistent performance on both light and heavy-duty tasks
• Soft start function brings the disc up to speed smoothly, improving control when starting cuts or grinding
• Anti-restart function helps prevent accidental start-up, supporting safer handling on busy job sites
• Electronic current limiter offers overload protection to safeguard both the motor and battery during tough cuts
• Rubberised soft grip and compact 125mm body design enhance comfort and control during extended grinding sessions
• Slide switch with lock-on function allows convenient one-handed operation for continuous cutting and grinding
• 125mm (5 inch) wheel capacity with 22.23mm bore suits a wide range of cutting and grinding accessories used in power tools
• Body only configuration is compatible with Makita 18V LXT Li-ion batteries, allowing users to build on their existing cordless kit

DGA504Z Specification:

• Brand: Makita
• Model: DGA504Z
• Product type: 18V LXT cordless brushless angle grinder
• Voltage: 18V
• Battery type: Li-ion
• Battery system: LXT
• Max wheel diameter: 125 mm
• Max wheel diameter (imperial): 5"
• Bore diameter: 22.23 mm
• Max wheel thickness: 6 mm
• No load speed: 8,500 rpm
• No load speed range: 3,000-8,500 rpm
• Disc fitting type: M14
• Noise sound pressure: 79 dB(A)
• Noise K factor: 3 dB(A)
• Vibration K factor: 1.5 m/sec²
• Vibration - surface grinding: 6.5 m/sec²
• Vibration - surface grinding with anti-vibration side grip: 6.0 m/sec²
• Vibration - disc sanding: 2.5 m/sec²
• Net weight: 2.5 kg
• Net weight (alternative source): 2.6 kg
• Dimensions (L x W x H): 362 x 130 x 145 mm
• Switch type: Slide switch
• Soft start: Yes
• Brushless motor: Yes
• Anti-restart function: Yes
• Electronic current limiter: Yes
• Electric brake: Yes
• Guard type: Adjustable guard
• Dust extraction compatibility: Yes, with optional dust collecting wheel cover
• Power supply: Cordless

What is included:

• 1x Makita DGA504Z 18V LXT Brushless 125mm Angle Grinder (Body Only)
• 1x Side handle
• 1x Protective or tool-less wheel cover
• 1x Grinding wheel
• 1x Lock nut wrench
