Product Description

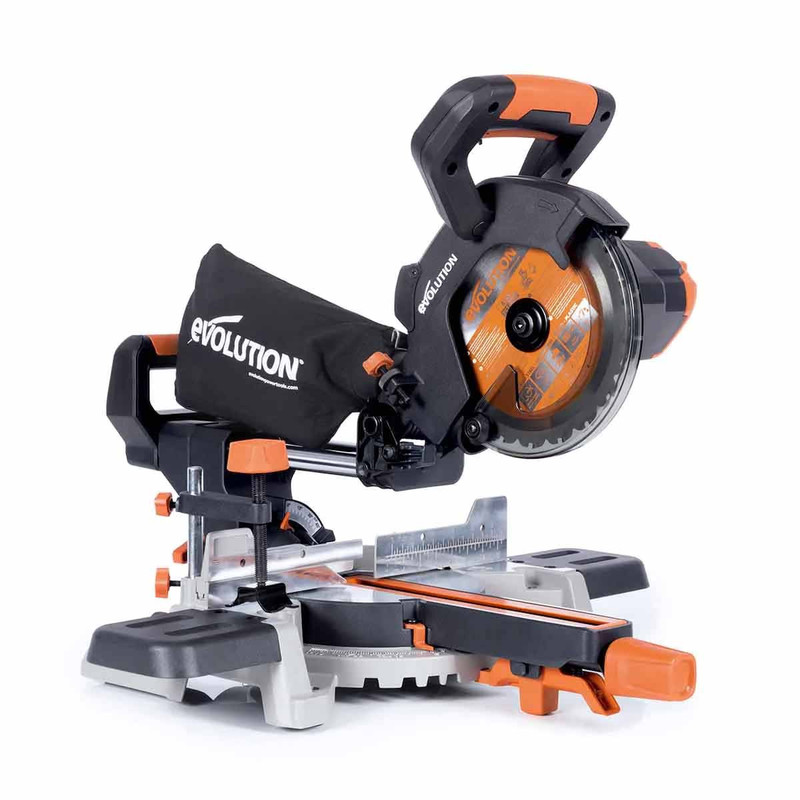

Evolution R185SMS-LI 18V EXT 185mm Cordless Sliding Mitre Saw (Body Only)

The Evolution R185SMS-Li stands as a formidable cordless Sliding Mitre Saw, renowned for its capability to execute precise cuts across a spectrum of materials including new and reclaimed wood, plastics, composites, and metals. Ideal for both worksite and workshop applications, its compact size also makes it an attractive option for serious home users. Loaded with features, the R185SMS-Li 18V Li-ion cordless sliding mitre saw boasts multi-material cutting technology, a dust collection bag & vacuum attachment port, and an enlarged 210mm x 58mm cross-cut capacity, surpassing its predecessor, the R185SMS+ model. The innovative Shadow Line LED cutting guide ensures optimal accuracy by projecting the blade kerf onto the cutting surface, promoting "measure once cut once" precision. Whether it's clean and accurate cuts through wood or cool-to-the-touch, burr-free cuts through metals using the supplied Multi-Material blade, this saw delivers exceptional results across various materials.
Powered by Evolution’s 18V EXT Li-Ion battery system, the R185SMS-Li provides extended run times and possesses the power to effortlessly cut through wood, plastics, composites, and metals with its Multi-material blade technology. The loaded version comes bundled with the R18BAT-Li4 4Ah battery pack, capable of completing almost 200 cuts through 3x2" CLS on a single charge, and the R18RCH-Li Single Port Rapid Charger, ensuring rapid charging in just 50 minutes. Moreover, Evolution’s EXT Cordless Li-ion power tools are designed to be compatible with all EXT batteries, allowing for seamless interchangeability across multiple tools for maximum versatility (Battery not included).

064-0001 Features:

• EXT Li-ion cordless performance and versatility
• High Power 850W Brushed DC motor
• Optimised drivetrain, for maximum battery life and run time from each charge
• 50 Minute charge time with 4Ah battery
• Shadow Line, kerf width blade cutting guide. Measure once, cut once.
• Mitre Saw Stand compatible for go-anywhere support and stability
• Multi-Material: premium Japanese 20T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites and more
• Virtually spark free cuts, with no heat, no burrs and an instantly workable finish
• Accurate, Bevel, Mitre & Compound cuts with detent stops at most popular angles.
• Depth Stop feature enables accurate trench cuts
• Cast alloy base, trade tough build
• Ergonomic ambidextrous handles for easy control
• Split Rear Fence For Compound cuts
• Soft Start & quick-stop Electronic Blade Brake For Safety
• Vacuum compatible dust extraction, R11VAC-LI and R15VAC
• Dust Bag included
• Single bolt blade change, quick and easy replacement.
• Integrated Carry Handles
• Diamond Blade compatible
• Blade change tool included, quick and easy swaps

064-0001 Specification:

• Weight: 8.6 kg
• Voltage / (Hz): 18v -50Hz
• Power: 850W
• No Load Speed (min-1 rpm): 4200rpm
• Blade Size: 185mm
• Blade Bore: 20mm
• Net Weight: 8.6kg / 10.2kg
• Dust port Adaptor Size: 35mm
• Tool Dimensions: 285x 459 x 560mm
• Mild steel Plate - Max Thickness: 6mm
• Mild Steel Tube Max Wall Thickness: 3mm
• Minimum Size Workpiece (smaller pieces require support): 125 x 30 x 3mm
• 0º Mitre x 0º Bevel 210 x 58mm
• 45º Mitre x 0º Bevel: 145 x 58mm
• 0º Mitre x 45º Bevel: 210 x 40mm
• 45º Mitre x 45º Bevel: 145 x 40mm
• Mitre Range: 50°- 50°
• Bevel Range: 0°- 45°
• Blade Diameter: 185mm
• Bore Diameter: 20mm
• No of Teeth: 20T
• Kerf: 1.7mm

What is included:

• 1x Evolution R185SMS-LI 18V EXT Cordless Sliding Mitre Saw
• 1x Instruction Manual
• 1x Multi-Material Blade 20T 185mm
• 1x Machine Table Extension = 4x socket headed screws
• 1x Double Ended Hex Key M6 x M4
• 1x Rotary Table & neck
• 1x 3Pc Hold Down Clamp
• 1x Cutting Head
• 1x Carriage Slides
• 1x Multi-locking Knob
• 1x Dust Port Adaptor
• 1x Dust Bag
