Description

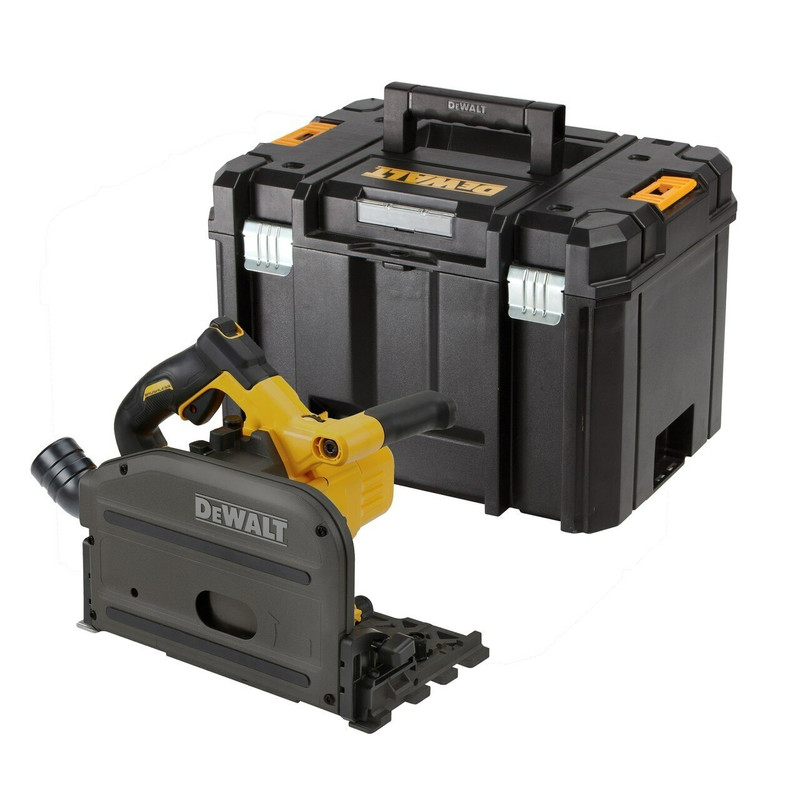

Dewalt DCS520NT-XJ XR 165mm 54V FlexVolt Plunge Saw in TSTAK Carry Case (Body Only)
The Dewalt DCS520NT-XJ XR 165mm 54V FlexVolt Plunge Saw in TSTAK Carry Case (Body Only) is a professional cordless plunge saw engineered for precise sheet cutting, trimming doors, and on-site installation work. Powered by the 54V XR FlexVolt platform and a high-efficiency brushless motor, it delivers corded-level performance with variable speed and full wave electronics to maintain consistent blade speed under heavy load. The parallel plunge mechanism, fine-tooth 165mm blade, and accurate rail adjustment combine to give smooth, splinter-free cuts in laminates, hardwoods, and panel materials, while the enclosed guard and dust port provide up to 90% dust extraction when paired with an extractor. With a generous 55mm depth of cut and 47° bevel capacity, it covers a wide range of carpentry and finishing applications. Supplied as a bare unit with a precision circular saw blade and rugged TSTAK carry case, it integrates seamlessly into the DeWalt XR FlexVolt system and is ready to pair with your existing batteries and guide rails.
DCS520NT-XJ Features:
- Delivers 54V XR FlexVolt cordless power for corded-like cutting performance on demanding plunge saw tasks.
- Brushless motor technology maximizes efficiency and runtime, supporting extended use on professional job sites.
- Utilizes a 165mm precision blade to produce clean, accurate cuts ideal for sheet materials and fine woodworking.
- Offers parallel plunge action to maintain a stable, comfortable hand position for controlled, repeatable cuts.
- Incorporates an anti-kickback function to reduce backward movement on the rail, enhancing user safety during plunge cuts.
- Features variable speed control and full wave electronics to match blade speed to material while maintaining constant speed under load.
- Provides up to 55mm depth of cut, enabling trimming and sizing of most standard door and panel thicknesses.
- Includes an enclosed guard design that delivers up to 90% dust extraction when used with a compatible extractor for a cleaner workspace.
- Integrates precise rail adjustment for smooth tracking and accurate alignment with DeWalt guide rails.
- Supplied in a robust TSTAK carry case for organized storage and easy transport between sites.
DCS520NT-XJ Specification:
- Brand: DeWalt
- Model: DCS520NT-XJ
- Voltage: 54V XR FlexVolt
- Power source: Battery
- Motor type: Brushless
- Blade diameter: 165 mm
- Blade bore: 20 mm
- No load speed: 2500-4200 rpm
- Bevel capacity: 47°
- Max. depth of cut at 90°: 59 mm
- Max. depth of cut at 90° with guide rails: 55 mm
- Max. depth of cut at 45°: 44 mm
- Max. depth of cut at 45° with guide rails: 40 mm
- Plunge depth: 55 mm
- Length: 303 mm
- Height: 265 mm
- Weight: 4.7 kg
- Hand/arm vibration: 1.1 m/s²
- Vibration uncertainty K: 1.5 m/s²
- Sound pressure: 82.2 dB(A)
- Sound pressure uncertainty: 2.9 dB(A)
- Sound power: 93.2 dB(A)
- Sound power uncertainty: 2.9 dB(A)
- Battery compatibility: DeWalt XR FlexVolt 18V/54V batteries
- Supplied in: TSTAK carry case
- Battery and charger included: No
What is included:
- 1x DeWalt DCS520NT-XJ 54V XR FlexVolt 165mm Plunge Saw Body Only
- 1x 42 tooth precision circular saw blade
- 1x DeWalt TSTAK carry case
