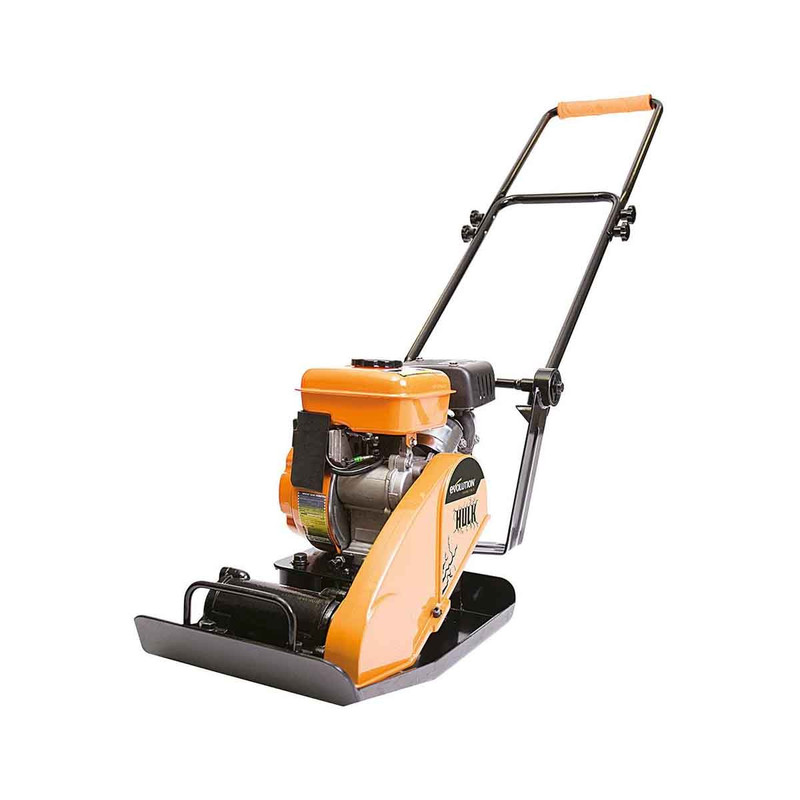

Evolution 015-0001 Hulk 4 Stroke Petrol Plate Compactor

Description

Evolution 015-0001 Hulk 4 Stroke Petrol Plate Compactor

The Evolution 015-0001 Hulk 4 Stroke Petrol Plate Compactor is a compact and efficient tool designed for both trade professionals and DIY enthusiasts. It distinguishes itself by being smaller and up to 20kg lighter than its competitors, resulting in reduced fuel consumption and fewer emissions. Despite its size, it delivers a substantial compaction force of 10,000n. This compact yet powerful compactor is capable of reaching areas that larger machines cannot, thanks to its smaller compaction plate. After use, it conveniently folds up for easy storage.

015-0001 Features:

• Ideal For: Crusher Run, Sand, Soil, Small Aggregates, Patio & Block Paving, Driveways & Tarmac Repair with Excellent Surface Preparation.
• The HULK PETROL is the ideal compactor for the construction and landscaping industries, offering a very realistic alternative to hiring, due to its incredible value!
• Ideal for surface preparation when evenly compacted ground is required and suitable for sub-base preparation, sand, gravel, crusher run, soil, small aggregates, patios, block paving, driveways, pathways and tarmac repairs
• The HULK PETROL also has an easy-fold hinged handle, for improved storage and transportation.
• The thick, durable base plate delivers high centrifugal force for powerful performance with 8m/min travel speed and can be used on block paving with the optional paving pad.
• The HULK PETROL is also low frequency (at just 90Hz) and high amplitude for better soil compaction
• Features include an easy pull-start 80cc petrol engine, 1.5L fuel tank and forced air cooling system.
• 2 year warranty.

015-0001 Specification:

• Engine Type: Single cylinder 4 stroke OHV
• Engine Power (HP): 2.4 @ 3600 rpm
• Spark Plug Replacement: LD E6TC (available from Evolution); NGK BP6HS; CHAMPION L87YCC; AC DELCO 42FS
• Spark Plug Gap: 0.07 – 0.08 mm
• Air Filter Replacement: Evolution H1S58
• Valve Clearances (cold): Inlet 0.15 mm 0.006 inches; Exhaust 0.20 mm 0.008 inches
• Compaction Force (kN): 10
• Recommended Maximum Operator Usage Time: 20 Minutes
• Oil Type: SAE 10W-30/40
• Oil Capacity: 0.25 L
• Fuel Type: Standard Unleaded Petrol
• Fuel Capacity: 1.2 L
• Foot print: 400mm x 320mm
• Handle Height (during operations extension handle fitted): 1020mm
• Machine Reach(during operations extension handle fitted): 1290mm
• Product Weight: 38kg
• Packaged Weight: 40kg
• Sound Pressure Level LPA: 101dB(A) K=3 dB(A)
• Sound Power Level LWA: 105dB(A) K=3 dB(A)
• Vibration (m/sec2): 15.8 K = 1.5

What is included:

• 1x 015-0001 Hulk 4 Stroke Petrol Plate Compactor
