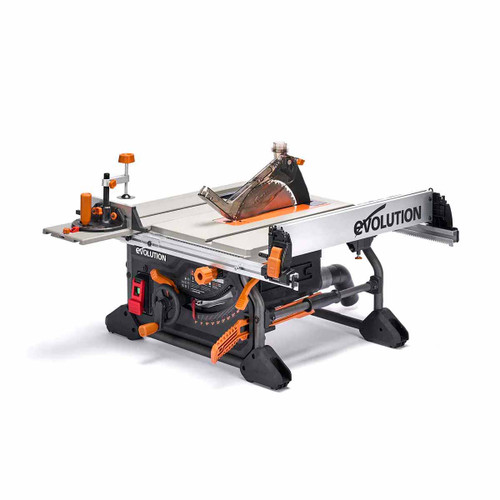

Evolution 119-0001 R255TBL 255mm Portable Jobsite Table Saw 1650W 240V

Description

Evolution 119-0001 R255TBL 255mm Portable Jobsite Table Saw 1650W 240V

This innovative table saw boasts enhanced accuracy with its Dual Rack & Pinion Rip-Fence ensuring consistent, precise cuts. Its newly designed Blade Height and Micro-adjustable Bevel Cut Angle Mechanism guarantees wobble-free adjustments. Plus, our patented Blade-to-Rip-Fence Parallelism Adjustment ensures perfect alignment for seamless cuts in large sheets. With a Metal Throat Plate featuring corner height adjustment, accuracy is crucial. Versatility is key with the R255TBL, featuring an Integrated Mitre Sled compatible with industry-standard channel profiles for third-party accessories and our own Mitre Guide. Offering a 85mm cut depth at 90 degrees and 58mm at 45 degrees, its wider cast table top excels at handling 8x4 sheets while maintaining a lighter weight than its predecessor. Improved dust extraction, tool-free setup, and multi-material cutting capabilities further enhance its versatility. Designed for portability, the R255TBL is housed within a lightweight, roll-cage chassis with integrated carry handles. Its large all-terrain wheels enable easy manoeuvrability, effortlessly passing through standard width internal doors for convenient jobsite use. Safety is crucial with the R255TBL, featuring a powerful 1,650w motor with thermal overload protection and a paddle-style emergency stop. Enhanced cut visibility with the blade guard and a Quick Release Riving Knife design ensure safer cutting experiences. The redesigned motor housing facilitates better dust extraction and easier maintenance.

119-0001 Features:

• More portable, powerful, accurate and easier to adjust and calibrate.
• Improved accuracy for every cut type and ease of set-up
• Dual Rack & pinion parallel fence for precision rip cuts.
• Quick Release Riving Knife with offset angle and lateral adjustment.
• Crosscut Sled Insert – industry standard accessory channel profile for Mitre Guide
• Geared micro-adjustable bevel angle selector 45° Range (+ and - 2°)
• Metal roll cage chassis with integrated carry handles.
• Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees.
• New blade guard. easier adjustment and enhanced cut visibility & dust extraction.
• More compact and portable wheeled support – rolls through standard width door.
• ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
• Intelligent Motor Overload Protection.
• Paddle Style Emergency Stop Switch provides increased user safety.
• Reduced pack and storage size.
• Multi-Material cutting technology. One saw, one blade, cuts all.*
• More powerful, 1,650W hi-torque motor
• 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles.
• Increased table-top size.
• 4m durable cable with the built-in storage cable holder.
• All tools and accessories stored on tool frame.
• Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 28T blade included.

119-0001 Specification:

• Motor (240V 50Hz): 1,650W
• Speed No Load: 2,500rpm
• Max. Bevel (Left): 45° (-2 to 47° with stop washers removed)
• Blade Dia.: 255mm
• No. of Teeth: 24
• Bore: 25.4mm
• Kerf: 2mm
• Max. Depth of Cut (0°): 85mm
• Max. Depth of Cut (45°): 58mm
• Mild Steel Plate
• (Max. Thickness): 6mm
• Rip Capacity - Right of the blade 650mm
• Rip Capacity - Left of the blade 371mm
• Riving Knife Thickness 1.8mm
• Product Dimensions: (With Leg Assembly) 1050mm x 750mm x 940mm
• Product Dimensions: (Without Leg Assembly) 880 x 730 x 330mm
• Max. Table Dimensions 1200mm x 640mm
• Min. Table Dimensions 745mm x 640mm
• Packaging Dimensions: 910mm x 370mm x 750mm
• Storage Dimensions: H 1110mm x D 660mm x W 825mm
• Product Weight: 21.2 kg
• Packaged Weight: 33.5 kg
• Sound Pressure Level LPA: 93,2dB(A) K:3dB(A)
• Sound Power Level LWA: 106,2dB(A) K=3 dB(A)

What is included:

• 1x Evolution 119-0001 R255TBL 255mm Portable Jobsite Table Saw 1650W 240V
• 1x 28T Multi-Material TCT Blade
• 1x Blade Guard with Dust Extraction Port
• 1x Built In Crosscut Sled
• 1x Dust Extraction 90° Elbow
• 1x Mitre Gauge
• 1x Adjustable Rip Fence
• 1x Push Stick
• 1x Riving Knife
• 1x Blade Changing Spanners
