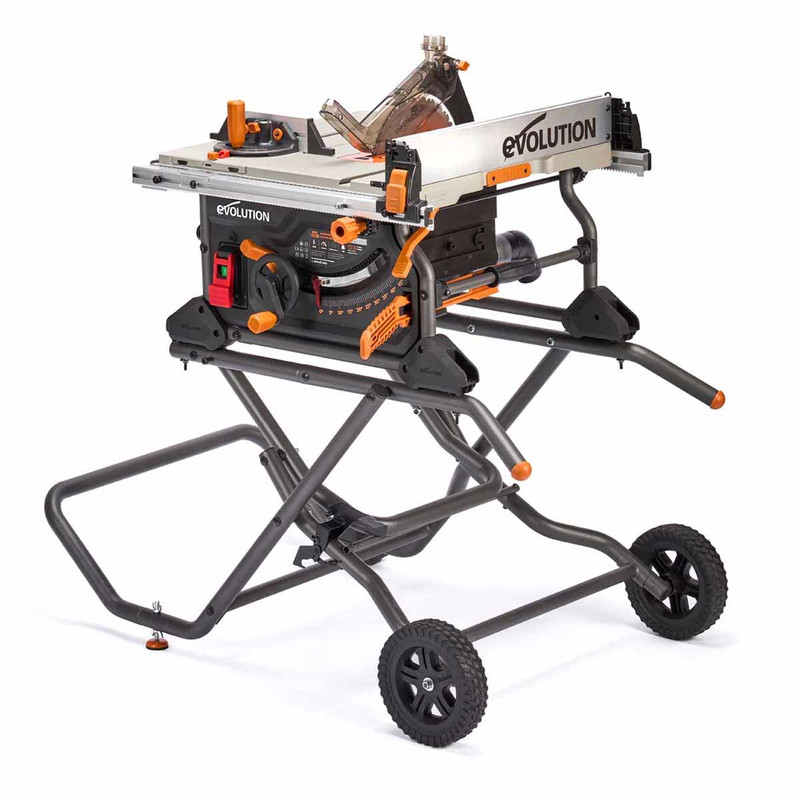

Evolution 119-0006 R255TBLX 255mm Portable Jobsite Table Saw with Stand 1650W 240V

Description

Evolution 119-0006 R255TBLX 255mm Portable Jobsite Table Saw with Stand 1650W 240V

This cutting-edge table saw is engineered for superior accuracy, boasting a Dual Rack & Pinion Rip-Fence system that ensures consistent, precise cuts every time. Its newly designed Blade Height and Micro-adjustable Bevel Cut Angle Mechanism guarantee wobble-free adjustments for unparalleled precision. Our patented Blade-to-Rip-Fence Parallelism Adjustment guarantees perfect alignment, resulting in seamless cuts even in large sheets. Accuracy is paramount with the Metal Throat Plate featuring corner height adjustment. The R255TBLX offers versatility with an Integrated Mitre Sled compatible with industry-standard channel profiles for third-party accessories and our own Mitre Guide. With a 85mm cut depth at 90 degrees and 58mm at 45 degrees, its wider cast table top excels at handling 8x4 sheets while remaining lighter than its predecessor. Enhanced dust extraction, tool-free setup, and multi-material cutting capabilities further elevate its versatility. Designed for portability, the R255TBLX comes with the 119-0050 Evolution Compact Folding Wheeled Stand. Its large all-terrain wheels enable easy manoeuvrability, effortlessly passing through standard width internal doors for convenient jobsite use. Safety is prioritised with a powerful 1,650w motor featuring thermal overload protection and a paddle-style emergency stop. Improved cut visibility with the blade guard and a Quick Release Riving Knife design ensure safer cutting experiences. The redesigned motor housing facilitates better dust extraction and simplified maintenance.

119-0006 Features:

• More portable, powerful, accurate and easier to adjust and calibrate.
• Improved accuracy for every cut type and ease of set-up
• Dual Rack & pinion parallel fence for precision rip cuts.
• Quick Release Riving Knife with offset angle and lateral adjustment.
• Crosscut Sled Insert – industry standard accessory channel profile for Mitre Guide
• Geared micro-adjustable bevel angle selector 45° Range (+ and - 2°)
• Metal roll cage chassis with integrated carry handles.
• Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees.
• New blade guard. easier adjustment and enhanced cut visibility & dust extraction.
• More compact and portable wheeled support – rolls through standard width door.
• ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
• Intelligent Motor Overload Protection.
• Paddle Style Emergency Stop Switch provides increased user safety.
• Reduced pack and storage size.
• Multi-Material cutting technology. One saw, one blade, cuts all.*
• More powerful, 1,650W hi-torque motor
• 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles.
• Increased table-top size.
• 4m durable cable with the built-in storage cable holder.
• All tools and accessories stored on tool frame.
• Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 28T blade included.
• Evolution wheeled stand: Quick assembly/disassembly with 4 mounting bolts, wide stance for balanced top-loading, adjustable feet for uneven surfaces, foot-activated lock, easily rolls through standard 32" door frames.

119-0006 Specification:

• Motor (240V 50Hz): 1,650W
• Speed No Load: 2,500rpm
• Max. Bevel (Left): 45° (-2 to 47° with stop washers removed)
• Blade Dia.: 255mm
• No. of Teeth: 24
• Bore: 25.4mm
• Kerf: 2mm
• Max. Depth of Cut (0°): 85mm
• Max. Depth of Cut (45°): 58mm
• Mild Steel Plate
• (Max. Thickness): 6mm
• Rip Capacity - Right of the blade 650mm
• Rip Capacity - Left of the blade 371mm
• Riving Knife Thickness 1.8mm
• Product Dimensions: (With Leg Assembly) 1050mm x 750mm x 940mm
• Product Dimensions: (Without Leg Assembly) 880 x 730 x 330mm
• Max. Table Dimensions 1200mm x 640mm
• Min. Table Dimensions 745mm x 640mm
• Packaging Dimensions: 910mm x 370mm x 750mm
• Storage Dimensions: H 1110mm x D 660mm x W 825mm
• Product Weight: 21.2 kg
• Packaged Weight: 33.5 kg
• Sound Pressure Level LPA: 93,2dB(A) K:3dB(A)
• Sound Power Level LWA: 106,2dB(A) K=3 dB(A)

What is included:

• 1x 119-0001 R255TBLX 255mm Portable Jobsite Table Saw 1650W 240V
• 1x 119-0050 Table Saw Stand
• 1x 28T Multi-Material TCT Blade
• 1x Blade Guard with Dust Extraction Port
• 1x Built In Crosscut Sled
• 1x Dust Extraction 90° Elbow
• 1x Mitre Gauge
• 1x Adjustable Rip Fence
• 1x Push Stick
• 1x Riving Knife
• 1x Blade Changing Spanners
• 1x Folding Tubular Steel Frame
• 1x Adjustable Pad Feet
• 2x All Terrain Wheels
