SIP 05795 Pro 200A AC/DC TIG/ARC Welder with Pulse

Description

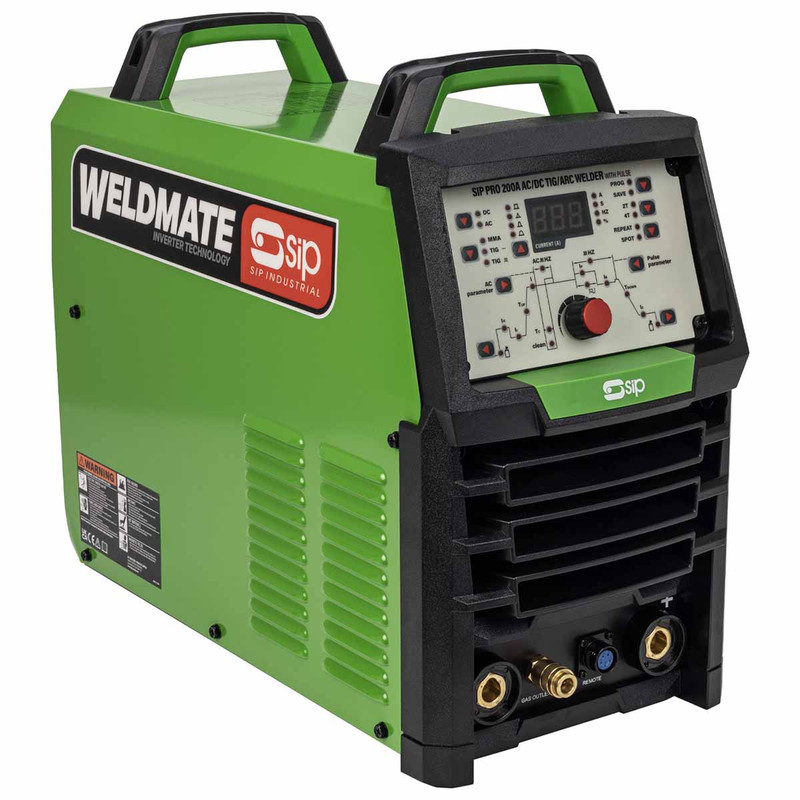

SIP 05795 Pro 200A AC/DC TIG/ARC Welder with Pulse

The SIP WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse stands as a versatile dual-process welder tailored for professional applications. With its AC/DC TIG capability, it excels in delivering exceptional performance in demanding environments. Equipped with TIG Pulse functionality, a multi-stage pulse parameter program, and four AC waveforms, this welder offers adaptable settings and high duty cycles to cater to specific user requirements, ensuring precise welds with enhanced control. Additionally, the optional 05727 SIP Foot Pedal Control, available separately, provides hands-free welding capabilities, allowing skilled professionals greater control over the weld pool and welding process. Ideal for professional fabrication workshops and well-suited for engineering and garage settings, it accommodates various materials including aluminium, stainless steel, mild steel, brass, and copper, making it a valuable asset in diverse welding applications.

05795 Features:

• AC/DC TIG welding capability enhances versatility for professional applications, with AC current ideal for aluminium welding and DC current suitable for mild steel, stainless steel, brass, and copper.
• Dual TIG and ARC processes offer flexibility at high duty cycles, catering to efficient application use across various professional settings.
• TIG pulse facility ensures smoother and more controlled welds with enhanced stability, reducing distortion and achieving stronger, more durable welds.
• Multi-stage pulse parameter adjustment allows for greater welding arc control, including customizable settings such as slope-up, slope-down, pre-flow, post-flow, and AC balance.
• 4 AC waveforms provide superior control for different material types, offering options like square, triangular, trapezoidal, and sine for optimal welding results.
• LED display with infinitely variable dial and intuitive control panel ensures easy-to-use settings for precise control of welding functions.
• Programmable memory storage enables easy recall of specific welding jobs, allowing users to select and save up to 10 different favourites using the control panel settings.
• Durable steel casing with heavy-duty carry handles ensures long-term use and mobility, while accessories like the 4mtr TIG torch, electrode holder with lead, earth clamp, gas hose, and hose clamps are included for added convenience.
• SIP Foot Pedal Control, sold separately, offers hands-free welding for skilled professional users, enhancing control over the welding process.

05795 Specification:

• Input Supply: 230v (16A) (not supplied)
• Output Current (TIG AC/DC): 5A - 200A (AC) / 5A - 200A (DC)
• Output Current (MMA DC): 30A - 160A (DC)
• TIG AC/DC
• Duty Cycle @ 40°C / 10min 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC)
• 160A @ 25% / 110A @ 60% / 90A @ 100% (MMA)
• Duty Cycle @ 20°C / 10min 200A @ 60% / 150A @ 100% (TIG AC/DC)
• 160A @ 60% / 130A @ 100% (MMA)
• Protection: IP21S/H
• Net Weight: 15.90kg
• Gross Weight: 17.50kg
• Product Dimensions: 395(H) x 480(W) x 225mm(D)
• Packaged Dimensions: 440(H) x 560(W) x 330mm(D)
• ITEM NO. 05727
• Cable Length: 4.8mtr
• Net Weight: 2.30kg
• Gross Weight: 2.70kg
• Product Dimensions: 158(H) x 280(W) x 138mm(D)
• Packaged Dimensions: 208(H) x 343(W) x 150mm(D)

What is included:

• 1x SIP 05795 Pro 200A AC/DC TIG/ARC Welder with Pulse
