Product Description

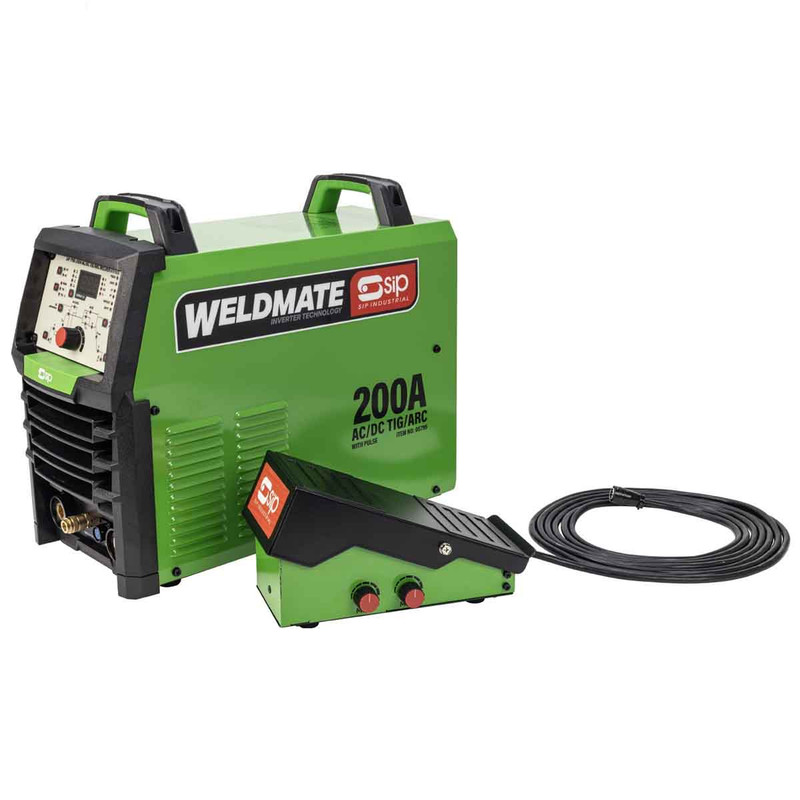

SIP 05795PEDAL PRO 200A AC/DC TIG/ARC Welder with Pulse Package
The SIP PRO 200A AC/DC TIG/ARC Welder with Pulse is a dual process welder with AC/DC TIG capability for professional applications. This powerful inverter welder can be used for both TIG and ARC welding processes for outstanding versatility in demanding environments.
Featuring TIG Pulse functionality, a multi-stage pulse parameter program and 4 AC waveforms, the adaptable settings and high duty cycles are designed to meet specific user needs and ensure greater control of precision welds.
The 05727 SIP Foot Pedal Control offers hands-free welding for skilled professionals, allowing greater control of the weld pool and welding process.
05795PEDAL Features:
- AC/DC welding for greater versatility in professional applications
- Dual TIG and ARC processes for flexibility at high duty cycles
- TIG Pulse facility for a smoother and more controlled weld
- Multi-stage pulse parameter adjustment for greater welding arc control
- 4 AC waveforms for superior welding control with different material types
- Suitable for aluminium, stainless steel, mild steels, brass and copper
05795PEDAL Specification:
- Input Supply: 230v (16A) (not supplied)
- Output Current (TIG AC/DC): 5A - 200A (AC) / 5A - 200A (DC)
- Output Current (MMA DC): 30A - 160A (DC)
- TIG AC/DC
- Duty Cycle @ 40°C / 10min 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC)
- 160A @ 25% / 110A @ 60% / 90A @ 100% (MMA)
- Duty Cycle @ 20°C / 10min 200A @ 60% / 150A @ 100% (TIG AC/DC)
- 160A @ 60% / 130A @ 100% (MMA)
- Protection: IP21S/H
- Net Weight: 15.90kg
- Gross Weight: 17.50kg
- Product Dimensions: 395(H) x 480(W) x 225mm(D)
- Packaged Dimensions: 440(H) x 560(W) x 330mm(D)
- Cable Length: 4.8mtr
- Net Weight: 2.30kg
- Gross Weight: 2.70kg
- Product Dimensions: 158(H) x 280(W) x 138mm(D)
- Packaged Dimensions: 208(H) x 343(W) x 150mm(D)
What is included:
- 1x 05795PEDAL PRO 200A AC/DC TIG/ARC Welder with Pulse Package
- 1x 4mtr TIG torch
- 1x Electrode holder with lead
- 1x Earth clamp
- 1x Gas hose
- 1x Hose clamps
