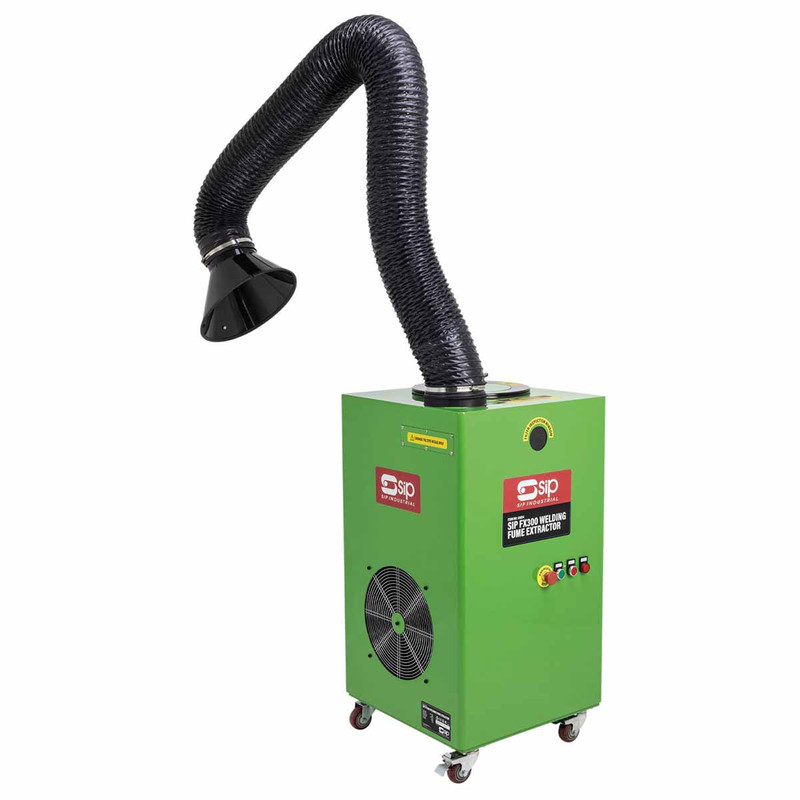

Sip 05814 FX300 Welding Fume Extractor

Description

Sip 05814 FX300 Welding Fume Extractor

The SIP 05814 FX300 Welding Fume Extractor is a robust and mobile solution designed for capturing high concentrations of welding fumes in large fabrication workshops, welding stations, and automotive environments. It features a comprehensive 3-stage filtration system with a multi-layer spark arrestor to capture larger particles, a high-efficiency particulate air (H13) filter for particles down to 0.3 microns, and an activated carbon cotton filter to eliminate fume odours. With a powerful 1.5 kW brushless induction motor, the FX300 delivers a high flow rate of 2500 m³/hr, ensuring effective fume extraction. The extractor is equipped with a 2-meter flexible arm suction hose for precise fume capture, and it operates via a 5-meter mains cable from a standard 13A supply. The unit also includes an illuminated control panel with a compliant isolator switch, and lockout/tagout (LOTO) features for safety during maintenance. Its lockable castors provide easy mobility, while its compact design helps conserve the workspace.

05814 Features:

• Advanced Filtration System: This system features 3-stage H13 filtration, including a multi-layer spark arrestor, a high-efficiency particulate air (H13) filter, and an activated carbon cotton filter for comprehensive fume and dust removal.
• High Efficiency: Filters 99.97% of sparks, spatter, dust, and harmful gases.
• Powerful Motor: It is equipped with a 1.5 kW brushless induction motor for reliable and consistent performance, with a high flow rate of 2500 m³/hr.
• Flexible Suction Hose: 2-meter heavy-duty, steel-reinforced suction hose for efficient fume capture.
• Ease of Use: It includes an easy-to-use illuminated control panel and operates from a 13A supply. It features lockout/tagout (LOTO) for safety during maintenance.
• Mobility and Stability: Lockable castors for easy movement and secure positioning. Compact design to minimise workspace footprint.
• Extended Cable Length: 5-meter mains cable for added flexibility.
• Low Maintenance: Brushless motor and robust design for low maintenance and high durability.

05814 Specification:

• Input Supply: 230V (13A)
• Motor Power: 1.5 kW (2 HP)
• Max. Flow Rate: 2500 m³/hr
• Filtration Level: 99.97%
• Hose Length: 2 meters
• Noise Level: 75 dB(A)
• Net Weight: 70 kg
• Gross Weight: 84 kg
• Product Dimensions: 2100 mm (H) x 550 mm (W) x 550 mm (D)
• Packaged Dimensions: P1- 980 mm (H) x 575 mm (W) x 580 mm (D), P2 - 1165 mm (H) x 340 mm (W) x 550 mm (D)

What is included:

• 1x Sip 05814 FX300 Welding Fume Extractor
