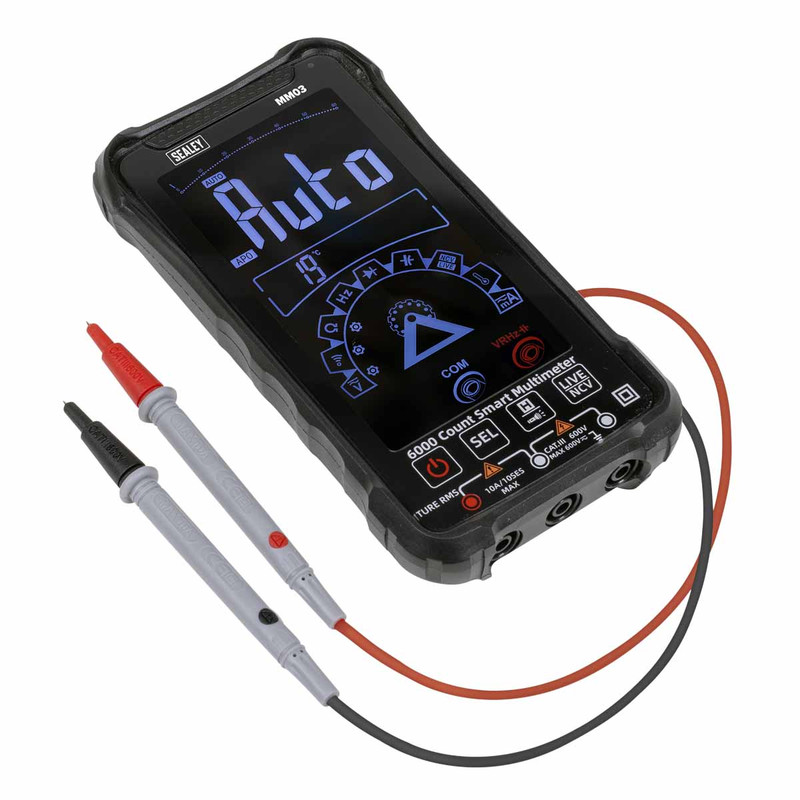

Sealey MM03 Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function

Description

Sealey MM03 Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function

Intelligent multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity. Features temperature measurement capability, data-hold and auto-power-off function. Non-contact voltage detection (NCVD) enables one-handed use. 6000 Count high precision measurements. Live test feature can test for live feeds with a single probe. Large LCD touchscreen and LED worklight. Rechargeable, supplied with Type-C USB charging cable. Includes probes and thermocouple probe. High-impact case. Supplied in a storage case. Conforms to EN 61010-2 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.

MM03 Features:

• Large lcd touchscreen – that is easy to navigate.
• intelligent - the multimeter automatically detects and selects the required test function, ac/dc, voltage/current, resistance and continuity.
• versatile features - includes temperature measurement capability, data-hold and auto-power-off function.
• non-contact voltage detection (ncvd) – enables one-handed use.
• 6000 count – high precision measurements.
• live test feature - a single probe can test for live feeds.
• led work light – enhances visibility in low light conditions.
• rechargable – supplied with type-c usb charging cable.
• includes – probes and thermocouple probe.
• heavey duty – high-impact case.
• supplied in a storage case – for secure storage and portability solutions.
• confirms to en 61010-2 catiii 600v safety requirments - for electrical equipment for measurement, control and laboratory use.

MM03 Specification:

• Model No MM03
• Brand: Sealey
• Nett Weight: 0.317kg
• DC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
• AC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
• DC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
• AC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)
• Resistance (Accuracy): Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
• Resistance: Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)
• Capacitance (Accuracy): Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
• Frequency (Accuracy): Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
• Temperature (Accuracy): Range: -200°C to 1200°C -328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)
• Auto Range: YES
• Auto Scan: V/R/CONT
• Duty Cycle: NO
• Continuity Audible: YES
• Diode Test: YES
• Backlit/Torch: YES
• Transistor Test: NO
• Hi-Impact Rubber Case: YES
• Digits x Height: 4 x 23mm
• Low Battery Indicator: YES
• Battery: Rechargeable 3.7V Li-ion
• Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test
• Size: 158 x 82 x 23mm
• Nett Weight: 0.317kg
• Conformity: EN 61010-2

What is included:

• 1x Sealey MM03 Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function
