Product Description

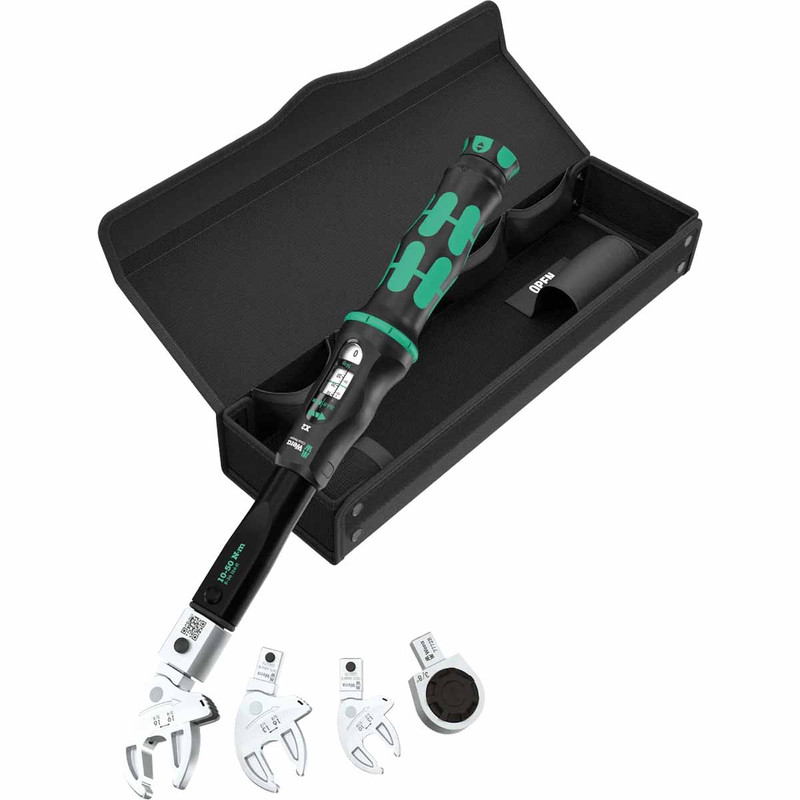

Wera 05136062001 9558 Torque Set for Pipe Fittings 10-50 Nm (5 Pieces)

The Wera 05136062001 9558 Torque Set is designed for professional and accurate tightening of pipe fittings in accordance with manufacturer torque specifications. It combines the adjustable Click-Torque X 2 torque wrench with three self-setting Joker insert spanners covering 10-19mm and a reversible 3/8" ratchet insert, providing a versatile solution for hydraulic, pneumatic and water pipe installations. Supplied in a robust textile box, the set offers precise torque control, quick adjustment and convenient storage for professional installation work.

05136062001 Features:

• 5-piece torque set designed for professional tightening of pipe fittings
• Click-Torque X 2 adjustable torque wrench with a measuring range of 10-50Nm
• Torque accuracy of ±3% in accordance with DIN EN ISO 6789-1:2017-07
• 9 x 12mm mounting accepts compatible interchangeable insert tools
• Includes three self-setting Joker 7870 insert spanners covering 10-19mm
• Self-setting parallel jaws automatically adjust to the required fastener size
• Mechanical ratchet functionality allows fast and continuous screwdriving without removing the spanner
• 30° return angle enables efficient operation in confined working areas
• Includes reversible insert ratchet for 3/8" square-drive sockets and connectors
• Easy-to-read main and fine scales allow quick and accurate torque adjustment
• Audible and tactile clicks indicate when the selected torque value has been reached
• Maximum loosening torque of up to 50Nm when configured accordingly
• Laser-engraved QR codes provide access to Wera Torque Advisor for determining the correct torque setting when using insert tools
• Supplied in a robust textile box for secure storage and transport

05136062001 Specification:

• Product Type: Torque Wrench and Insert Tool Set
• Number of Pieces: 5
• Torque Range: 10-50Nm
• Torque Accuracy: ±3%
• Torque Standard: DIN EN ISO 6789-1:2017-07
• Insert Tool Mounting: 9 x 12mm
• Spanner Range: 10-19mm
• Imperial Spanner Range: 7/16" - 3/4"
• Spanner Return Angle: 30°
• Ratchet Drive: 3/8"
• Storage: Textile Box

What is included:

• 1x Wera Click-Torque X 2 Torque Wrench 9 x 12mm 10-50Nm
• 1x Wera 7870 Joker S Self-Setting Insert Spanner 10-13mm / 7/16" - 1/2"
• 1x Wera 7870 Joker M Self-Setting Insert Spanner 13-16mm / 1/2" - 5/8"
• 1x Wera 7870 Joker L Self-Setting Insert Spanner 16-19mm / 5/8" - 3/4"
• 1x Wera 7772 B Reversible Ratchet Insert 9 x 12mm to 3/8"
• 1x Wera Textile Storage Box
