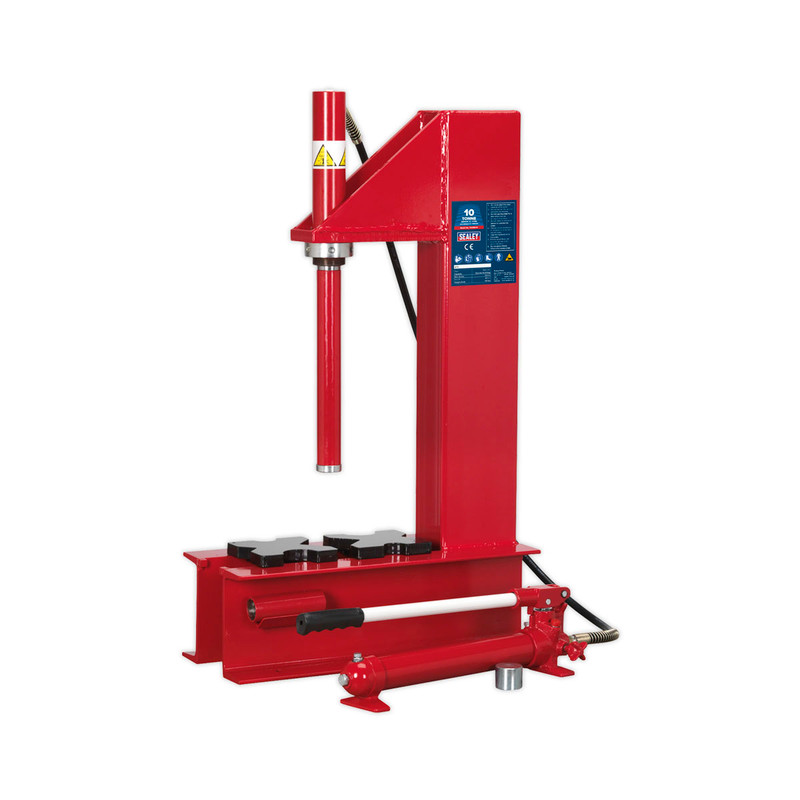

Sealey YC10B Hydraulic Press 10tonne Bench 'C' Type

Description

Sealey YC10B Hydraulic Press 10tonne Bench 'C' Type

High quality industrial press ideal for pressing, bending and extruding. Detachable pump and ram allow hydraulics to be used for other purposes when press is not in use. The C-frame design provides easy-access to die from three sides, as well as permitting loading and unloading of wide and irregular workpieces. Supplied with flat pressing plates and extension tubes.

YC10B Features:

YC10B Specification:

• Model No YC10B
• Bench or Floor Mounting: Bench
• Brand: Sealey
• Capacity: 10tonne
• Gauge Included: No
• Lateral Ram Travel: n/a
• Maximum Height - Ram to Table: 458mm
• Minimum Height - Ram to Table: 158mm
• Nett Weight: 64.5kg
• Optional Accessories: n/a
• Overall Height: 966mm
• Ram Diameter: 40mm
• Ram Stroke: 150mm
• Table Aperture: 100mm
• Type: Hydraulic
• Working Table Depth: 230mm
• Working Table Width: 400mm

What is included:

• 1 x Hydraulic Press 10tonne Bench 'C' Type
