Product Description

Important!

Please note this machine only accepts Makita 40V Max XGT batteries ALL other Makita batteries are NOT compatible.

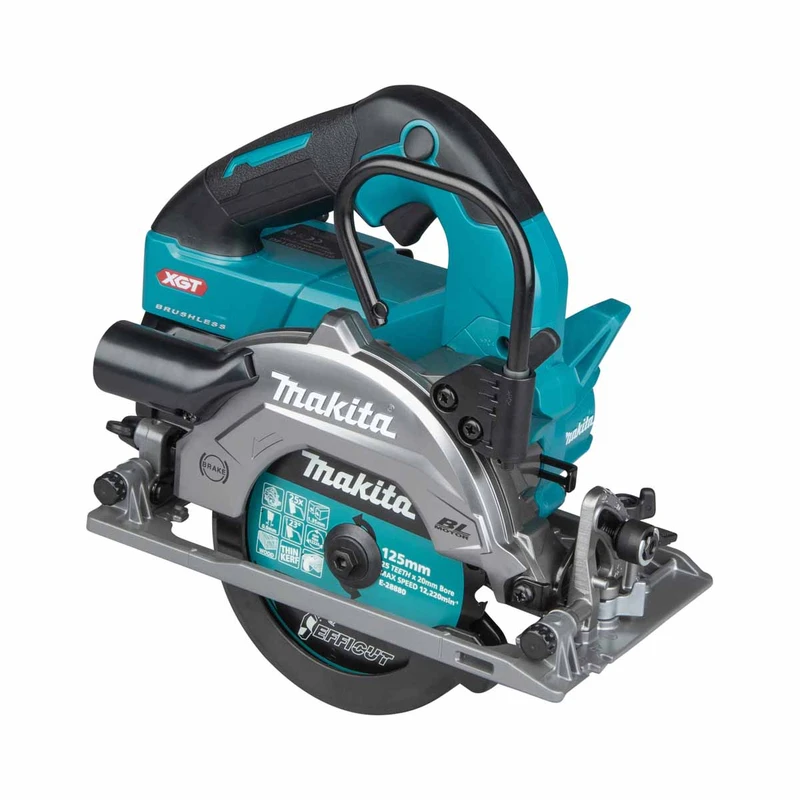

Makita HS014GZ 40V Max XGT 125 mm Brushless Circular Saw (Body Only)

The Makita HS014GZ is a compact and powerful 40V Max XGT brushless circular saw designed for fast, accurate cutting in wood. Its 125mm blade delivers a maximum cutting depth of 47mm at 90°, while left and right bevel capability and flush cutting functionality provide increased versatility across professional applications. The saw also features AFT safety technology, AWS compatibility, soft start, XPT protection and an electric brake for enhanced performance and control.

HS014GZ Features:

• Compact and lightweight design combined with powerful 40V Max XGT performance
• Brushless motor provides efficient, maintenance-free and long-lasting performance
• 125mm Efficut saw blade provides fast and efficient cutting performance
• Maximum cutting depth of 47mm at 90°
• Flush cutting capability provides increased versatility for specialist cutting applications
• Left bevel cutting range of up to 15° and right bevel cutting range of up to 45°
• Active Feedback sensing Technology (AFT) stops the motor if blade rotation suddenly stops
• Auto-start Wireless System (AWS) ready for wireless connection to compatible dust extractors
• Soft start suppresses start-up reaction for improved control and cutting accuracy
• eXtreme Protection Technology (XPT) provides improved dust and water resistance for operation in harsh conditions
• Electric brake provides increased productivity and operator safety
• Anti-restart function helps minimise accidental start-up
• Built-in job light helps illuminate the cutting area
• Compatible with a guide rail adapter for accurate guided cutting

HS014GZ Specification:

• Nominal Battery Voltage: 40 V
• Battery Platform: XGT
• Battery Chemistry: Li-ion
• Motor: Brushless
• No Load Speed: 6,400 min¹
• Blade Diameter: 125 mm
• Bore Size: 20 mm
• Max. Cutting Depth at 90°: 47 mm
• Max. Cutting Depth at 45°: 30 mm
• Max. Bevel Range Left: 0 - 15°
• Max. Bevel Range Right: 0 - 45°
• Sound Power Level (LWA): 102 dB(A)
• Sound Pressure Level (LpA): 94 dB(A)
• Noise Uncertainty (K Factor): 3 dB(A)
• Vibration Level, Cutting Wood: 1.0 m/s²
• Vibration Uncertainty (K Factor), Cutting Wood: 1.5 m/s²
• Product Dimensions (L x W x H): 264 x 203 x 246 mm
• Tool Weight with Battery: 3.0 - 3.3 kg
• Product Net Weight: 2.3 kg
• Barcode: 0197050020178

What is Included:

• 1x Makita HS014GZ 40V Max XGT 125 mm Brushless Circular Saw (Body Only)
• 1x Makita E-28880 Efficut Circular Saw Blade 125mm x 20mm 25T
• 1x Makita 194202-9 Dust Nozzle Set
• 1x Makita 783217-7 Hex Wrench 5mm
