Product Description

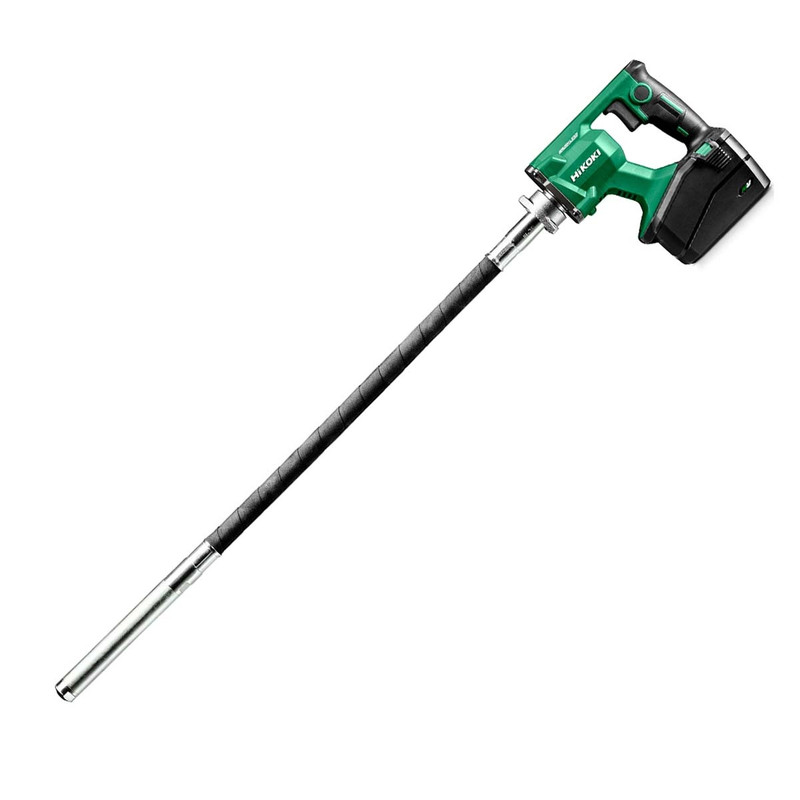

HiKOKI UV3628DAW4Z 36V Brushless Concrete Vibrator (Body Only)

The HiKOKI UV3628DAW4Z 36V MultiVolt Cordless Concrete Vibrator delivers powerful, high-frequency vibration for fast and effective compaction of freshly poured concrete. Its brushless motor provides performance comparable to a corded machine, while the 825mm flexible shaft and 28mm vibration head make it suitable for foundations, columns, walls, floors and other concrete construction applications.

Normal and Power operating modes allow performance to be adjusted to the application, while constant speed control helps maintain consistent vibration under load. The tool and battery areas are also protected against concrete ingress, helping improve durability and reduce cleaning requirements on demanding jobsites.

UV3628DAW4Z Features:

• Powerful 36V brushless motor provides high-performance cordless concrete compaction
• High vibration frequency provides fast and effective concrete compaction
• Two operating modes – Normal and Power – allow performance to be matched to the application
• Normal mode operates at 12,000 vibrations per minute
• Power mode delivers up to 15,200 vibrations per minute
• Up to 60 minutes runtime per charge when used with a BSL36B18 MultiVolt battery
• 825mm flexible shaft provides good reach into freshly poured concrete
• 28mm diameter vibration head is suitable for a wide range of concrete applications
• Switch-on lock enables continuous operation without holding the trigger, reducing fatigue
• Constant speed control helps maintain consistent performance
• Battery and tool are protected against concrete ingress for improved durability and easier cleaning
• Compatible with HiKOKI 36V MultiVolt batteries

UV3628DAW4Z Specification:

• Voltage: 36V
• Battery platform: HiKOKI MultiVolt
• Motor: Brushless
• Vibration frequency – Normal mode: 12,000/min
• Vibration frequency – Power mode: 15,200/min
• Maximum vibration frequency: 15,200/min
• Flexible shaft length: 825mm
• Vibration head diameter: 28mm
• Vibration head dimensions: 28 × 187mm
• Tool length: 1,045mm
• Tool width: 109mm
• Tool height: 224mm
• Weight without battery: 3.2kg
• Sound pressure level: 85dB(A)
• Sound power level: 96dB(A)

What is Included:

• 1x HiKOKI UV3628DAW4Z 36V Brushless Concrete Vibrator
