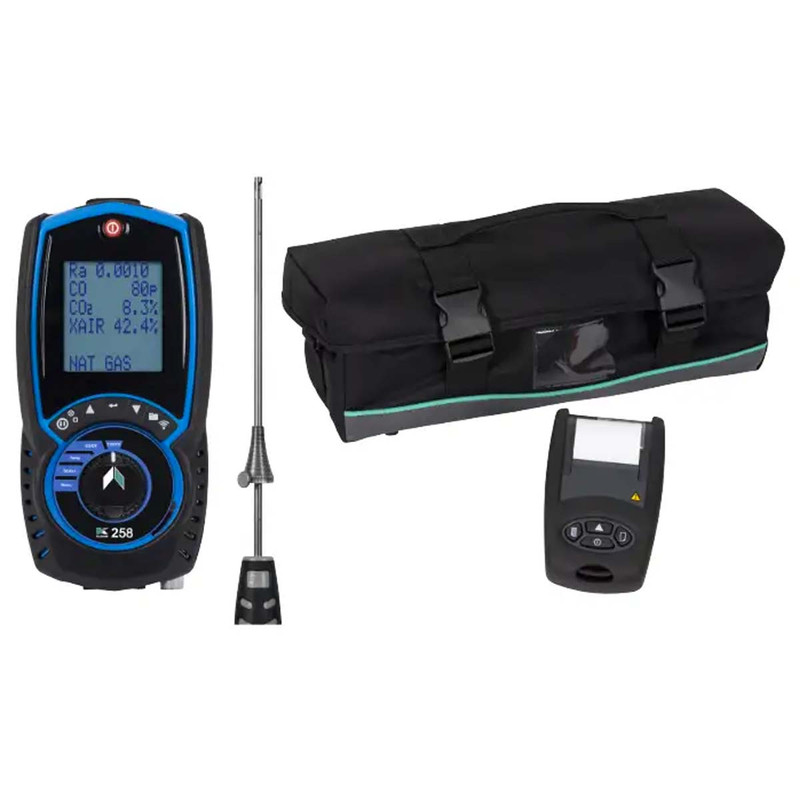

Kane 258 Combustion Flue Gas Analyser Kit
The Kane 258 Combustion Flue Gas Analyser is a versatile tool designed for installing and servicing domestic oil and gas appliances. It offers essential features like measuring O2 and CO levels, calculating excess air, CO/CO2 ratio, and combustion efficiency, with the added capability to handle up to 20% H2 blend. Its innovative purge pump protection ensures reliability, while wireless connectivity allows for easy data transfer. With USB charging and a 10-year warranty, it's a user-friendly instrument compatible with various fuels, making it an ideal choice for combustion performance and efficiency checks. Comes supplied bundled with a probe, Kane IRP-3 Infrared Printer, USB charger, quick reference guide, analyser calibration certificate, and a convenient carry bag.
KANE258 Application:
- Install & service domestic oil & gas appliances
- Combustion performance checks
- Combustion efficiency checks
KANE258 Features:
- Entry level FGA instrument
- Measures O2 (0-21%)
- Measures C0 (0-2,000ppm)
- Calculates excess air
- Calculates CO & CO2 ratio
- Calculates combustion efficiency & differential temperature
- H2 ready - up to 20% blend
- Innovative purge pump protection from over-range
- Wireless connectivity included
- Data hold, log & print with option for additional IR printer
- Easy to use rotary dial
- Compatible with various of fuels
- USB charging capabilities
- 10 year warranty provided by Kane
KANE258 Specification:
- Hose Length: 3m
- Power Supply: 4x AA Batteries
- Handset Dimensions: 218 x 105 x 47 mm
- Probe Dimensions: 300mm long (inc. handle) x 6mm dia. with 265mm long stainless steel shaft
- Weight: 1kg
- Fuel Types: Natural Gas; Butane; LPG; Light oil; Wood pellets; Propane
What is included:
- 1x Kane 258 Combustion Flue Gas Analyser
- 1x Probe
- 1x Kane IRP-3 Infrared Printer
- 1x USB charger
- 1x Quick reference guide
- 1x Analyser calibration certificate
- 1x Carry bag
