Product Description

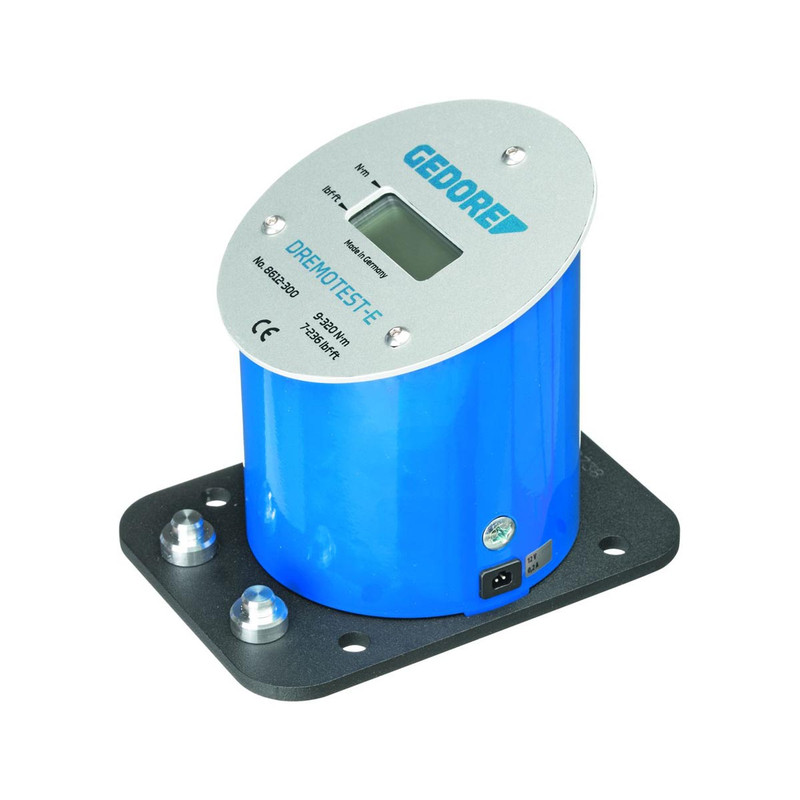

Gedore 1856111 8612-300 Electronic torque tester DREMOTEST E 0.2-3150Nm

Easy to operate, electronic torque tester with integrated torque transducer (DMS), 5 models in the range from 0.2 to 3150 N·m, With fixed hexagon female drive 1/4", 10, 17, 36, 46 mm or 1.1/2" square drive adaptor (model dependent), With 1/4", 3/8", 1/2", 3/4", 1" square drive adaptor or bit adaptor (model dependent), High measurement accuracy: +/- 1 % tolerance of reading, +/- 1 digit, Break-Point-measurement (1st peak), Autoreset, Can be switched from N·m to lbf·ft, Serial interface RS232, Optionally available: adaptor for cigarette lighter socket (12 V), no. 8612-390, Optionally available: Car adaptor for 12 Volt power supply (No. 8612-390), software for plausibility check (Code 2834391), Optionally available: Car adaptor for 12 Volt power supply (No. 8612-390), software for plausibility check (Code 2834391), Scope of delivery:, Electronic torque tester, RS232 Cable, Power supply unit with EURO plug (UK, US, AUS-adaptor on request), 100 - 240 V, 50 - 60 Hz, max. 500 mA (note type plate), 2 socket wrench inserts (size and drive depending on model), Adaptor for No. 8612-3150, Operating instructions, Packaging, Test certificate, Test certificate

1856111 Specification:

• Total length [mm] : 150 mm
• Total width [mm] : 118 mm
• Total height [mm] : 126 mm
• Drive connector hexagon female (metric) : 17,0
• Torque (min.) [N·m] : 9 N·m
• Torque (max.) [N·m] : 320 N·m
• Torque (max.) [lbf·ft] : 236 lbf·ft
• Torque range (min./max.) [N·m] : 9 N·m - 320 N·m
• Torque range (min./max.) [lbf·ft] : 7 lbf·ft - 236 lbf·ft
• Resolution : 1,0
• Measurement accuracy : ± 1 Digit
• Interface : RS-232
• Overload protection : 0

What is Included:

• 1x 8612-300 Electronic torque tester DREMOTEST E 0.2-3150Nm
