Product Description

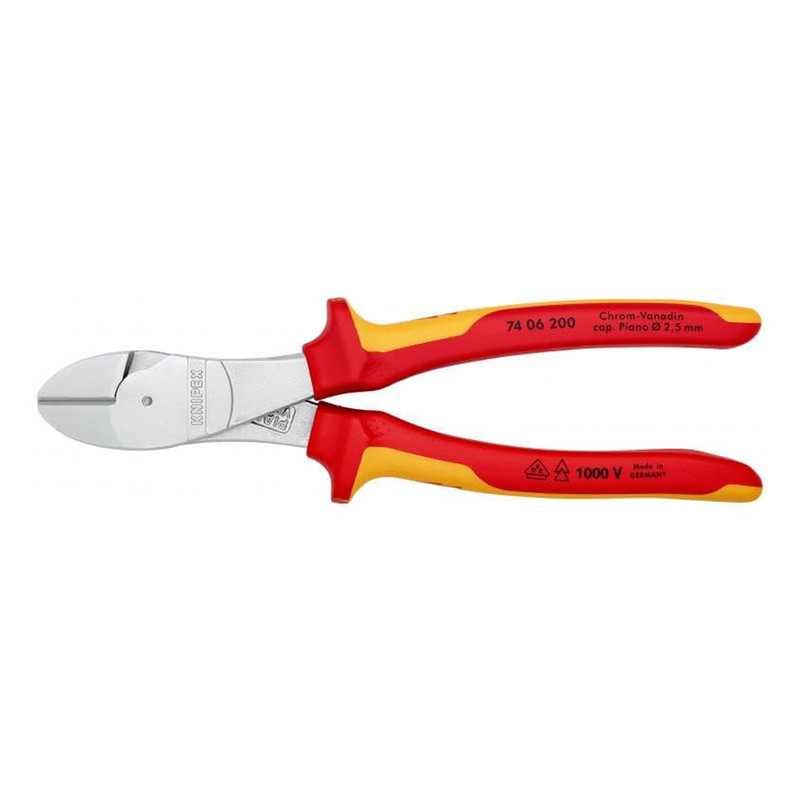

Knipex 74 06 200 VDE High Leverage Diagonal Cutter 200mm

The Knipex 74 06 Series High Leverage Diagonal Cutters are fitted with multi-component grips VDE tested up to 10000V and safe for work up to 1000V. They conform to DIN EN / IEC 60900. With an integrated forged axle for cutting all types of wire including piano wire.

Made from forged vanadium electric steel multi stage oil-hardened. Chrome plated finish. Precision cutting edges additionally induction-hardened approx. 64 HRC. High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio.

74 06 200 Features:

• For very tough, continuous use
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire
• Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

74 06 200 Specification:

• Pliers: chrome-plated
• Head: chrome-plated
• Handles: insulated with multi-component grips, VDE-tested
• Weight: 304 g
• Dimensions: 200 x 56 x 26 mm
• Standard: DIN ISO 5749 DIN EN 60900 IEC 60900
• REACH compliant: does not contain SVHC
• RoHS compliant: not applicable
• Cutting capacities medium hard wire (diameter): Ø 4.2 mm
• Cutting capacities hard wire (diameter): Ø 3.0 mm
• Cutting capacities piano wire (diameter): Ø 2.5 mm
• VDE tested: yes

What is included:

• 1x 74 06 200 VDE High Leverage Diagonal Cutter 200mm
