Product Description

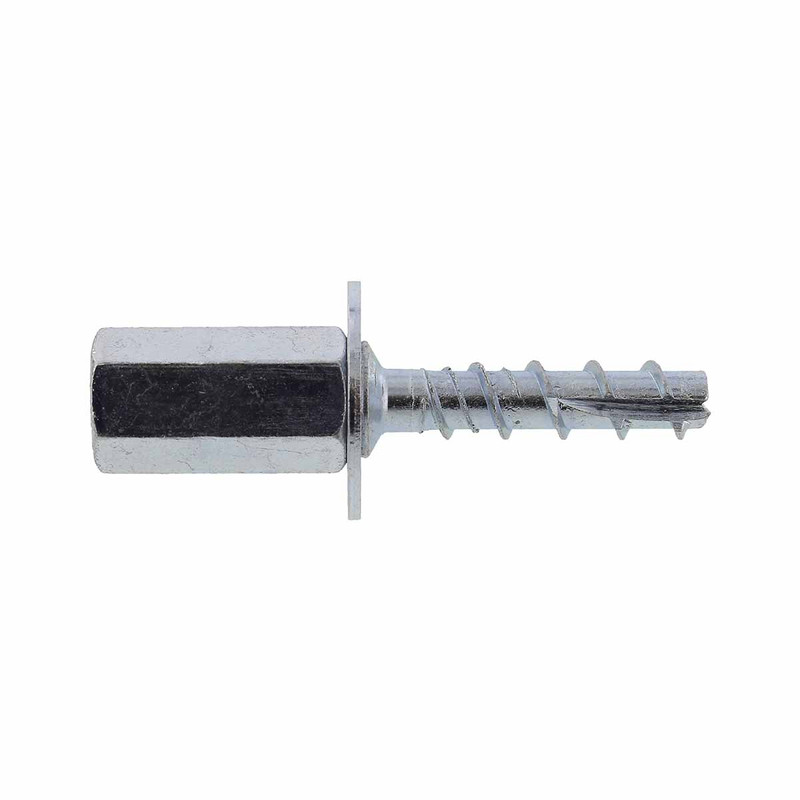

Spit 058679 Tapcon Rod Concrete Screw 6 x 55mm (100 Pack)
The Spit 058679 Tapcon Rod Concrete Screw 6 x 55mm (100 Pack) is a specialist masonry fixing designed for secure overhead threaded rod applications in concrete and pre-cast concrete. As part of the concrete screws category, it offers a faster, cleaner alternative to traditional drop-in anchors, with no setting tool required and a non-expanding design that allows fixings close to edges. Featuring a 6 mm anchor diameter and 55 mm anchor length, this Tapcon ROD screw incorporates a female threaded head with dual M8/M10 thread to accept common threaded rod sizes used for cable tray, duct work, air conditioning units and other suspended services. ETA Option 1 approval confirms reliable performance in cracked and non-cracked concrete, while a fire rating of up to 2 hours and compliance with BS 7671:2018 support use in wiring support systems where non-flammable steel fixings are required. Supplied in a box of 100 concrete screws, it is suitable for solid and hollow concrete slab installations.
58679 Features:
- Self-tapping concrete screw design delivers fast, straightforward installation into cracked and non-cracked concrete
- Female threaded head with dual M8/M10 thread provides flexible connection for threaded rod and hanging systems
- 6 mm anchor diameter with 55 mm anchor length offers secure embedment for overhead rod applications
- ETA Option 1 approved anchor ensures tested performance in cracked and non-cracked concrete substrates
- Fire rated up to 2 hours, supporting compliant installation of wiring systems and building services
- Non-expanding anchor allows fixings to be placed close to edges without risking concrete breakout
- Suitable for hollow concrete slab, maximising application options across modern construction projects
- Ideal for installing cable tray, duct work, air conditioning units, suspended services and support systems
- New patented thread design increases load capacity and speeds up installation compared with drop-in anchors
- Designed as a faster alternative to traditional drop-in anchors for professional overhead threaded rod fixings
Specification
| top_feature: | Self-tapping concrete screw design delivers fast, straightforward installation into cracked and non-cracked concrete |
| top_feature: | Female threaded head with dual M8/M10 thread provides flexible connection for threaded rod and hanging systems |
| top_feature: | 6 mm anchor diameter with 55 mm anchor length offers secure embedment for overhead rod applications |
| top_feature: | ETA Option 1 approved anchor ensures tested performance in cracked and non-cracked concrete substrates |
| top_feature: | Fire rated up to 2 hours, supporting compliant installation of wiring systems and building services |
| top_feature: | Non-expanding anchor allows fixings to be placed close to edges without risking concrete breakout |
| top_feature: | Suitable for hollow concrete slab, maximising application options across modern construction projects |
| FQQ: | In what type of concrete can this Tapcon Rod Concrete Screw be used? |
| FAA: | This screw is suitable for use in both cracked and non-cracked concrete. It is also suitable for use in hollow concrete slabs. |
| FQQ: | What drill bit size and drilling depth are required for installing the Spit 058679 Tapcon Rod Concrete Screw? |
| FAA: | The screw requires a 6mm drill hole diameter. For this 6 x 55mm anchor, a minimum drilling depth of 65mm is specified. |
| FQQ: | What are the key dimensions of the Spit 058679 Tapcon Rod Concrete Screw? |
| FAA: | The anchor diameter is 6mm and the anchor length is 55mm. The nominal embedment depth is 55mm and the clearance diameter is 8mm. |
| FQQ: | What threaded rod sizes are compatible with this Tapcon Rod Concrete Screw? |
| FAA: | The screw has a dual M8/M10 female threaded head. This allows direct suspension of both M8 and M10 threaded rods into concrete. |
| FQQ: | Is the Spit 058679 Tapcon Rod Concrete Screw approved for structural and safety-critical applications? |
| FAA: | Yes, it is ETA Option 1 approved for use in cracked and non-cracked concrete and has C1 seismic and fire approvals. It is described as an ETA-approved, fire-rated concrete anchor for demanding applications. |
| FQQ: | What is the minimum thickness of the concrete base material for this screw? |
| FAA: | The minimum thickness of the base material must be 100mm. This ensures the anchor can achieve its specified embedment and performance. |
| FQQ: | What material and finish does the Spit 058679 Tapcon Rod Concrete Screw have? |
| FAA: | The anchor is made from zinc-coated steel. The base material colour referenced for typical installations is grey concrete. |
| FQQ: | How many screws are supplied in a pack of Spit 058679 Tapcon Rod Concrete Screws? |
| FAA: | This product is supplied in a cardboard box containing 100 screws. The Toolden listing describes it as a 100 pack. |
| Product code: | 058679 |
| Product type: | Tapcon ROD concrete screw |
| Anchor diameter: | 6 mm |
| Anchor length: | 55 mm |
| Thread type: | Dual M8/M10 female thread |
| Substrates: | Cracked and non-cracked concrete, hollow concrete slab |
| Approval: | ETA Option 1 |
| Fire rating: | Up to 2 hours |
| Material: | Zinc coated steel |
| Box quantity: | 100 pcs |
| Included: | 100x Spit Tapcon ROD Concrete Screws 6 x 55mm |
| brand-link-xt: | https://www.toolden.co.uk/brands/paslode/spit-pulsa-nail-guns/ |
| brand-name-xt: | https://cdn11.bigcommerce.com/s-hczpll0y/images/stencil/original/image-manager/v2-spit-brand-8.png |
| Country of Origin: | United Kingdom |
| screwsize: | 6 x 55mm |
| screwqty: | 100 |
| screwdrive: | Hex |
