Product Description

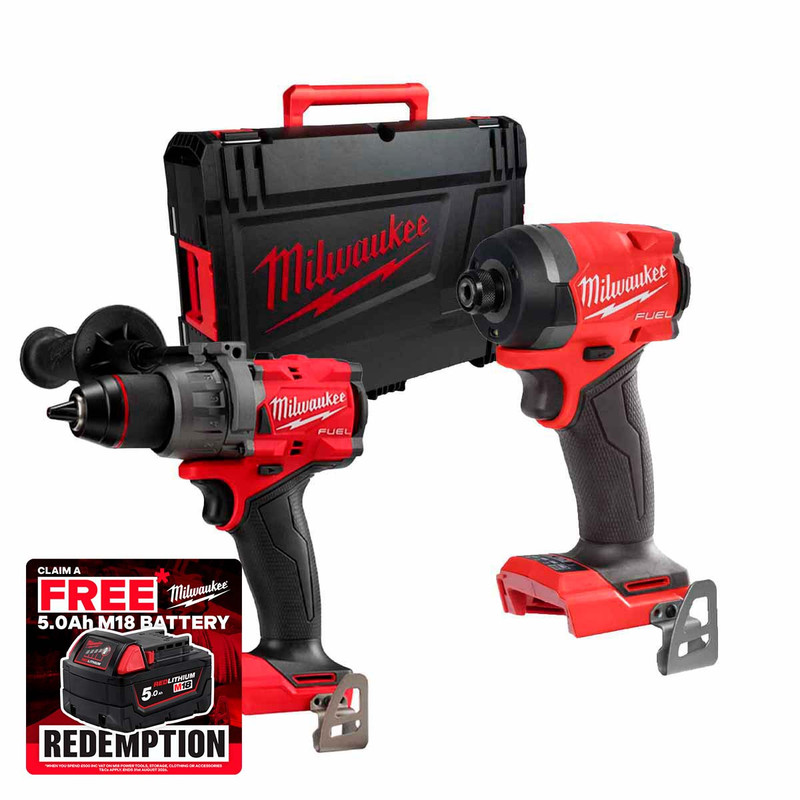

Milwaukee M18 FUEL 18V Combi Drill & Impact Driver Twin Pack with HD Box (Body Only)

The Milwaukee M18 FUEL 18V Combi Drill & Impact Driver Twin Pack combines two of Milwaukee's most powerful cordless tools in one convenient kit. The M18 FPD3 Combi Drill delivers an impressive 158Nm of torque with AUTOSTOP™ kickback protection, making it ideal for heavy-duty drilling and fastening applications in wood, metal and masonry. Its compact 175mm design provides excellent access in confined working areas.

Complementing the drill is the M18 FID3 1/4" Hex Impact Driver, which produces up to 226Nm of fastening torque and features four DRIVE CONTROL modes for precise performance across a wide range of fixing tasks. Both tools are powered by Milwaukee's POWERSTATE™ brushless motor technology and REDLINK PLUS™ intelligence for maximum efficiency, durability and runtime. Supplied in a robust HD Box with custom twin-pack inlay, this body-only kit is the ideal solution for professional tradespeople already invested in the Milwaukee M18™ battery platform.

Features & Specification:

M18 FPD3-0 18V FUEL Combi Drill:

• Milwaukee M18 FPD3-0 18V FUEL™ Combi Drill (Body Only) NEW GEN delivers up to 158 Nm of torque to tackle demanding drilling and driving tasks in masonry, steel and wood
• Extremely compact 175 mm body length allows easier access in confined areas commonly found on construction and installation sites
• POWERSTATE™ brushless motor and REDLINK PLUS™ intelligence optimise power delivery and durability under heavy load
• AUTOSTOP™ control mode helps protect the user by stopping the tool in a bind-up to reduce sudden kickback
• 13 mm all-metal chuck provides fast bit changes and strong bit retention for reliable performance with a wide range of accessories
• Two-speed gearbox with 0-500 rpm and 0-2100 rpm ranges plus up to 33,000 bpm percussion mode supports precise screwdriving and rapid hammer drilling
• Integrated LED work light brightens the work area to improve accuracy when drilling or fixing in low-light conditions
• Battery fuel gauge and individual cell monitoring help maximise runtime and protect M18™ REDLITHIUM™ battery packs
• All-metal reversible belt clip keeps the combi drill close to hand when working at height or moving around site
• Flexible battery system works with all Milwaukee M18™ batteries, allowing tradespeople to use existing packs across their cordless power tools
• Product name: Milwaukee M18 FPD3-0 18V FUEL™ Combi Drill (Body Only) NEW GEN
• Brand: Milwaukee
• Voltage: 18 V
• Motor type: POWERSTATE™ brushless
• Chuck capacity: 13 mm
• Drilling capacity in masonry: 16 mm
• Drilling capacity in steel: 16 mm
• Drilling capacity in wood: 89 mm
• Max torque: 158 Nm
• No-load speed gear 1: 0-500 rpm
• No-load speed gear 2: 0-2100 rpm
• Max percussion rate: 0-33,000 bpm
• Impact rate gear 1: 0-7800 ipm
• Impact rate gear 2: 0-33,000 ipm
• Tool length: 175 mm
• Weight without battery: 1.5 kg
• Battery type: Li-ion
• System compatibility: M18™ REDLITHIUM™
• LED work light: Yes
• AUTOSTOP™ function: Yes
• Sound power level LWA: 106.78 dB(A)
• Sound power level uncertainty: 3 dB(A)
• Sound pressure level LPA: 95.78 dB(A)
• Sound pressure level uncertainty: 3 dB(A)
• Vibration drilling into concrete: 11.3 m/s²
• Vibration drilling into concrete uncertainty: 1.5 m/s²
• Vibration drilling into metal: 1.85 m/s²
• Vibration drilling into metal uncertainty: 1.5 m/s²
• Vibration screw driving: 1.48 m/s²
• Vibration screw driving uncertainty: 1.5 m/s²
• Wood screws without pre-drilling: 16 mm

M18 FID3 18V FUEL 1/4" Hex Impact Driver:

• Milwaukee M18 FID3 18V FUEL 1/4" Hex Impact Driver (Body Only) delivers up to 226 Nm of fastening torque to tackle demanding impact driver tasks in power tools applications.
• POWERSTATE™ brushless motor and REDLINK PLUS™ intelligence provide higher power efficiency under load for consistent performance on site.
• Four-mode DRIVE CONTROL allows users to select precise speed and torque settings, helping to maximise control across delicate, standard, and heavy-duty fastening jobs.
• Mode 1 supports precision work, ideal for smaller fixings and tasks where careful screw placement is essential.
• Mode 2 helps prevent damage to fasteners and materials, reducing the risk of over-tightening in timber, sheet metal, and finished surfaces.
• Mode 3 delivers maximum performance with up to 3,900 rpm and 4,400 ipm for rapid driving of larger screws and fixings.
• Mode 4 automatically adjusts speed, impacts, and torque to optimise the balance between control and productivity in mixed-material applications.
• Extremely compact 113 mm body length improves access in tight or awkward spaces, supporting overhead and confined-area work.
• 1/4" Hex chuck enables quick, secure bit changes, keeping downtime to a minimum between tasks.
• Flexible system works with all Milwaukee M18™ REDLITHIUM™ batteries, allowing users to organise their cordless impact driver set-up around a single battery platform.
• Brand: Milwaukee
• Model: M18 FID3-0
• System compatibility: M18™
• Voltage: 18 V
• Tool type: 1/4" Hex impact driver
• Max fastening torque: 226 Nm
• Max torque: 226 Nm
• Impact rate: 1400 / 3600 / 4400 / 0 - 4400 ipm
• No load speed: 1750 / 3000 / 3900 / 0 - 3900 rpm
• Max bolt diameter: M16
• Tool reception: 1/4" Hex
• Length: 113 mm
• Battery type: Li-ion
• No. of batteries supplied: 0
• Battery pack capacity: No batteries supplied
• Weight with battery pack (EPTA): 1.7 kg (M18 B5)
• Standard equipment: Belt clip and bit holder
• Supplied in: No kit box or bag supplied

What is included:

• 1x M18 FPD3-0 18V FUEL Combi Drill
• 1x M18 FID3 18V FUEL 1/4" Hex Impact Driver
• 1x HD Box with M18 Twin Pack Inlay
• 1x Side handle
• 2x Belt clip
• 1x Bit holder
