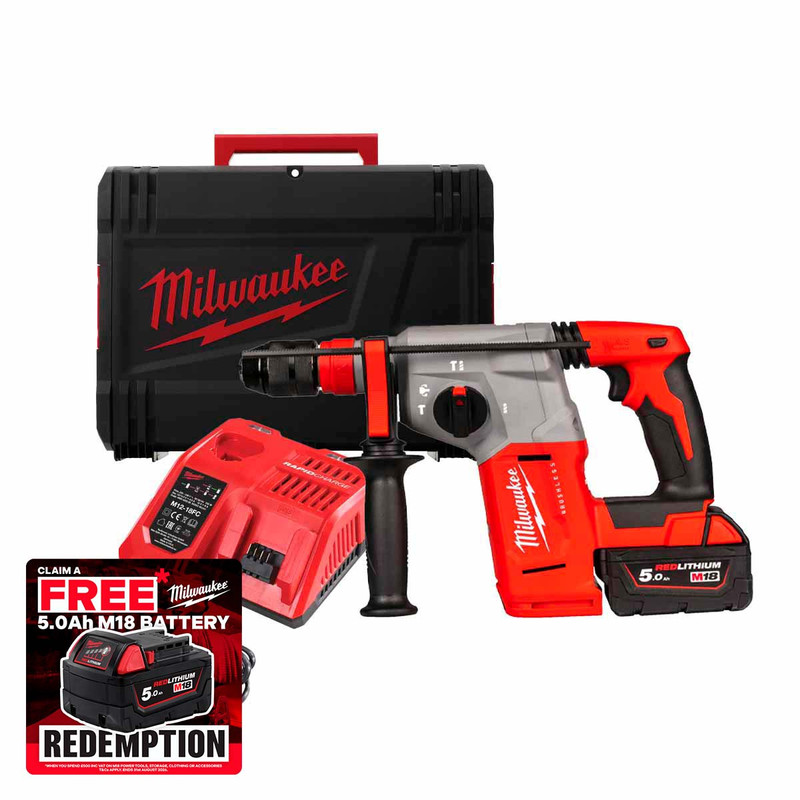

Milwaukee M18 BLHX-501X 18V Brushless 4-Mode SDS+ Hammer with FIXTEC™ Chuck and 1x 5.0Ah Battery
The Milwaukee M18BLHX-501X is a powerful 18V brushless SDS+ hammer delivering 2.3 J of impact energy for fast and efficient drilling and chiselling in concrete, steel and wood. Its compact, ergonomic design and anti-vibration side handle improve comfort during prolonged use, while the FIXTEC™ system allows quick, keyless chuck changes between SDS-Plus and a 13 mm metal chuck. With four operating modes, an all-metal gear case and full compatibility with the M18™ battery platform, it offers excellent versatility, durability and performance for professional applications.
M18BLHX-501X Features:
- Powerful hammer mechanism and the brushless motor design delivers 2.3 J of impact energy
- Compact, ergonomic design for increased end user comfort
- FIXTEC™ system for keyless chuck changing between SDS-Plus and 13 mm metal chuck
- All metal gear case - optimum seating of the gears for enhanced tool life
- 4-mode operation: rotary hammer, hammer only, rotation only and selectable work position of the chisel (variolock) for maximum versatility
- Anti-vibration side handle for lower vibration exposure
- Compatible with M18 CDEX dust extractor
- Brushless motor, REDLITHIUM™ battery pack and REDLINK™ electronic deliver power, run time and durability
- Flexible battery system: works with all MILWAUKEE® M18™ batteries
M18BLHX-501X Specifications:
- Blow energy (J): 2.3
- Blow energy [EPTA][J]: 2.3
- Max. drilling concrete (mm): 26
- Max. drilling steel (mm): 13
- Max. drilling wood (mm): 26
- Max. percussion rate (bpm): 4,900
- No load speed (rpm): 0 - 1,400
- Optimised drilling capacity in concrete [mm]: 6 - 18
- Tool reception: SDS-Plus + Reduced shank 13 mm
- Weight (kg): 2.8
- Weight with battery pack (EPTA) (kg): 3.5 (M18 B5)
- Sound power level (Lwa)(dB(A)): 101.7
- Sound power level uncertainty (dB(A)): 3
- Sound pressure level (Lpa)(dB(A)): 90.7
- Sound pressure level uncertainty (dB(A)): 3
- Vibration chiseling (m/s²): 12.7
- Vibration chiselling uncertainty (m/s²): 1.5
- Vibration drilling (m/s²): 14.9
- Vibration drilling uncertainty [m|s²]: 1.5
What is included:
- 1x Milwaukee M18BLHX-501X 18V Brushless 4-Mode SDS+ Hammer with FIXTEC™ Chuck
- 1x Milwaukee M18 5.0Ah 18V Battery
- 1x HD Kit Box
- 1x M12-M18 Fast Charger
