Product Description

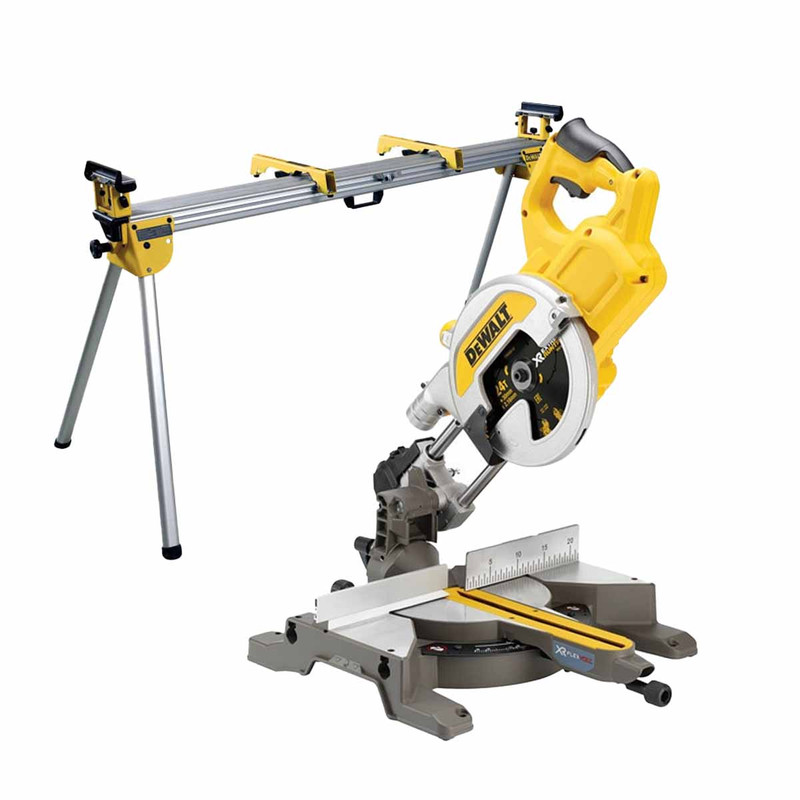

DeWalt DCS777N-XJ 54V XR Flexvolt 216mm Cordless Mitre Saw and DE7023 Universal Extendable Mitre Saw Stand (Body Only)

The DeWalt DCS777N-XJ 54V XR FlexVolt 216mm Mitre Saw delivers powerful cordless performance, making it ideal for demanding site work and precision cutting tasks. Featuring an XPS shadow line cut indicator, high-capacity cutting ability, and a compact rail design, it combines accuracy, portability, and ease of use for professional applications.

Paired with the DE7023 Universal Mitre Saw Stand, this setup provides excellent support for larger workpieces, with an extendable beam and sturdy, portable design. It’s a practical and reliable solution for tradespeople needing flexibility and performance on the job.

Features & Specification:

DCS777N-XJ 54V XR Flexvolt 216mm Cordless Mitre Saw:

• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
• 54V motor provides power and runtime for demanding construction applications
• Built on classic pull saw design improved and updated for the modern user
• Compact internal rail design for huge cutting capacity in a highly transportable format
• New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications
• Sliding left hand fence with measuring scale for improved material support and management
• Dust extraction specifically designed to meet the needs of the professional user in heavy use applications, protection from airborn dust particles minimises health risk over long periods
• Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
• Blade Speed: 6300 rpm
• Blade Bore [Metric]: 30 mm
• Bevel Capacity: 48 deg
• Possible Mitre Angles: 50/50
• Max. Cutting Capacity (90°/90°) [Metric]: 270 x 62 mm
• Battery Chemistry: Li-Ion
• Product Weight [Metric]: 14 Kg
• Max. Cutting Capacity (45°/90°) [Metric]: 189 x 62 mm
• Product Height [Metric]: 590 mm
• Uncertainty K1 (Vibration): 1.5
• Weight (Including Battery) [Metric]: 15 Kg
• Blade Diameter [Metric]: 216 mm
• Power Source: Cordless
• Depth [Metric]: 550 mm
• Max. Cutting Capacity (90°/45°) [Metric]: 173 X 62 mm
• Product Length [Metric]: 490 mm

DE7023 Universal Mitre Saw Stand:

• 1.7 metre beam extends to support up to 3.83 metres for use with large workpieces
• The leg stand has a unique bracket mounting system that takes all DeWalt and most competitive mitre saws.
• The beam can support up to 227Kg providing significant flexibility and capacity
• Quick release spring loaded retractable legs create a secure working platform on the work site.
• A convenient carry handle on the underside of the stand ensures easy single-handed transportation
• Fits the following saws: DW777, DW712, DW717, DW718, DW780.
• Height: 820mm.
• Closed Length: 1.7m.
• Open Length: 3.83m.
• Max. Loading: 182kg.
• Weight: 19.8kg.

What is included:

• 1x DCS777N-XJ 54V XR 216mm Flexvolt Mitre Saw
• 1x DE7023 Universal Mitre Saw Stand
